Summary of Contents for Vivaldi Giove AC5

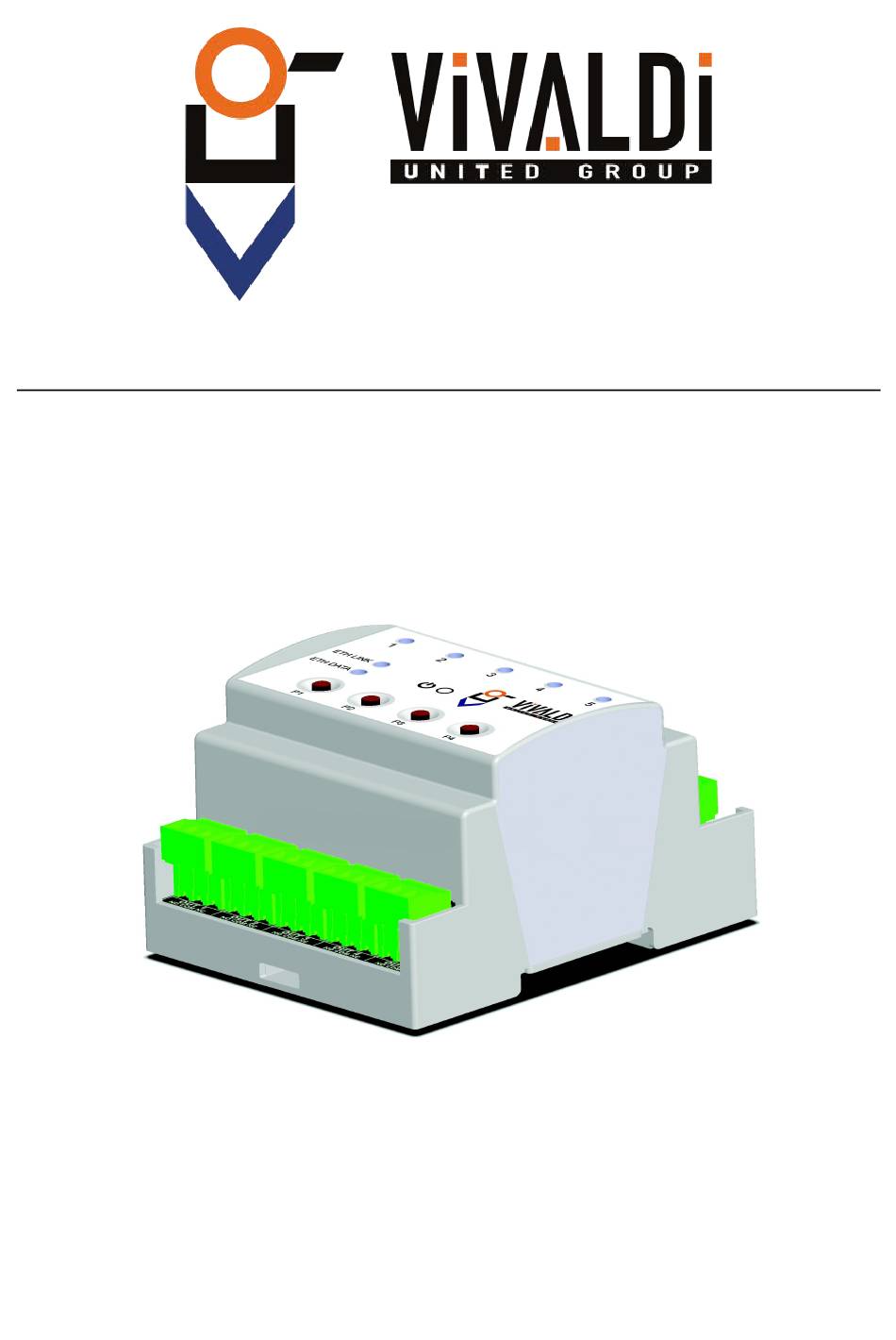

- Page 1 USER MANUAL GIOVE AC5...
-
Page 3: Table Of Contents
4.3.4 Control Contacts......................12 4.3.5 System Configuration.....................13 4.3.6 Restart..........................14 5 Communication Protocols......................15 5.1 Standard Protocol AC5......................15 5.1.1 Port Settings........................15 5.1.2 ASCII String Description....................15 5.1.3 Command Example ASCII String...................15 5.1.4 Response Example ASCII String..................15 5.2 Protocol ModBus RTU......................16 6 Technical Specifications.........................17 GIOVE AC5... -
Page 4: Important Safety Instructions
◦ If the product has been dropped or the chassis has been damaged. ◦ If the product exhibits a distinct change in performance, contact Vivaldi Customer Support. Vivaldi S.R.L. it reserves the right to update this document at any time without notice. GIOVE AC5... -
Page 5: Product Overview
The Giove AC5 is a device for remote management with five contacts in deviation with europlug terminal (Max 5A). By using the RJ45 port is possible to connect the Giove AC5 to the local network, and manage it with Vivaldi iControl or a home automation supervisor. -
Page 6: Specifications
B) RJ45 connector, Ethernet connection 10/100Mbps; C) Europlug connector, | B | A | - | + |, for power supply and RS485 connection with other devices Giove AC5; D) Five multicolour LED matching to the relay, used to display relay status;... -
Page 7: Package Contents
3 PACKAGE CONTENTS • Giove AC5 • Instruction 4 FUNCTIONS AND CONFIGURATIONS 4.1 ELECTRICAL CONNECTION 4.1.1 Connection single module For proper operation of the device you need to feed it through the connector (Figure 1-C) from 12 to 24 Vdc. Attention to the polarity! For communication, connecting the LAN to the RJ45 connector (Figure 1-B), using a CAT5e cable. -
Page 8: Cascading Connection
LAN network cable only to the first device. It will be necessary then to set a unique ID in the devices, from 1 to 5. (See Section 4.2) The power supply must be properly sized for 5 devices, it recommends 1.5A 24Vdc. GIOVE AC5... -
Page 9: User Menu
There are two display types: 1. Active contact, LED is green. Disabled contact, LED is off. 2. Active contact, LED is off. Disabled contact, LED is green. To switch between them, holding the P2 button in standby mode. GIOVE AC5... -
Page 10: Change Communication Mode
4.2.4 Change Communication Mode You can communicate with Giove AC5 with the standard protocol, either Mod-Bus RTU. To switch from one mode to another, you must enter the menu by holding down the P1 button and select, using the P2 and P3 buttons, the LED 4. -
Page 11: Web Server
• Password: admin (default) • 4.3.1 State After entered the credentials will open the Home Page of the Giove AC5 (See Figure 3). Figure 3 On the Status menu you can view the general status of the device. GIOVE AC5... -
Page 12: Configuration Local Ip
4.3.2 Configuration Local IP Figure 4 On this page you can change the network parameters of the Giove AC5. To save the changes made, click on the button Save. GIOVE AC5... -
Page 13: Connection Configuration
4.3.3 Connection Configuration Figure 5 On this page you can configure the port and the communication protocol with the home automation controller. To save the changes made, click on the button Save. GIOVE AC5... -
Page 14: Control Contacts
On this page you can perform manual switching of one of the contacts and request information about the firmware version and hardware of the Giove AC5. In the drop-down list you can select the destination device ID, connected to the first Giove AC5, for each is possible to run the switching of contacts. -
Page 15: System Configuration
4.3.5 System Configuration Figure 7 On this page you can change the name of Giove AC5, the ports number of the web server, user name and password. To save the changes made, please click on the button Save. GIOVE AC5... -
Page 16: Restart
4.3.6 Restart Figure 8 On this page you can restart the device remotely. GIOVE AC5... -
Page 17: Communication Protocols
<CR> String end (equivalent to 13 in decimal or 0x0D in hexadecimal) 5.1.3 Command Example ASCII String Having 2 Giove AC5 connected , the string for turn On the RELAY 3 on device with ID 2 will be: “Z1xx1xxx<CR>” Not to change the status of the relays not interested you can place a neutral character like ‘x’. -
Page 18: Protocol Modbus Rtu
To communicate through the ModBus protocol you must write in the registers, as in the table: Relay 1 registry 5 0=OFF, 1=ON Relay 2 registry 6 0=OFF, 1=ON Relay 3 registry 7 0=OFF, 1=ON Relay 4 registry 8 0=OFF, 1=ON Relay 5 registry 9 0=OFF, 1=ON GIOVE AC5... -
Page 19: Technical Specifications
6 TECHNICAL SPECIFICATIONS Supply Voltage 12-24Vdc Maximum Current 200mA Maximum Current of contacts in deviation NO= 5A, NC=3A Network Connection 10/100Mbps GIOVE AC5... - Page 20 MU_A84_05/16_R90 www.vivaldigroup.it info@vivaldigroup.it Vivaldi S.R.L. Administrative Headquarters Via E. Fermi, 8 - Z. I. Est – 30020 Noventa di Piave (VE) Italy tel. +39 0421 307825 fax +39 0421 307845 info@vivaldigroup.it www.vivaldigroup.it...
