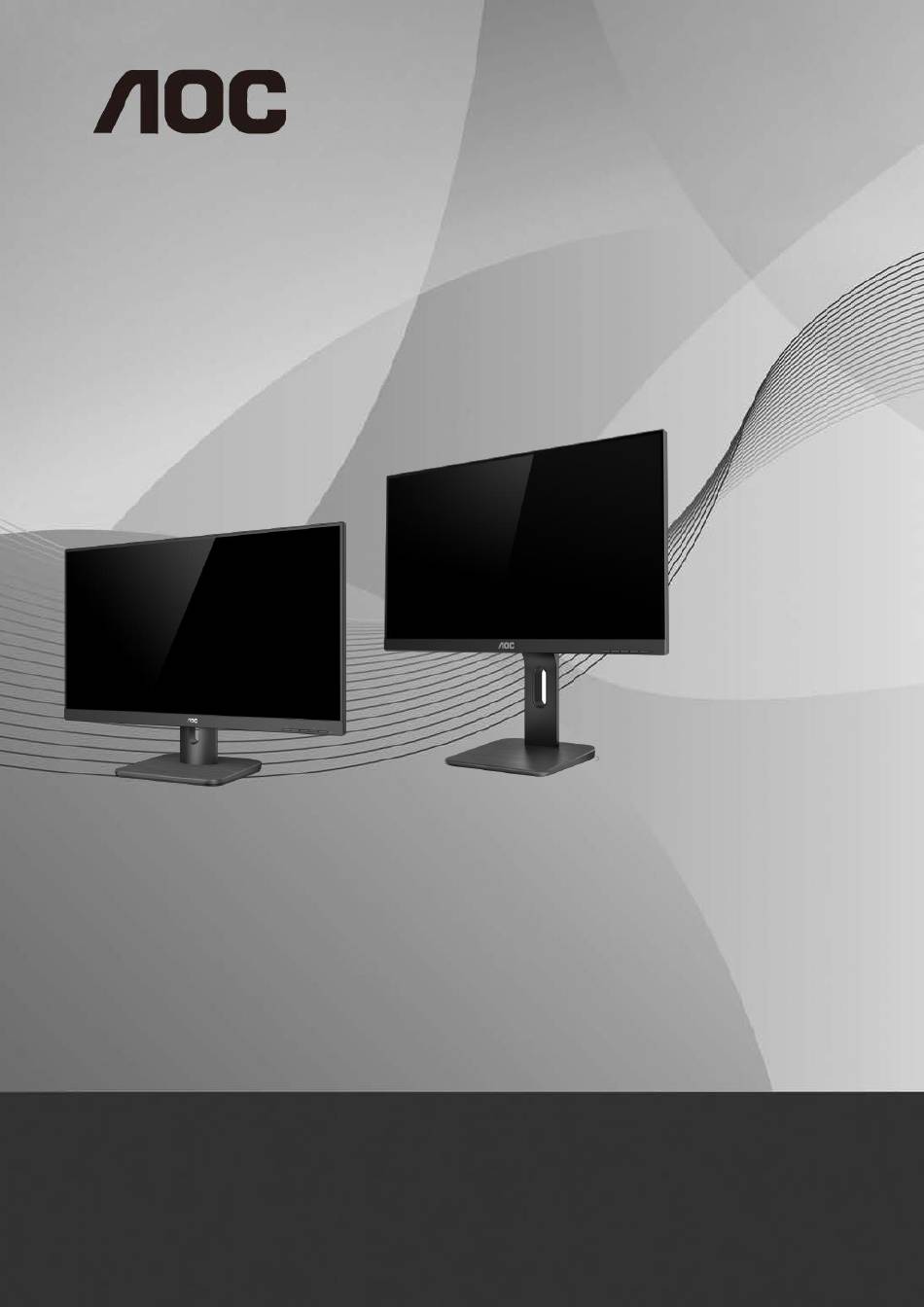

- Page 1 LCD Monitor User Manual 24E1Q/24P1U/24P1/X24P1 LED backlight www.aoc.com ©2018 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ..................................3 National Conventions ............................3 Power ................................4 Installation ................................5 Cleaning................................6 Other .................................. 7 Setup ..................................8 Contents in Box ..............................8 Setup Base ................................ 9 Adjusting the monitor ............................10 Connecting the Monitor ............................ 11 Wall Mounting ................................. -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Power Cable Audio Cable DVI Cable Analog Cable HDMI Cable DP Cable USB Cable Not all signal cables (Audio, DVI, Analog, HDMI, DP, USB cables), CD manual will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Base
Setup Base Please setup or remove the base following the steps as below. Please place the monitor on a soft and flat surface to prevent the scratch. Setup: 24P1/24P1U/X24P1 24E1Q Remove: 24P1U/24P1/X24P1 24E1Q... -
Page 10: Adjusting The Monitor
Adjusting the monitor For optimal viewing, it is recommended to look at the full face of the monitor, and then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You can adjust the monitor’s angle from -5˚... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: Power HDMI Analog (D-Sub 15-Pin VGA cable) Audio in Earphone out USB upstream USB downstream 10 USB charging... - Page 12 To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the power cable to the AC port on the back of the monitor. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.
-
Page 13: Wall Mounting
5. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. -
Page 14: Adjusting
Adjusting Hotkeys 24P1U Source/Auto/Exit Clear Vision/- Volume / Image Ratio/+ Menu/Enter Power 24P1/X24P1/24E1Q Source/Auto/Exit Clear Vision/- Volume/+ Menu/Enter Power Source/Auto/Exit When the OSD is closed, press “ ” button will be Source hot key function. - Page 15 When the OSD is closed, press “ ” button continuously about 2 second to do auto configure (Only for the models with D-Sub). Volume When there is no OSD, press “ ” to active volume adjustment bar, press to adjust volume (Only for the models with Audio) Menu/Enter When there is no OSD, Press to display the OSD or confirm the selection.
- Page 16 Clear Vision When there is no OSD, Press the “ ” button to activate Clear Vision. Use the “ ” or “ ” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. Press and hold “ ”...
-
Page 17: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Press the MENU-button to activate the OSD window. Press to navigate through the functions. Once the desired function is highlighted, press the to activate it. If there is a sub-menu, press to navigate through the sub-menu functions. -
Page 18: Luminance
Luminance Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Eco mode Game Game Mode Movie Movie Mode Sports Sports Mode Gamma1 Adjust to Gamma 1 Gamma Gamma2 Adjust to Gamma 2 Gamma3 Adjust to Gamma 3 Disable dynamic contrast ratio... -
Page 19: Image Setup
Image Setup Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise. Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise. Sharpness 0-100 Adjust picture sharpness. H.Position 0-100 Adjust the horizontal position of the picture. V.Position 0-100 Adjust the vertical position of the picture. -
Page 20: Color Setup
Color Setup Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Color Temp. Cool Recall Cool Color Temperature from EEPROM. sRGB Recall SRGB Color Temperature from EEPROM. User Recall User Color Temperature from EEPROM Full Enhance ON/OFF Disable or Enable Full Enhance Mode. -
Page 21: Picture Boost
Picture Boost Bright Frame ON/OFF Enable/Disable Bright Frame Frame Size 14-100 Adjust the Size of the Frame Brightness 0-100 Brightness Adjustment for Enhance Area Contrast 0-100 Contrast Adjustment for Enhance Area H. position 0-100 Adjust the horizontal position of the Frame V. -
Page 22: Osd Setup
OSD Setup English, France, Spanish, Portugues, German, Italian, Dutch, Language Swedish, Finnish, Polish, Czech, Select the OSD language. Russia, Korea, TChina, SChina, Japanese. Timeout 5-120 Adjust the OSD timeout. V. Position 0-100 Adjust the vertical position of the OSD. Transparence 0-100 Adjust the OSD. -
Page 23: Extra
Extra 24P1U: Auto/D-SUB/HDMI/DP 24P1: Auto/D-SUB/HDMI/DVI/DP Input Select Select input signal source. X24P1: Auto/D-SUB/HDMI/DVI /DP 24E1Q: Auto/D-SUB/HDMI/DP Auto Config. Yes / No Auto adjust. the picture to default. Off Timer 0-24 hrs Select DC off time. Image Ratio wide or 4:3 Select wide or 4:3 format for display. -
Page 24: Exit
Exit LED Indicator Status LED Color Full Power Mode White Power Saving Orange... -
Page 25: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust. Picture Is Fuzzy & Has Make sure you are not using an extension cable or switch box. - Page 26 Press to auto-adjust. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page.
-
Page 27: Specification
Specification General Specification Model name 24P1U Driving system TFT Color LCD Viewable Image Size 23.8 inch, 60.47cm diagonal Panel Pixel pitch 0.2745(H)mm x 0.2745(V)mm Video R, G, B Analog Interface & HDMI Interface & DP Interface Separate Sync. H/V TTL Display Color 16.7M 6bits+Hi FRC Horizontal scan range... - Page 28 Model name 24P1 Driving system TFT Color LCD Viewable Image Size 23.8 inch, 60.47cm diagonal Pixel pitch 0.2745(H)mm x 0.2745(V)mm Panel R, G, B Analog Interface & HDMI Interface & DVI Interface & DP Video Interface Separate Sync. H/V TTL Display Color 16.7M Horizontal scan range...
- Page 29 Model name X24P1 Driving system TFT Color LCD Viewable Image Size 24 inch, 61.13cm diagonal Pixel pitch 0.270(H)mm x 0.270(V)mm Panel R, G, B Analog Interface & HDMI Interface & DVI Interface & DP Video Interface Separate Sync. H/V TTL Display Color 16.7M Horizontal scan range...
- Page 30 Model name 24E1Q Driving system TFT Color LCD Viewable Image Size 23.8 inch, 60.47cm diagonal Panel Pixel pitch 0.2745(H)mm x 0.2745(V)mm Video R, G, B Analog Interface & HDMI Interface & DP Interface Separate Sync. H/V TTL Display Color 16.7M...
-
Page 31: Preset Display Modes
48.363 60.004 1024x768@70Hz 56.476 70.069 1024x768@75Hz 60.023 75.029 1280x1024@60Hz 63.981 60.020 SXGA 1280x1024@75Hz 79.976 75.025 1280x720@60HZ 45.000 60.000 WSXG 1280x960@60HZ 60.000 60.000 WXGA+ 1440x900@60Hz 55.935 59.876 WSXGA+ 1680x1050@60Hz 65.290 59.954 FHD (24E1Q/24P1U/24P1) 1920x1080@60Hz 67.500 60.000 WUXGA (X24P1) 1920x1200@60Hz 74.026 59.950... -
Page 32: Pin Assignments
Pin Assignments 15-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Video-Red Video-Green Ground Video-Blue N.C. N.C. DDC-Serial data Detect Cable H-sync GND-R V-sync GND-G DDC-Serial clock GND-B 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. - Page 33 24-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name TMDS data 2－ TMDS data 3＋ ＋5V Power TMDS data 2＋ TMDS data 2/4 Shield Ground (for+5V) TMDS data 4－ Hot Plug Detect TMDS data 4＋ TMDS data 0－ DDC Clock TMDS data 0＋...
-
Page 34: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
