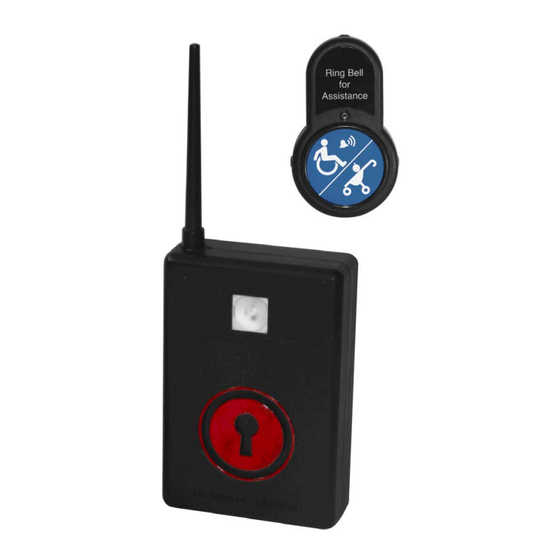

Inclusion Solutions BigBell Max System Manual

TRANSMITTER/BUTTON MOUNTING LOCATION
(REQUIRED BY THE ADA)
• Outside the front door of the establishment on the latch side of the
door.
• Mount the BigBell between 32" and 48" high (see below)
• The BigBell must be mounted in a location where it will be unob-
structed by any barriers. A person should be able to approach within
3" of the Pushbutton without encountering protruding objects or
standing within the swing of the door.
MOUNTING HEIGHT (REQUIRED BY ADA)
Your BigBell must be mounted between 32" and 48" from the ground
so that it is accessible for customers who use wheelchairs. The ideal
height, as set forth by law, is 36".
MOUNTING INSTRUCTIONS
1. Carefully separate top from the back plate.
2. Remove the three screws from inside the Pushbutton and retain for
final assembly.
3. Position the back plate on the wall in the desired location and mark
or scribe the center of the four mounting holes onto wall.
4. Drill 7/32" holes into the wall at the four marked locations.
5. Insert the plastic wall anchors into drilled holes.
5. Screw the back plate onto the wall.
6. Remove plastic strip in the battery casing to power unit.
7. Change melody to desired tone (see Changing Tone/Melody Se-
lection).
7. Position the top enclosure on the back plate and reinstall the three
screws.
ALTERNATIVE MOUNTING METHOD
The BigBell Pushbutton can also be mounted to glass or other
smooth surfaces with the enclosed double-sided tape and adhesive.
Use the adhesive to adhere the Pushbutton to the glass or other sur-
face utilizing the double sided tape as a temporary hold while the
glue hardens.
BIGBELL RECEIVER BATTERY INSTALLATION
1. For Battery Operation: Remove the battery cover on the back of
the receiver. Insert 4 AA batteries in the correct orientation.
2. For AC Power Operation: Plug the wall transformer into a 120
VAC outlet. Plug the power cord into the bottom of the receiver.
AC operation is recommended.
BIGBELL TRANSMITTER BATTERY REPLACEMENT
To Replace Batteries, open cover of BigBell and carefully remove
batteries (if they will not come out, narrow pliers or a screwdriver
will help remove them)
Dispose of used batteries properly.
Replace with UL approved Type CR2032 batteries.
CAUTION - The batteries used in this device may present a risk of
fire or chemical burn if mistreated. Do not recharge, disassemble,
heat above 100 degrees Celsius (212 Fahrenheit), or incinerate. Re-
place with UL approved Type CR2032 3 volt only. Use of another
battery may present a risk of fire or explosion.
TROUBLESHOOTING TIPS
PROBLEM: Receiver does not sound when Pushbutton is pressed.
SUGGESTION: Verify that Pushbutton batteries are installed cor-
rectly and battery contacts are in the correct position. Try replacing
batteries in receiver. Be sure the eight switch settings are all the same
on Transmitter and Receiver (see privacy code section). Ensure that
the receiver is mounted away from all objects that may cause interfer-
ence. These items include: motors/engines, neon lights, dimmers,
fans, and computers.
PROBLEM: Chime only plays one melody.
SUGGESTION: Press Scroll Button on inside of Pushbutton to
change sound options.
PROBLEM: Receiver sometimes plays without anyone pressing
Pushbutton.
SUGGESTION: If another BigBell is on the same frequency nearby,
it could accidentally trigger your system. If this happens, change
privacy code.
MAXIMIZNG OPERATING RANGE
The BigBell Max has an operating range of up to 1000 feet.
However, transmission through concrete or heavy walls may dimin-
ish the signal and lessen operating range.
IF YOU ARE OPERATING A BIGBELL IN A BUSINESS, GAS
STATION, OR RESTAURANT WITH HEAVY
MACHINERY OR METAL, YOU MAY NEED TO MOUNT
THE RECEIVER ON A WINDOW USING VELCRO. IF
YOU MUST MOUNT THE RECEIVER ON THE WALL,
WE RECOMMEND MOUNTING IT SO THAT THERE IS
AN INCH OF SPACE BETWEEN THE RECEIVER AND
THE WALL TO REDUCE INTERFERENCE
In order to maximize range, the receiver should be placed or
hung on a wall at approximately 6-7 feet in the air, with the
unit facing in the direction of the Pushbutton
You may also wish to move the receiver to a location closer in
proximity to the Pushbutton, meaning as close to the accessible
entrance door (and installed BigBell unit) as possible.
You may also want to experiment with different locations for the
Pushbutton to improve range.
If possible, do not place the Pushbutton or the receiver on a
metal surface, as this will also diminish range.
LIMITED WARRANTY
The product you have purchased is guaranteed against defects in workmanship and materials for one year from
date of purchase. If the product fails due to a manufacturing defect during normal use, return the
product to the store where purchased for a replacement
OR send product to:
Inclusion Solutions Customer Service
2000 Greenleaf Street, Suite 3
Evanston, IL 60202
Not Covered - Batteries and other expendable items, repair service, adjustment and calibration due to
misuse, abuse or negligence. Neither lost, damaged, or stolen BigBells are covered by this warranty.
Unauthorized service or modification of the product or of any furnished components will void this warranty in
its entirety. This warranty does not include reimbursement for inconvenience, installation, set-up time, loss of
use, postage, unauthorized service, or other products used in conjunction with, but are not supplied by,
Inclusion Solutions. All requests for replacement must include a dated sales receipt or Inclusion Solutions
invoice (copies accepted) and this guarantee statement. INCLUSION SOLUTIONS SHALL NOT BE LIABLE
FOR LOST PROFITS, INDIRECT, SPECIAL, EXEMPLARY, INCIDENTAL OR CONSEQUENTIAL
DAMAGES INCLUDING WITHOUT LIMITATION ANY SUCH DAMAGES DUE TO IMPROPER
WIRING OR MISUSE OF THE PRODUCT. INCLUSION SOLUTIONS ALSO SHALL NOT BE RESPON-
SIBLE FOR ANY DAMAGES OR CONSEQUENCES OF LITIGATION BROUGHT UNDER THE AMERI-
CANS WITH DISABILITIES ACT OR OTHER CIVIL RIGHTS LITIGATION.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, &
2. This device must accept any interference received,
including interference that may cause undesired
operation. This device complies with RSS-210 of Industry Canada.
If you have any questions or need further assistance, please call Inclusion Solutions toll free at 1-866-232-5487
or visit us at www.inclusionsolutions.com
