RETROFT installation PROCESS IN PICTURES
Shower Waste Water Heat Recovery System
This picture guide is supplementary and does not replace the installation instruction manual supplied
with the Easyfit+. Before starting installation please read all content provided with the Easyfit+.
Before starting check section 3 of the installation instructions supplied with the Recoup Easyfit+ for pre-installation
guidance on locating a suitable area for installation.
The Recoup Easyfit+ needs to be installed horizontally under the bath or the shower tray. Installation should take
place on a flat surface capable of supporting the WWHRS. The location should allow for access to all parts and allow
routine maintenance (E.g. Cleaning) to be carried out with relative ease.
The Recoup Easyfit+ must be located within the heating envelope of the building.
The Easyfit+ must be installed with consideration to the most recent 'Approved document – Part H of the
Building Regulations' for preventing the ingress of foul sewer gases.
Before starting the installation make sure you know which installation method is to be used. In a retrofitted installation
System B is the most common and will be the method primarily shown here. The Easyfit+ can also be installed with
the System A or System C installation method.
Use the images and instructions on the following pages to assist you with the installation process. Work down each
column following the numbered text below each corresponding image. An installation video can also be found on our
website to assist, www.recoupwwhrs.co.uk.

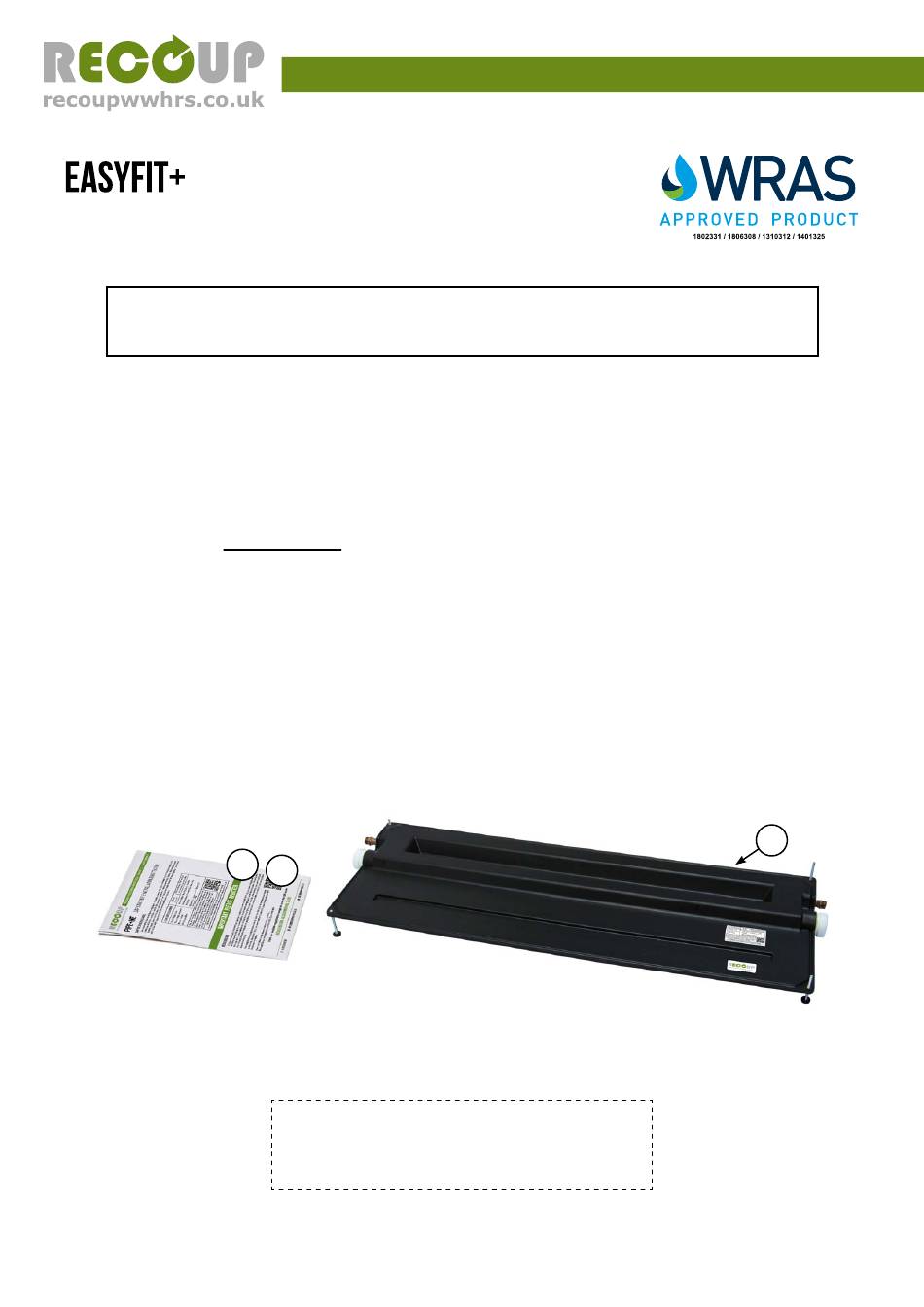

Installation contents
2
1 - RECOUP Easyfit+ WWHRS unit
3 - NCM (SAP) identifier label for nearby water or service cupboard.
passively recovering waste HEAT energy WITH EVERY shower
IMPORTANT NOTE – Please Read
3
IMPORTANT NOTE
To ensure SAP compliance check buildings spec for
correct installation method (System A, B or C)
Page 1
2 - Installation instructions
1
Advertisement
Summary of Contents for RECOUP EASYFIT+
- Page 1 The Recoup Easyfit+ needs to be installed horizontally under the bath or the shower tray. Installation should take place on a flat surface capable of supporting the WWHRS. The location should allow for access to all parts and allow routine maintenance (E.g.
- Page 2 Installation diagrams & Drawings Preheated water pipework 30 - 40mm higher Shut off valve Installation with bath / shower drain at (Not supplied) the same end as the SVP soil waste PREHEATED WATER Cold mains water pipework Double check valve (Not supplied) SHOWER Shut off valve...
- Page 3 Page 3...
- Page 4 SETTING UP TO RETROFIT THE RECOUP EASYFIT+ 1. To retrofit the Recoup Easyfit+ below the shower system 5. If required remove part of the added support to allow access installed must have a thermostatic mixer. This can be either during the installation.
- Page 5 (not supplied) to the mains cold water pipe. Ensure all fixings are fully tightened and joints sealed. 10. Unbox the Recoup Easyfit+. Included within the box is 14. Adjust the feet so that the end of the Easyfit+ furthest from...
- Page 6 CONNECTING THE MAINS COLD & PREHEATED WATER 17. The flow of mains cold to preheated water needs to run 21. Connect a second female half inch BSP connector (not in the opposite direction to the flow of the shower waste supplied) to the half inch male connection for the preheated water.
- Page 7 27. When the highest point is at the opposite end to bath trap 31. Replace any bath supports removed to allow access to the pipes can be run above the lower profile section of the install the Recoup Easyfit+ Easyfit+. 28. Using 40mm push fit or 43mm solvent weld pipe, connect 32.
-
Page 8: Maintenance
/ shower-tray drain in 2 stages, with around 5 minutes between. (This will help dissolve soap residues on the copper pipes in the RECOUP Easyfit+). Use the shower shortly after to make sure any debris is flushed away. It is possible to use chemical agents sold for declogging as a cleaning agent if required. - Page 9 The installation of a WWHRS should be registered to comply with SAP requirements. Registration can be completed by filling in a downloadable paper based design and installation checklist, returning it to RECOUP with copies completed for the homeowner and your records. Alternatively, you can download the RECOUP WWHRS App which provides customers and installers with an easy to use and access registration facility.
