Summary of Contents for Smart Brand SB4032

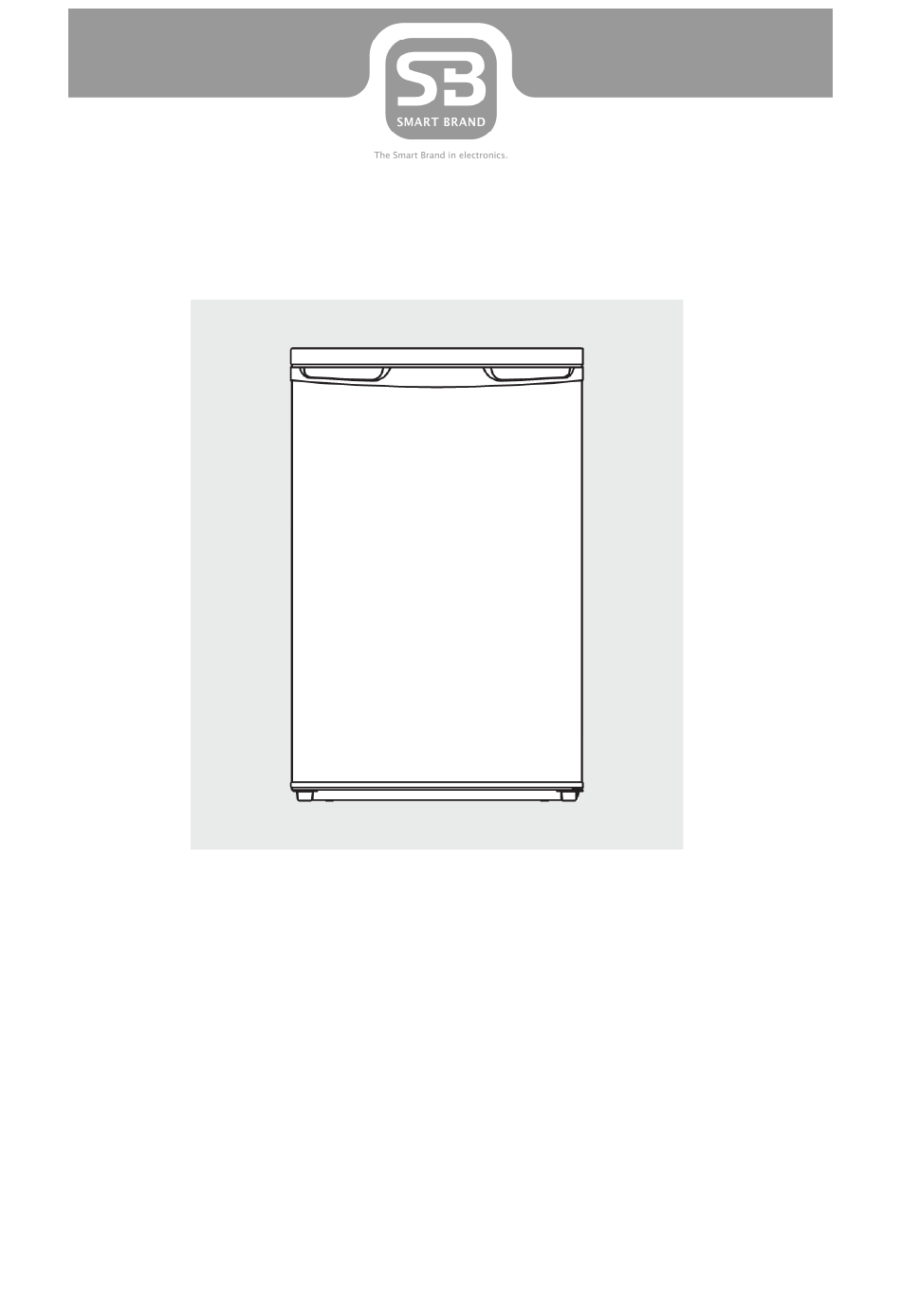

- Page 1 Instruction manual Refrigerator SB4032 Read and retain these instructions for future reference...
-
Page 2: Table Of Contents
Contents Introduction ………………………………………….………………………………………………………..3 Important safety instruction ……………………………………………………………………………..4 Installation…………………………………………………………………………………………………...…6 Reversing the door…………………………………………………………………………………………...7 Description of the appliance………………………………………………………………………………8 Starting up and temperature regulation.……………………………………………………..……….9 Interior accessories………………………………………………………………………………………..10 Defrosting…………………………………………………………………………………………………….11 Energy saving tips…………………………………………………………………………………………13 Trouble shooting ……………………………………………………………….………………………….14 Changing the light bulb…………………………………………………………………………………..17 Noises during operation………………………………………………………………………………….18 Warranty……………………………………………………………………………………………………….19... -
Page 3: Introduction
Introduction Before placing your new refrigerator/freezer into operation please read this operating instruction carefully. It contains important information for safe use, for installation and for care of the appliance. Please keep this operating instructions for future reference. Pass them on to possible new owners of the appliance. Notes which are important for your safety or for the proper functioning of the appliance are stressed with a warning triangle and! or with signal words (Warning!,Caution!,lmportant! ). -
Page 4: Important Safety Instruction
Important Safety Instructions These warnings are provided in the interests of your safety. Ensure you fully understand them before installing or using the appliance. If you are unsure about the meaning of these warnings contact the Customer Care Department for assistance. Intended use •... - Page 5 • Do not operate any electrical appliances in the refrigerator and/or freezer (e.g. electric ice cream makers, mixers etc.). • Before cleaning the appliance, always switch off the appliance and unplug it, or pulI the house fuse or switch off the circuit breaker. •...
-
Page 6: Installation
Installation Installation Location The appliance should be set up in a well ventilated, dry room. Energy use and efficient performance of the appliance is affected by the ambient temperature. The appliance should therefore: • not be exposed to direct sunlight; •... -
Page 7: Reversing The Door
Reversing the door The side at which the door opens can be changed from the right side (as supplied) to the left side, if the installation site requires. When changing the side at which the door opens, the appliance must not be connected to the mains. -
Page 8: Description Of The Appliance
Description of the appliance View of the appliance 1. Butter/cheese compartments with flap and egg storage insert 2. Door storage compartment 3. Bottle shelf 4. Vegetable drawers 5. Storage shelves 6. Temperature regulator and light switch 7. Rating plate... -
Page 9: Starting Up And Temperature Regulation
Starting up and temperature regulation Insert the plug of the connection lead into the plug socket with protective earth contact. When the refrigerator compartment door is opened, the internal lighting is switched on. The temperature selector switch is located on the RH side of the refrigerator compartment. •... -
Page 10: Interior Accessories
Interior accessories Various glass or plastic storage shelves and wire trays are included with your appliance - different models have different combinations. You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. -
Page 11: Defrosting
Defrosting The fridge defrosts automatically. The rear wall of the fridge covers with frost when the compressor is running, and defrosts when the compressor is off. The water from the thawing frost evaporates by itself. Switching off the appliance To switch off the appliance, turn the temperature regulator to position “0”. If the appliance is not going to be used for an extended period: Remove all refrigerated packages. - Page 12 After cleaning wipe with fresh water and rub dry Accumulation of dust at the condenser increases energy consumption.For this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner. Check the water drain hole on the rear wall of the fridge.
-
Page 13: Energy Saving Tips
Energy saving tips Do not install the appliance near cookers, radiators or other sources of warmth. High ambient temperatures cause longer, more frequent operation of the compressor. Ensure sufficient air circulation and exhaust at the appliance base and at the back wall of the appliance. -
Page 14: Trouble Shooting
Trouble shooting Correcting Malfunctions Spare parts: The following spare parts can be ordered from your local Service Force Centre. You can fit these yourself without any special skill or training: • Butter / cheese compartment, • Egg holders, • Door racks, •... - Page 15 Symptom Possible Cause Remedy Appliance is not switched on. Switch on the appliance. Appliance does not work. Mains plug is not plugged in or Insert mains plug. is loose. Fuse has blown or is Check fuse, replace if defective necessary Mains malfunctions are to be corrected by an electrician.
- Page 16 Symptom Possible Cause Remedy Appliance is not level. Readjust the feet Appliance is touching the Move the appliance slightly. wall or others. Unusual noise. A component, e.g. a pipe on If necessary, carefully bend the rear of the appliance is the component out of the touching another part of the way.
-
Page 17: Changing The Light Bulb
Changing the light bulb Warning There is a risk of electric shocks! Before changing the light bulb, switch off the appliance and unplug it, or pull the fuse or the circuit breaker. Light bulb data: 220-240V, max. 15 W • To switch off the appliance, turn the temperature regulator to position “0”•... -
Page 18: Noises During Operation
Noises during operation The following noises are characteristic of refrigeration appliances: • Clicks whenever the compressor switches on or off, a click can be heard. • Humming as soon as the compressor is in operation, you can hear it humming. •... -
Page 19: Warranty
Warranty You have 2 years warranty on technical defects after purchase Not included in warranty: • Other than normal domestic use (this appliance is for normal domestic use only). • Causes not being related directly to the appliance such as: damage occurring during transport or because of wrong usage such as dents, scratches, broken parts.
