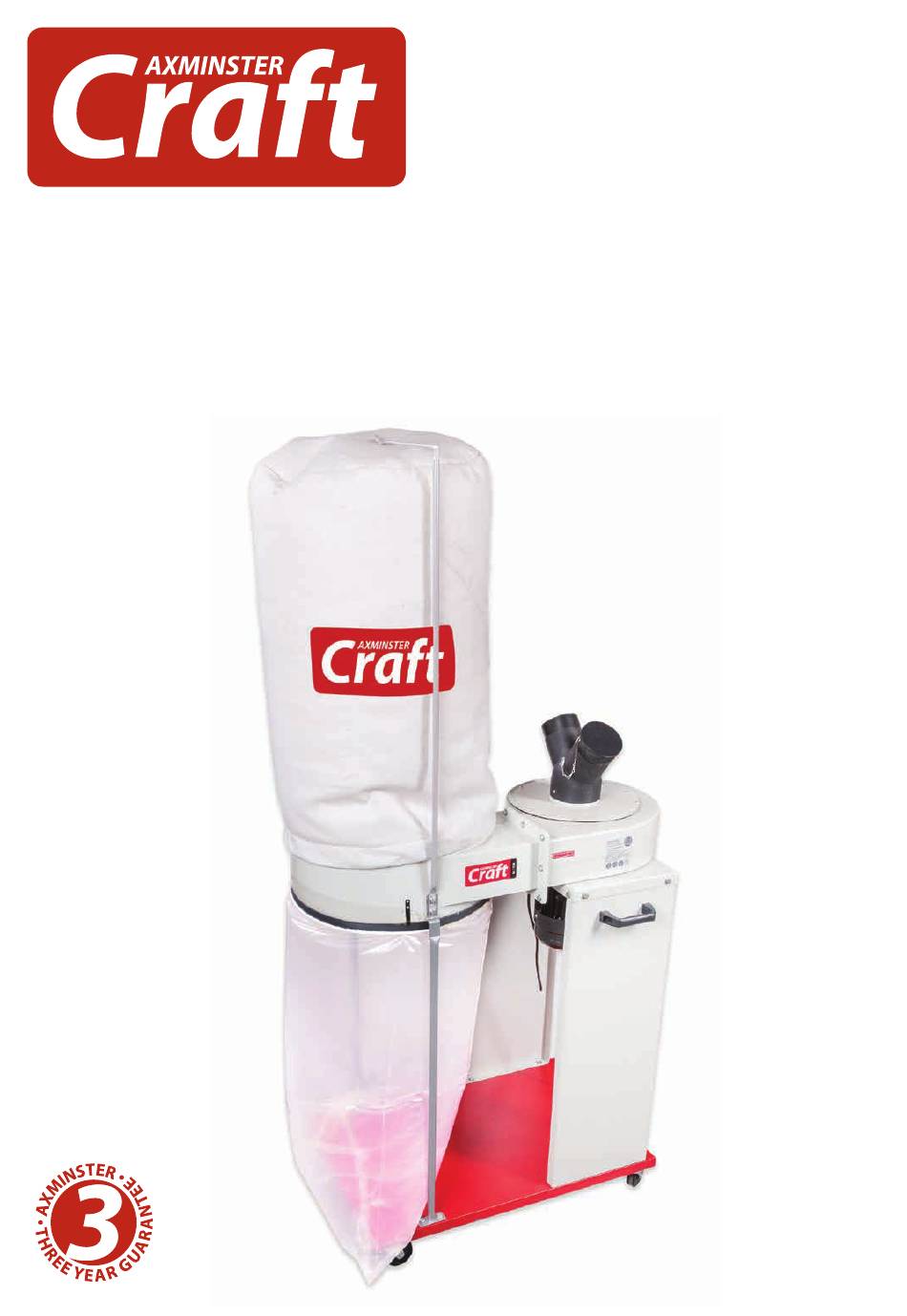

- Page 1 Code 105099 Original Instructions AC153E 2.0HP Dust Extractor AT&M: 08/04/20189 BOOK REF : 105795...
-
Page 2: Eu Declaration Of Conformity
EN 62233:2008 EN 60335-2-69:2012 Type Dust Extractor Model AC153E and conforms to the machinery example for which the EC Type-Examination Certificate No AM 50352808 has been issued by Laizhou Planet Machinery Co., Ltd. Signed at: Yutai West Street Laizhou, Shandong 261400 China and complies with the relevant essential health and safety requirements. -
Page 3: What's Included
What’s Included Quantity Item Part Model Number AC153E Extractor Assembly Extractor Support Panels Extractor Housing Upright Supports Filter Bag Hanger Bar Extractor Housing Cavity Base Castor Wheels Dome Head Screws Inlet Manifold Dust Bag 30 Micron Filter Bag Filter and Bag Retaining Belts... -
Page 4: Optional Accessories
Item Part AC153E Filter Cartridge Code 700345 Air filter cartridge for the AC153E chip extractor. Upgrade the performance of these extractors, able to handle fine saw dusts as well as chippings. Simply slots on with a stiff rubber seal. Partical size 1 micron. Internal mounting size is 480mm... -
Page 5: General Instructions For 230V Machines
Introduction The AC153E is the largest extractor in our Craft range, full bag easy. The extractor’s filtration performance can be which with its 1.5kW motor, large capacity collection bag upgraded with the addition of the cartridge filter (700345). and twin 100mm hose inlets, will handle most single work- This has a large surface area of filter material, so does not shop machines. -
Page 6: Specification
ONLY USE DUST EXTRACTION DO NOT PLACE DUST EXTRACTION BAGS WITH THIS MACHINE NOT BAGS OVER THE FILTER ASSEMBLY! DOMESTIC WASTE BAGS! Specification Code 105099 Model AC153E Rating Craft Power 1.5 kW Air Flow 2,000 m³/hr @ 100mm 2,500 m³/hr @ 125mm Filtration... - Page 7 Assembly Continues Over...
- Page 8 Assembly Secure the extractor (A) to the support panels (B) Locate the extractor housing cavity (E), position the outlet housing over the extractor’s outlet. Place a bolt (M) through...
- Page 9 Assembly the centre mounting hole and secure with a flat washer/nut. This will support the extractor housing (E) while you secure the remaining bolt/washers/nuts, see step 14-15-16-17-18. Extractor housing (E) being held by one bolt Mount the remaining bolts and tighten Continues Over...
- Page 10 Assembly Hook the micro filter bag (K) over the hanger bar Secure the inlet manifold Tuck the filter bag around the extractor housing cavity Filter bag belt pocket Secure the micro filter bag...
- Page 11 Assembly Optional Filter Cartridge Code 700345 • Remove the retaining belt ( L) and remove the 30 micron filter bag (K), place to one side. Slip the dust bag (J) under the Clips Wrap the retaining belt around the extractor housing (E) and secure Remove the the dust bag (J) in place...
- Page 12 Assembly Wrap the retaining belt around the filter cartridge (N) and secure • Locate the filter cartridge (N) and lower the assembly down over the extractor’s housing cavity and secure using the retaining belt (L).
-
Page 13: Illustration And Parts Description
Illustration and Parts Description 30 Micron filter bag NVR ON/OFF control switch x2 100mm Inlet manifold Filter bag hanger bar Extractor assembly Handle Dust collecting bag Extractor support panel Extractor housing upright support Base Castor wheel Extractor Set Up 1... - Page 14 Illustration and Parts Description Motor Filter and bag retaining belts Shaker paddle Filter cartridge Extractor Set Up 2 Extractor assembly with optional filter cartridge...
- Page 15 Operating Instructions Testing the Extractor Reduced Suction Performance Connect the extraction hose/s to the extractor’s inlet. After a period of time dust, sawdust and shavings can build up causing blockages and reduced suction performance. Carry out the following checks to keep WARNING! MAKE SURE CHILDREN your extractor working at peak performance.
-
Page 16: Maintenance
Maintenance DISCONNECT THE POWER SUPPLY FROM THE MAINS! ALWAYS WEAR A DUST MASK AND EYE PROTECTION. Daily • Empty the collection bag before it overflows, wear a dust mask whilst removing and emptying the bag. Weekly • Check the inlet and outlet duct and remove any accumulated sawdust. - Page 17 Exploded Diagrams/Lists...
- Page 18 Exploded Diagrams/Lists PART MOTOR DESCRIPTION HANDLE INLET-CONNECTOR COVER HEXAGON SOCKET INLET-CONNECTOR SCREW (LEFT THREAD) M8 SLOTTED PAN HEAD SUPPORT PLATE SCREW M5 SWITCH SLOTTED PAN HEAD SLOTTED PAN HEAD SCREW M6 SELF-SETTING SCREW ST4.2 INLET SLOTTED PAN HEAD SEAL RING SCREW M4 HEXAGON SOCKET SWITCH BOX...
-
Page 19: Wiring Diagram
Wiring Diagram... - Page 20 The Axminster guarantee is available on Craft, Trade, Engineer, Air Tools & CNC Technology Series machines Buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! For more information visit axminster.co.uk/3years The packaging is suitable for recycling.
