DIVA Light TWP Series Installation Instruction

Installation Instruction
TWP Series LED Wall Pack

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THE FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
THOROUGHLY INSPECT THE FIXTURE FOR ANY FREIGHT DAMAGE; FREIGHT DAMAGE SHOULD BE
REPORTED TO THE DELIVERY CARRIER.
The fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper
grounding is required for safety.
This product MUST be installed in accordance with the applicable installation code by a person familiar with the
construction and operation of the product.
This product SHALL be surface mounted with recessed junction box above 4 feet (1.2 meter) high.
User should prepare necessary accessories and spare parts (not provided) including junction box, cross bar, junction
box gasket, surface plate and screws.

WARNING

RISK OF ELECTRIC SHOCK. Make sure power supply is OFF before installing or maintaining fixture. No user
serviceable parts inside.
Never perform maintenance or cleaning while fixture is energized. Disconnect power and allow fixture to cool before
maintaining.

MOUNTING

1. Open the fixture by unscrewing off two bolts, and disconnect power
supply of LED modules.
Notice: when opening the rear housing, please pay special attention NOT
to damage the spindle and inner wires.

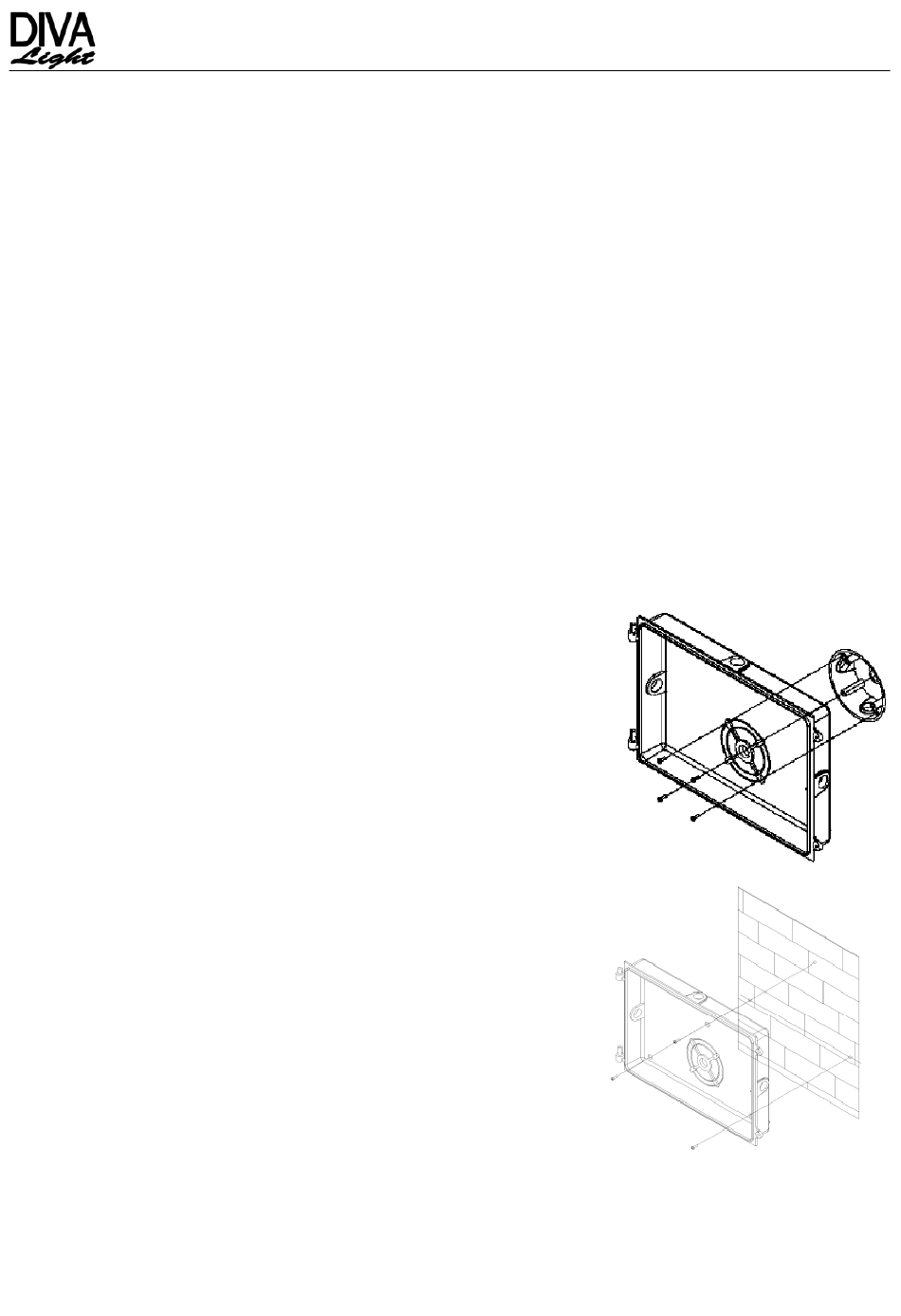

2. Knock out or drill holes through casting in the rear housing for mounting
fixture to wall and for securement to junction box (not provided).
3. Apply silicon sealant (not provided) to any holes to prevent water entry.
4. Secure fixture to wall with two or more screws (not provided).
5. Secure fixture to junction box with screws (not provided). Junction box
gasket should create seal against mounting surface.
