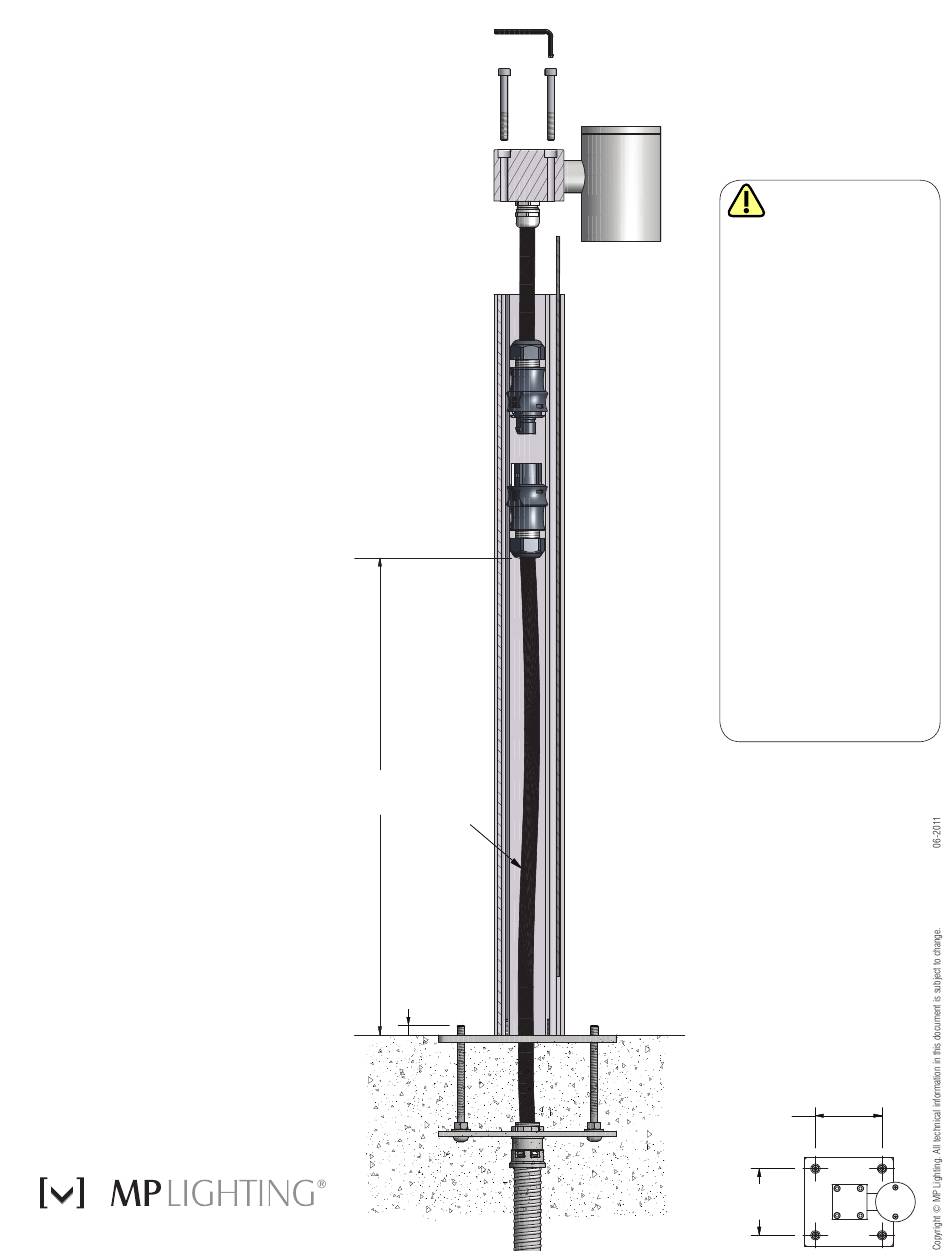

MP Lighting LED92 Rough In Installation Instructions

1
1/2 to 3/8" (13 to 10mm)
of hex bolt screws should
remain above finished
concrete when positioning
mounting plate.
2
Attach conduit.
3
Pull cabtire cable so
approximately 36"
(915mm) of cable
remains above
concrete.

Parts

915mm
• LED unit
36"
• Mounting plate
• Hex countersunk screw
• 1/4" x 3" Hex bolt screw
• 1/4" Hex cap nut
• Washers
• RST waterproof connectors
• Conduit strain
relief connector
13 - 10mm
1/2 - 3/8"

Tools

• Allen key

Maintenance

Clean using a soft cloth.
t 1.877.708.1184 f 604.708.1185 www.mplighting.com
16 West 4th Avenue, Vancouver BC V5Y 1G3, Canada
915mm
36"
Qty.
Cabtire
1
Cable
1
4
4
4
4
1
13 - 10mm
not
1/2 - 3/8"
included
included
LED92
Rough In
Installation
Instructions
CAUTION
• Read all instructions.
• WARNING: RISK OF FIRE OR
ELECTRICAL SHOCK: Do not
make or alter any openings in the
compartment of wiring or electrical
components during installation.
Do not alter or add ballasts, or any
other electrical components.
• Installation and use of this fixture
mounting assembly requires a
person familiar with the construction
and operation of luminaire electrical
systems and the hazards involved,
if not qualified, do not attempt
installation.
• Turn off power before installation.
• Connect to 700mA constant current
driver only.
• Avoid using detergents
with hand softeners, anti-bacterial
agents, glass cleaners or acrylic
cleaning products.
• KEEP THESE INSTALLATION
INSTRUCTIONS.
114mm
4-1/2"
114mm
4-1/2"
114m
4-1
114m
4-1
