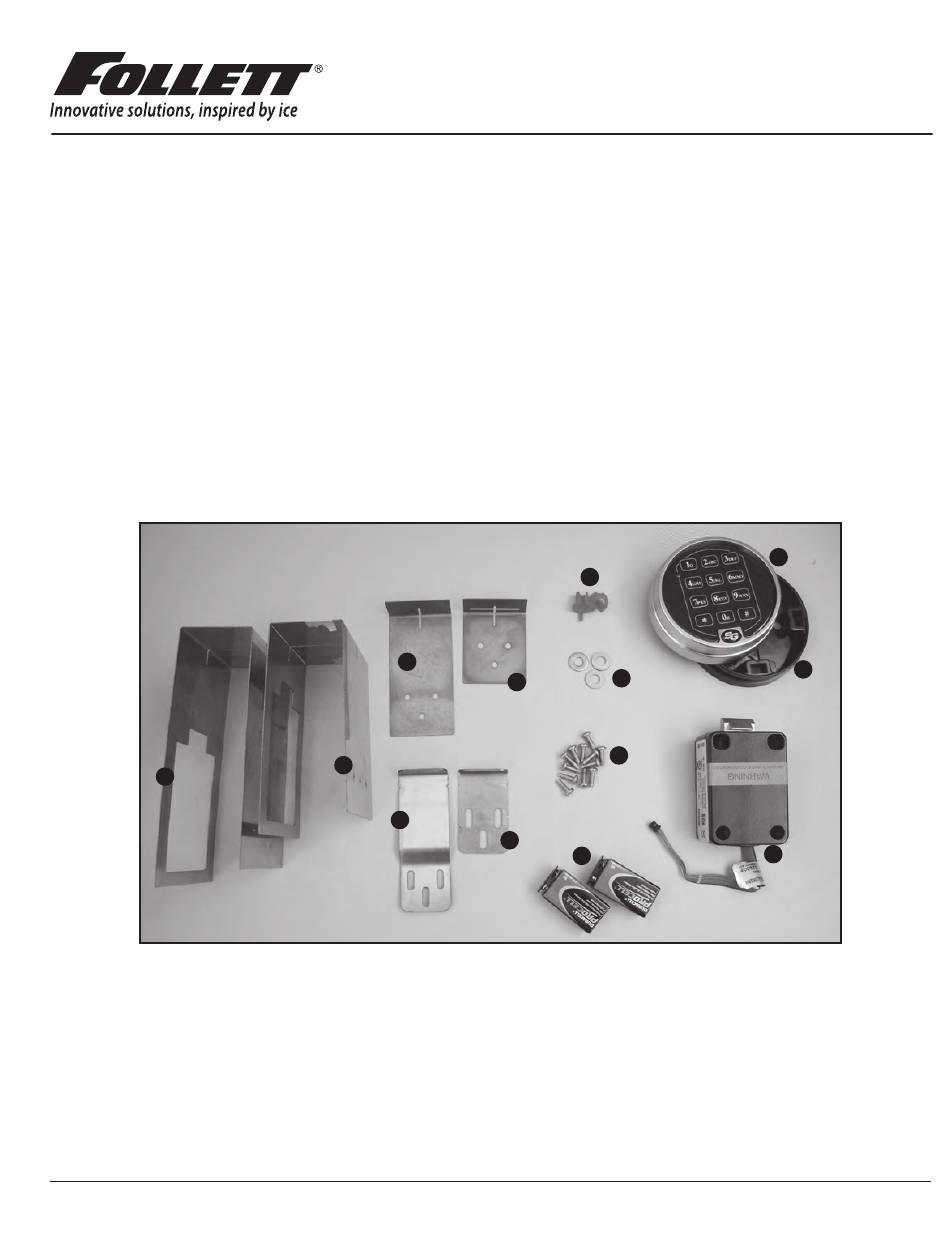

Materials supplied
Keypad assembly (housing and mounting base)
Keypad housing base
Lock mechanism with cable
(9) 8-32 x 1/2" stainless steel screws
Latch
Jig 2, latch
Jig 1, keypad and latch
(2) Grommets
(3) Spacers
(2) 9-volt batteries
REF1/2
7
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Keypad Lock Retrofit Kit for Follett
Jig 1
REF1/2
REF4/5
6
7
5
REF1/2
REF Undercounter Refrigerator
Reference #
1
2
3
4
5
6
7
8
9
10
Jig 2
8
REF4/5
6
Latch
5
10
REF4/5
P/N 00170688
Installation Instructions
1
9
4
3
2
Order parts online:
www.follettice.com
00170704R01
Advertisement
Table of Contents
Summary of Contents for Follett 00170688
- Page 1 Keypad Lock Retrofit Kit for Follett REF Undercounter Refrigerator P/N 00170688 Installation Instructions Materials supplied Reference # Keypad assembly (housing and mounting base) Keypad housing base Lock mechanism with cable (9) 8-32 x 1/2" stainless steel screws Latch Jig 2, latch...
- Page 2 Center punch Screwdriver Note: Once an existing Follett REF refrigerator has been retrofitted with a keypad lock, the door will no longer be field-reversible. Should you have any questions or require technical help at any point, please call our technical service group at (800) 523-9361 or (610) 252-7301.
- Page 3 4. Position lock mechanism in jig cutout on door back. Fig. 4 Thread wire cable connector through jig (Fig. 4). 5. Mark 4 holes onto door back through lock (Fig. 5). Fig. 5 6. Remove lock mechanism. 7. Reverse jig on door, aligning slot in jig with centerline Fig.
- Page 4 10. Tap all holes (except center front and center back Fig. 7 holes) with 8-32 tap. 11. From door front, redrill center hole with 3/8" drill bit. Warning: Do NOT try to drill completely through from one side to the other. 12.
- Page 5 20. Hold keypad housing close to mounting base while Fig. 10 folding excess wire inside housing. Position wire away from spring clips that hold keypad housing to base (Fig. 10). 21. Place keypad housing over base and push firmly until housing snaps into place. Keep wires away from spring clips while pushing to avoid damage to wires.
- Page 6 7. Position latch with tongue facing DOWN and space Fig. 13 latch off inside refrigerator ceiling by placing supplied spacers over oval holes on top of latch (Fig. 13). Note: Be sure to use the correct latch for REF1/2 or REF4/5.
- Page 7 Keypad Lock Retrofit Kit...
- Page 8 Follett is a registered trademarks of Follett Corporation, registered in US. 801 Church Lane • Easton, PA 18040, USA 00170704R01 Toll free (877) 612-5086 • +1 (610) 252-7301 © Follett Corporation 6/14 www.follettice.com...
