DIGITAL MICROPHONE CONSOLE VA-FMC-512
VA-FMC-512
VA-FMC-512 with 12 zone keys
1
2
3
4
5
6

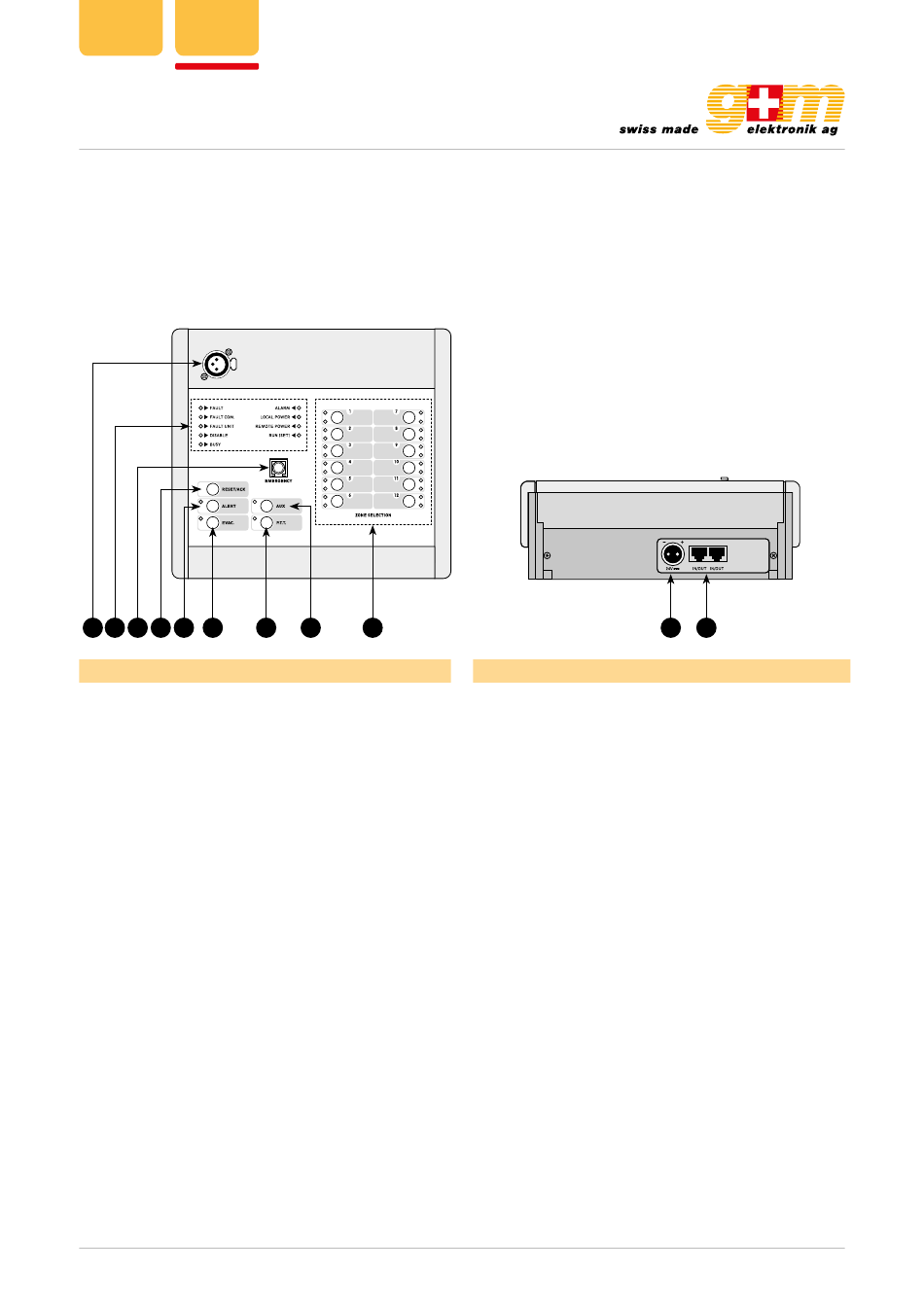

Front view
1 Socket for microphone (not included) *
2 Status-indicator LED
3 Emergency key
4 Key for interrupting message / failure buzzer
5 Key for sending out pre-recorded alert message
6 Key for sending out pre-recorded evacuation messages
7 Call key
8 Key for calling up pre-set messages
9 Zone-selection keys with status-indicator LED
* Each station must be completed with an additional micro-
phone to be chosen from among the two following models:
• VA-MG-001, dynamic gooseneck microphone
• VA-MH-001, dynamic hand-held microphone with P.T.T.
g+m elektronik ag will not accept any liability for damage to property and / or persons arising out of incorrect use of the equipment or of procedures that do not comply with the
instructions provided in this booklet. g+m elektronik ag strive to improve their products continuously, and therefore reserve the right to make changes to the drawings and technical
specifications at any time and without notice.
gm-elektronik.swiss | adm@gm-elektronik.swiss
7
8
9
Rear view
A Connector for external 24 VDC power supply
B IN / OUT connectors
Page 1 | 9
A
B
Datasheet 1811.001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VA-FMC-512 and is the answer not in the manual?

Questions and answers

Related Manuals for G+M Elektronik VA-FMC-512

Summary of Contents for G+M Elektronik VA-FMC-512

  • Page 1 • VA-MH-001, dynamic hand-held microphone with P.T.T. g+m elektronik ag will not accept any liability for damage to property and / or persons arising out of incorrect use of the equipment or of procedures that do not comply with the instructions provided in this booklet.
  • Page 2 DIGITAL MICROPHONE CONSOLE VA-FMC-512 1. Connections The station must be connected to the Emergency Desk of the VA-500 system. It is possible to connect up to 4 remote sta- tions in cascade formation by means of the IN / OUT (C) sockets provided for this purpse, which can be used as inputs or outputs as required.
  • Page 3 DIGITAL MICROPHONE CONSOLE VA-FMC-512 2. Operating instructions The microphone station is equipped with a set of LED’s for signalling the operating states of the system: Le postazioni FMD 2001 e FMD 2012 sono dotate di una serie di LED atti a segnalare gli stati operativi del sistema.
  • Page 4 RUN/SET Verde Fisso: indica che è attiva la fase di configurazione della postazione (SET). DIGITAL MICROPHONE CONSOLE VA-FMC-512 Nota: per maggiori informazioni sugli stati operativi del sistema, consultare la Sezione “Operatività e nomenclatura” del manuale del VAIE 2250. 2.1. Manual emergency activation...

  • Page 5: Broadcast Calls

    2.5. Zone selection The VA-FMC-512 has a key pad to be used for pre-selecting one or more zones to which handsfree messages can be sent or prerecorded messages can be sent / reset. Each key has three LEDs that indicate the status of the zone concerned: Selezione zone (solo FMD 2012) Il modello FMD 2012 è...

  • Page 6: Aux Function

    (ALERT or EVAC) will light up to indicate the ALARM LED and those indicating the type of message sent existing alarm. If a VA-FMC-512 station is used, the LEDs (ALERT or EVAC) will light up to indicate the existing alarm.
  • Page 7 DIGITAL MICROPHONE CONSOLE VA-FMC-512 SETTINGS 3. Setting Address Each station must have its own individual address. To set these addresses press the ALERT, EVAC and RESET/ ACK keys simultaneously, holding them down for more than 3 seconds. 3.1. Address Each station must have its own individual address. To set...

  • Page 8: Microphone Sensitivity

    IMPOSTAZIONI P.T.T. Toggle DIGITAL MICROPHONE CONSOLE VA-FMC-512 Per impostare la modalità a ritenuta ( toggle) del tasto P.T.T., è necessario premere simultaneame 3 secondi i tasti ALERT, EVAC e RESET/ACK. Quando il led RUN/SET termina di lampeggiare re in maniera fissa, rilasciare i tasti. Premendo il tasto RESET/ACK., i led visualizzano l’attuale imposta SETTINGS di fabbrica: toggle OFF ).

  • Page 9: Low-Cut Filter

    LEDs will remain steady ON. To leave the settings mode and save the changes m press the ALERT and EVAC keys again. If you do NOT want to save the changes made, simply wait for the tim DIGITAL MICROPHONE CONSOLE VA-FMC-512 (about 10 seconds), after which the previous settings will be restored.
