NuTone NWO15Z Quick Start Manual

QUICK START GUIDE
Your phone is smart. Your home should be too.
No one offers a safer Z-Wave smart outlet – tamper resistant preventing
children from inserting household objects into outlet. To control your small
appliances or lamps from your favorite Home Automation app you will need to
replace an existing outlet with a NuTone Smart Home Series Outlet. Choose
your favorite Home Automation gateway with Z-Wave, connect it to the internet
and start adding NuTone Smart Home Series Outlets to turn on your coffee pot
when you wake up, automatically turn off your curling iron in the morning, or
schedule anything plugged into the controlled outlet all from your Smart Phone.
A video of this installation procedure can be viewed on-line at:
www.nutone.com/HomeAutomation
For additional help, please view the NWO15Z Troubleshooting and FAQ guide.

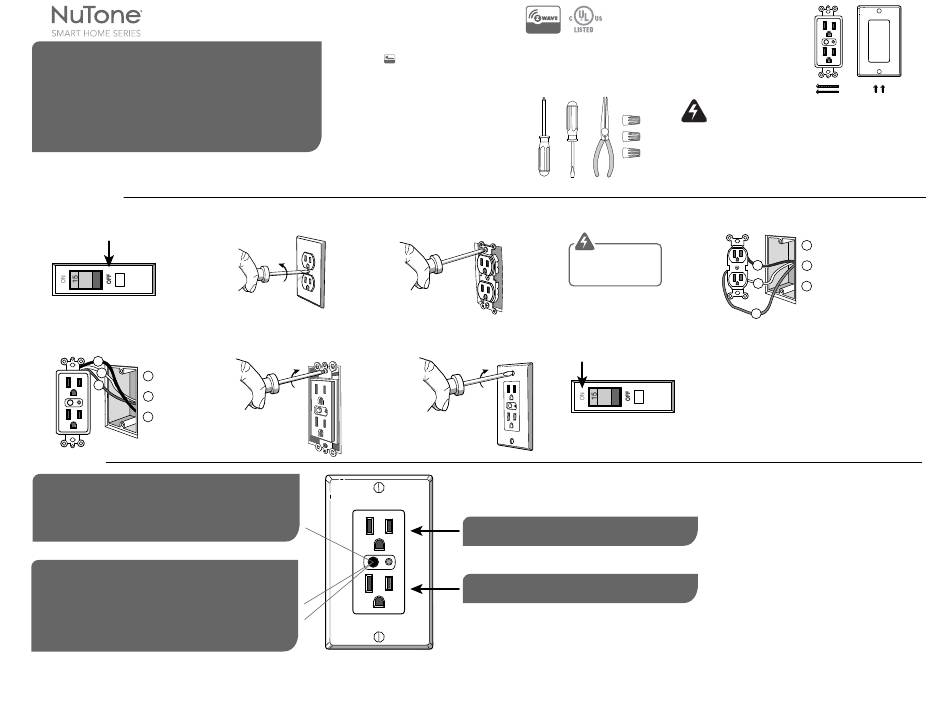

INSTALLATION
1
Turn power OFF for switch at
the main circuit breaker panel.
5
Connect all outlet wires using
wire connectors.
1
2
1 POWER
(BLACK)
3
2
NEUTRAL
(WHITE)
3 GROUND
(GREEN)
OPERATION
Refer to the NWO15Z instructions included with this Smart Wall
Outlet and the Home Automation gateway instructions for your
specific system to assign devices to your system network.
When adding this device to the network, push button once
when your controler indicates.
Turning Z-Wave devices ON or OFF
When your Home Automation gateway has been configured for
all devices connected to the network, the NWO15Z operate as
follows:
•
Push and release to turn power ON
•
Push and release to turn power OFF
•
Or control from your smart phone using your Home Automation app.
SPECIFICATIONS
Power: 120 VAC, 60 Hz
Signal: (Frequency) 908.42 MHz
Range: Up to 100 feet line of sight between the Controller and/or closest Z-Wave repeater.
Broan-NuTone LLC 926 West State Street Hartford, WI 53027
NWO15Z
Smart Wall Outlet
Smart Wall Outlet, 15Amp
Ensure your favorite home automation gateway (SOLD SEPARATELY) has
Z-Wave,
NWO15Z Smart Wall Outlet
The NWO15Z Smart Wall Outlet has
Z-Wave certification which guarantees compatibility.
TOOLS REQUIRED
• Screwdriver, Flat Head
• Screwdriver, Phillips Head
• Pliers
• Wire Connectors
2 3
Remove wall plate from outlet.
6
7
Install in wall box.
NWO15Z
NuTone.com Toll Free (855) 249-0610
connect it to the internet and you are now ready to add the
Remove screws and outlet.
wires in box is turned
8
Turn power ON for switch at
Install wall plate.
the main circuit breaker panel.
ALWAYS POWERED OUTLET
CONTROLLED OUTLET
IC NOTICE
This Class B digital apparatus complies with Canadian ICES-003. Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
COMPONENTS SUPPLIED
• Transmitter
• Screws, Transmitter Mounting
• Wall Plate
• Screws, Wall Plate mounting
DANGER! SHOCK HAZARD. Read and understand
the installation instructions and this quick start guide before
installing. This device is intended for installation in accordance with
the National Electric code and local regulations in the United
States, or the Canadian Electrical Code and local regulations in
Canada. It is recommended that a qualified electrician perform this
installation. Retain instructions and guide for future use.
4
Disconnect all outlet wires.
Ensure power to all
1
OFF.
2
3
9
System Pairing adding the NWO15Z to your controller
1. Place your Home Automation gateway with Z-Wave into
Discovery or Add mode.
2. Follow the instructions in your Home Automation gateway
or app.
3. Refer to your Z-Wave controllers instructions for additional
information on adding devices.
REGULATORY INFORMATION
The NWO15Z is certified to comply with applicable FCC and IC rules
and regulations governing RF and EMI emissions.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesired operation.
FCC NOTICE
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions may
cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
Z-Wave® is a registered trademark of Sigma Designs
1 POWER
(BLACK)
2 NEUTRAL
(WHITE)
3 GROUND
(GREEN)
99045341A
