Summary of Contents for GSS GSS.remote RLC 8

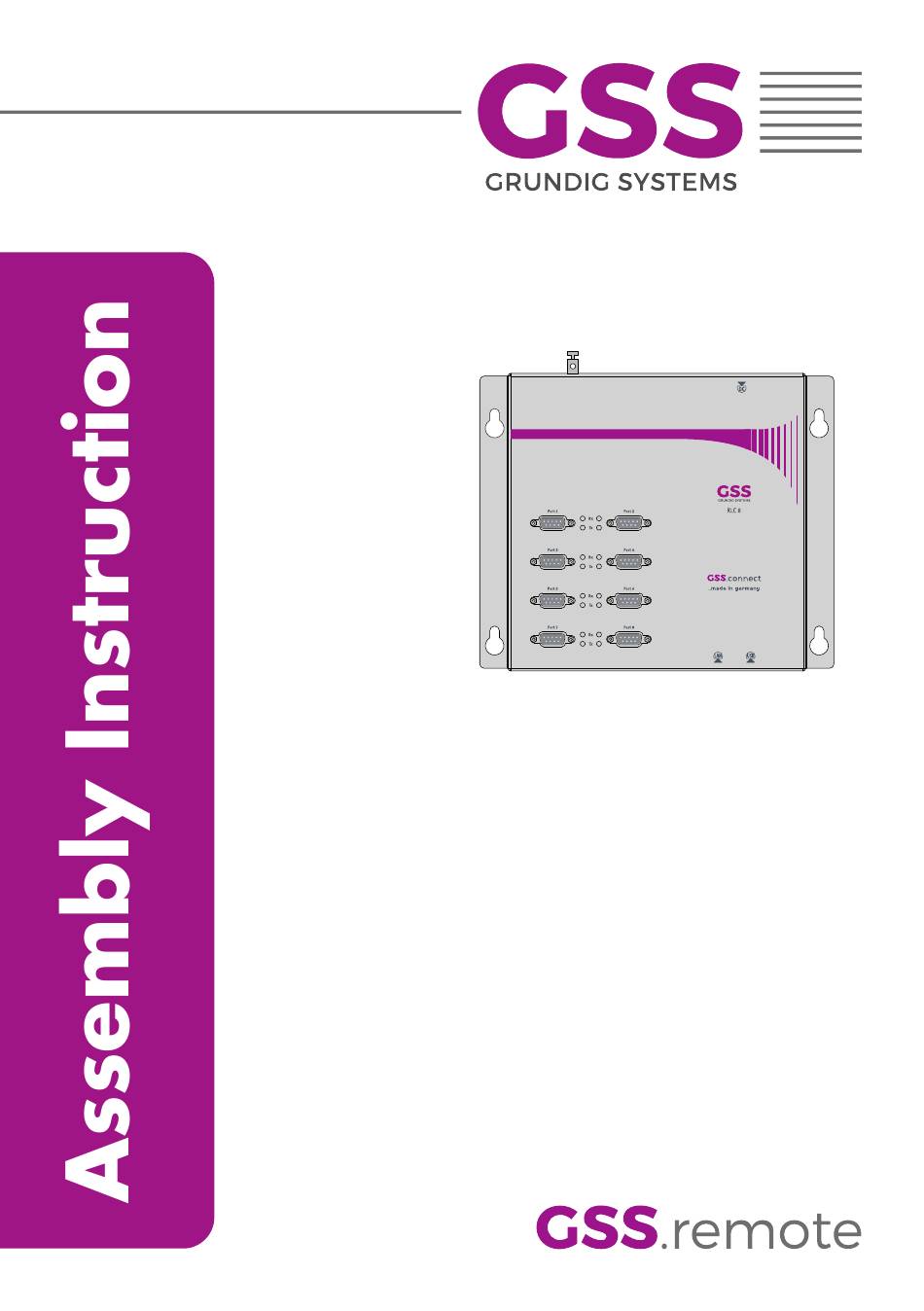

- Page 1 RLC 8...
-
Page 2: Table Of Contents
o n t e n t s 1 Safety regulations ..................3 2 General information ..................3 Packing contents ................3 Meaning of the symbols used ............3 Technical data ................4 Description ...................5 PC / laptop system requirements .............6 Overview of the management unit ...........7 3 Installation ....................8 Potential equalisation (PE) ............8 Assembling a connection cable ............9 Connecting components ..............9... -
Page 3: Safety Regulations
a f e t y r e g u l a t i o n s • Assembly, installation and servicing should be carried out by authorised electricians. • Observe the safety regulations and notes in the assembly instructions for the cassettes and head-end station used as well as the relevant safety instruc- tions e.g the standards EN/DIN EN 50083 resp. IEC/EN/DIN EN 60728. Take action to prevent static discharge when working on the device! e n e r a l i n f o r m a t i o n 2.1 P aC k i n g C o n t e n t s... -
Page 4: Technical Data
2.3 t e C h n i C a l data The devices meet the following EU directives: 2011/65/EU, 2014/30/EU, 2014/35/EU The product fulfils the guidelines and standards for CE labelling (page 30). Connections LAN 1000-BASE-T ............. 1 RJ-45 socket RS-232: .............. -
Page 5: Description
2.4 d es C r i P t i o n The RLC 8 Management System will be connected to a PC or a network via the LAN interface and enables communication between the PC and the connected head-end stations (LAN <-> 8 x RS232). Therefore the Windows software PSW 1000 ist needed. -
Page 6: Pc / Laptop System Requirements
The basic units can be configured and remote controlled via Ethernet with software PSW 1000. The most current version can be downloaded from "www.mygss.eu". A key code (activation code) is required for the activation of the PSW 1000 software. This can be obtained from your regional authorised distributor. The RLC 8 has 8 RS-232 interfaces (Sub D connectors/male) to connect up to 8 headend stations (control units "BE-Remote") to a PC/network. -
Page 7: Overview Of The Management Unit
2.6 o v e rv i e w t h e m a n ag e m e n t u n i t Mounting support Potential equalisation screw RS-232 interfaces Connectors for the head-end stations or a PSCU 6000/HSCU 6000 LEDs "Rx": LEDs "Tx": DC socket +5 V... -
Page 8: Installation
n s t a l l a t i o n – The device should only be installed in a room where the permissible am- bient temperature range (0 °C … +40 °C ) can be maintained, even during fluctuations in climatic conditions. –... -
Page 9: Assembling A Connection Cable
3.2 a s s e m b l i n g C o n n e C t i o n C a b l e External components are connected to the management unit with 1:1 RS-232 cables. You can assemble these cable in the required lengths by using the sup- plied RS-232 plugs and the ribbon cable. -
Page 10: Installing The Software On A Pc Or Laptop
PC n s t a l l i n g t h e s o f t w a r e l a P t o P The basic units can be configured and remote controlled via Ethernet with software PSW 1000. The most current version can be downloaded from "www.mygss.eu". - Page 11 • Start the setup wizard using button "Next >". • Read the license agreement. • If you accept the license agreement select "I accept the agreement" and click the "Next >" button. —> Keep the software version of the PSW 1000 always up-to-date in order to be able to remote control also the newest products. —>...
- Page 12 • Specify the directory in which the PSW 1000 should be installed (e.g. C:\Programme\GSS\PSW1000). • Click the "Next >" button. • Enter a name for the shortcut to the programme which will be created in the start menu. • Click the "Next >" button.
- Page 13 • Click on "Install" in order to proceed with the installation of the programme, or on "Back" to make corrections or changes. —> The installation progress is shown. • Click on "Finish", to complete the installation. - 13 - RLC 8...
-
Page 14: Connecting To A Network
o n n e C t i n g n e t w o r k 5.1 l an C o n f i g u r at i o n The "static" (fixed) IP address 192.168.0.120 and Port 60002 is set to the RLC 8. - Page 15 • Enter the settings necessary for your network. Use only ports in the range of 35000 – 60100 or 61000 – 65000! On request change the password. Note the settings! • Click the "Apply" button in order to save the changes. The changed settings are transmitted to the RLC 8.
-
Page 16: Check The Configuration At The Control Unit Of The Head-End Station
5.2 C h e C k t h e C o n f i g u r at i o n t h e C o n t r o l u n i t t h e h e a d e n d s tat i o n •... -
Page 17: Firmware Update
i r m w a r e u P d a t e • Enter the IP address of the RLC 8 (default http://192.168.0.120) at the address line of the browser and press the "Enter" button: • Enter the user name "admin" and the password ("geheim" is the standard value) and click the "Login"... -
Page 18: Remote Access Via Internet
e m o t e a C C e s s v i a n t e r n e t To get remote access via internet the router connected to the RLC 8 must be connected to the internet. In addition the "public" IP address with which the router is connected to the internet must be known. - Page 19 If no password is set, the following message appears: • Click on button "OK". —> The connecting button changes from If you have entered a wrong password, the following message appears: • Enter the password (case-sensitive). —> The connecting button changes from —>...
- Page 20 Phone: +49 (0) 911 / 703 8877 • Fax: +49 (0) 911 / 703 9210 www.gss.de/en • info@gss.de CLASS CLASS Service: Phone: +49 (0) 911/703 2221; Fax: +49 (0) 911/703 2326; service@gss.de Alterations reserved. Technical data E. & O.E. © by GSS Grundig Systems GmbH 001/2017...
