Enbeam Fibre Optic Splice Closure
208-504 Installation Manual
208-504 is a multifunctional fibre splice equipment which is designed for fibre connection, branching and
terminal connection. This FOSC has three single fibre ports; one fibre port for uncut cable usage, one testing port
(Φ6mm) and four pigtail outlets (Φ2.0mm). It is suitable for wall-mounting, aerial, pole-mounting, especially used
for FTTH fibre distribution. We are always in pursue of doing research and developing the telecommunication
connection equipment. Our FOSC is your reliable choice to guarantee the quality of information transform.
1. Specification
Size H×W×D (mm)
Weight (kg)
Entrances
Suitable cable diameter
Number of trays
2. Internal Structure and Components

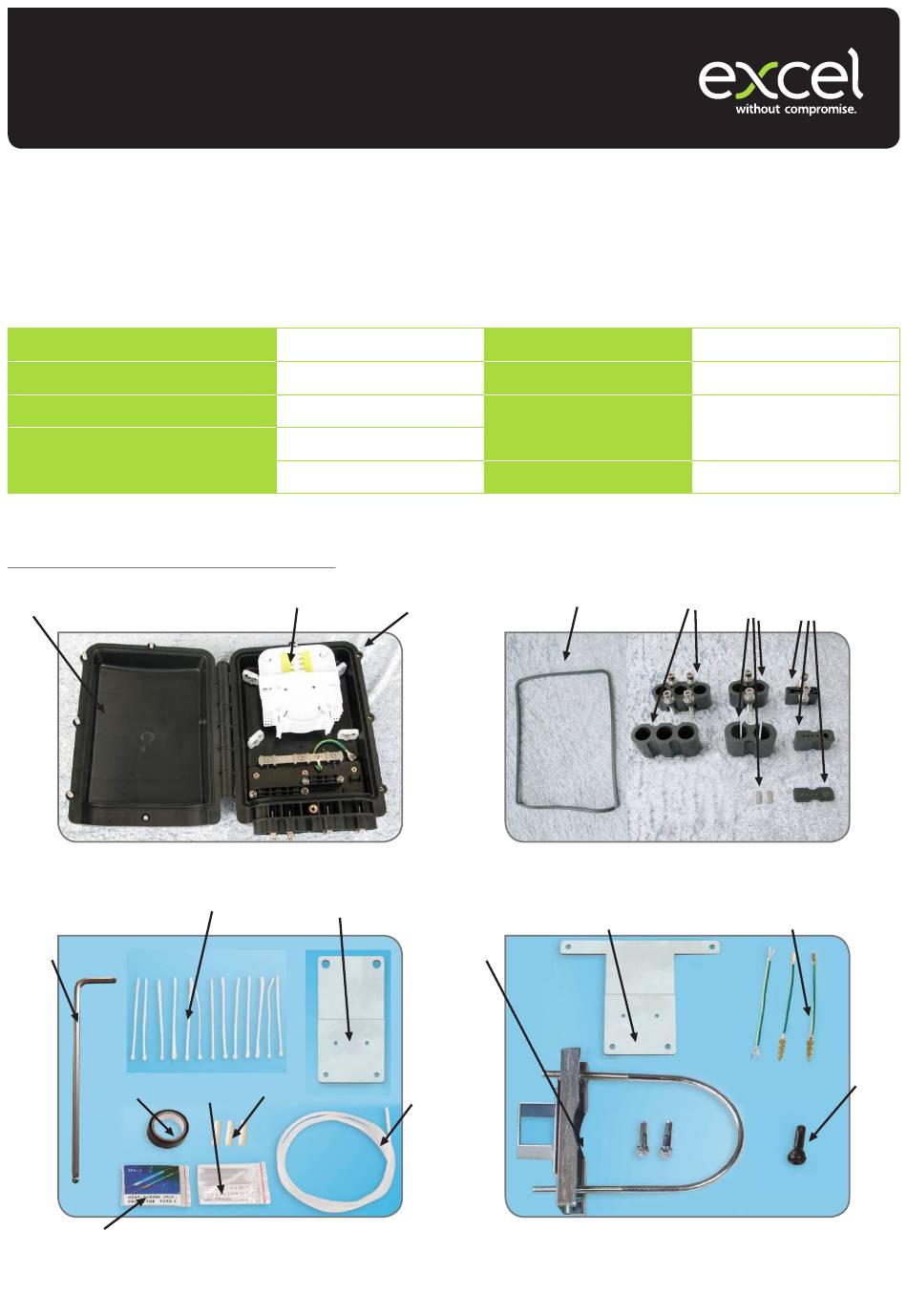

2.1 Pictures of fibre closure and its components:
3
15
12
8
300×220×100
2.4~2.7
5
Ф8~ф15
5
2
9
10
14
11
Max capacity (single fibre)
Airproof style
Capacity of tray
4
1
19
13
60
Mechanical
12
6
5
18
7
17
16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 208-504 and is the answer not in the manual?

Questions and answers

Summary of Contents for Excel 208-504

  • Page 1 Enbeam Fibre Optic Splice Closure 208-504 Installation Manual 208-504 is a multifunctional fibre splice equipment which is designed for fibre connection, branching and terminal connection. This FOSC has three single fibre ports; one fibre port for uncut cable usage, one testing port (Φ6mm) and four pigtail outlets (Φ2.0mm).
  • Page 2: Installation Flowchart

    2.2 Accessories 2.2.1 Main components Number Name Quantity Marks Base Fixing internal structure Fibre splice tray 1 set Fibre splice and storage Cover Seal ring Fixing cover and base Two-hole sealing fixtures Using in the uncut fibre sealing Three-hole fibre cable fixtures Fibre cable sealing Sealed tray bracket 1 set...
  • Page 3 4. Direction 4.1 Preparation 4.1.1 Please check the structure and type of the cable before installation. Different types of fibre can’t be spliced together. 4.1.2 Ensure all seals are mounted correctly and take care not to over tighten. 4.1.3 Keep the working place free from moisture and dust. Don’t give any impact on the cables and don’t bent or entwine cables. 4.1.4 Use appropriate tools according to the approved standard of fibre optic splicing in your region when remove the jacket of cables and assemble the closure.
  • Page 4 4.4.1 Check the specified type and all accessories of the closure 4.4.2 Fix the closure to the fixing bracket 4.4.3 Open the fibre closure Loosen the bolts and open the closure Note. Please be careful when opening the enclosure so as not to damage the seal. 4.5 Installation of cable into the enclosure Loosen all the hexangular bolts installed at the Remove all screws from the required cable...
  • Page 5 4.6.2 Cable installation 4.6.2.1 Thread the fibre and thread it through the compression gland and two-port sealing ring. 4.6.2.2 Insert the cable clamp and secure. 4.6.2.3 Fix the strength member in position as shown below. 4.6.2.4 Store the spare cable in the closure Be careful not to damage the fibre 4.6.3 Cable sealing Fasten the M6x30 bolts using the allen key provided.
  • Page 6: Pigtail Installation

    4.7.2 Cable installation 4.7.2.1 Insert the cable subsequently from three-hole compression gland and three-hole sealing ring. If there are less than 3 pieces of cable, you should seal the port by using the plastic block. 4.7.2.2 Insert the cable through the three-hole cable port into the closure. 4.7.2.3 Fix the core into the fixing pressed hole and fasten the bolts.
  • Page 7 4.8.3 Installation of pigtails and test cable. 4.8.3.1 Insert the cable subsequently through the compression gland, sealing block and rubber seal. If the port is unused, please use the blanking plugs provided. 4.8.3.2 Insert the cable(Φ2.0) together with the sealed fixtures through the button pigtail port in the en-clo sure.
  • Page 8 4.9.5 Install the tray after the splicing 4.9.6 Cable sealing Insert the fixtures to the relative cable port one after another and then fasten the bolts with a spanner. 4.10 Assemble the closure 5.10.1 After the installation of cables, secure the cover and then tighten the bolts by using the spanner properly (less than 50N). 5.10.2 Fibre test and sealing test You can insert the air to test after the sealing of the closure and do the protection of cable.
  • Page 9: Main Technical Data

    4.11.3 Pole-mounting installation 4.11.3.1 Fix the hoop on the concrete pole with the M6×12 screw, then tighten the nut. 4.11.3.2 Fix the closure and tighten the nut. 5. Main Technical Data • Airproof performance: airing pressure inside box 100Kpa, pointer immovability after 24 hours or no air bell within 15min when placed under normal temperature water.
