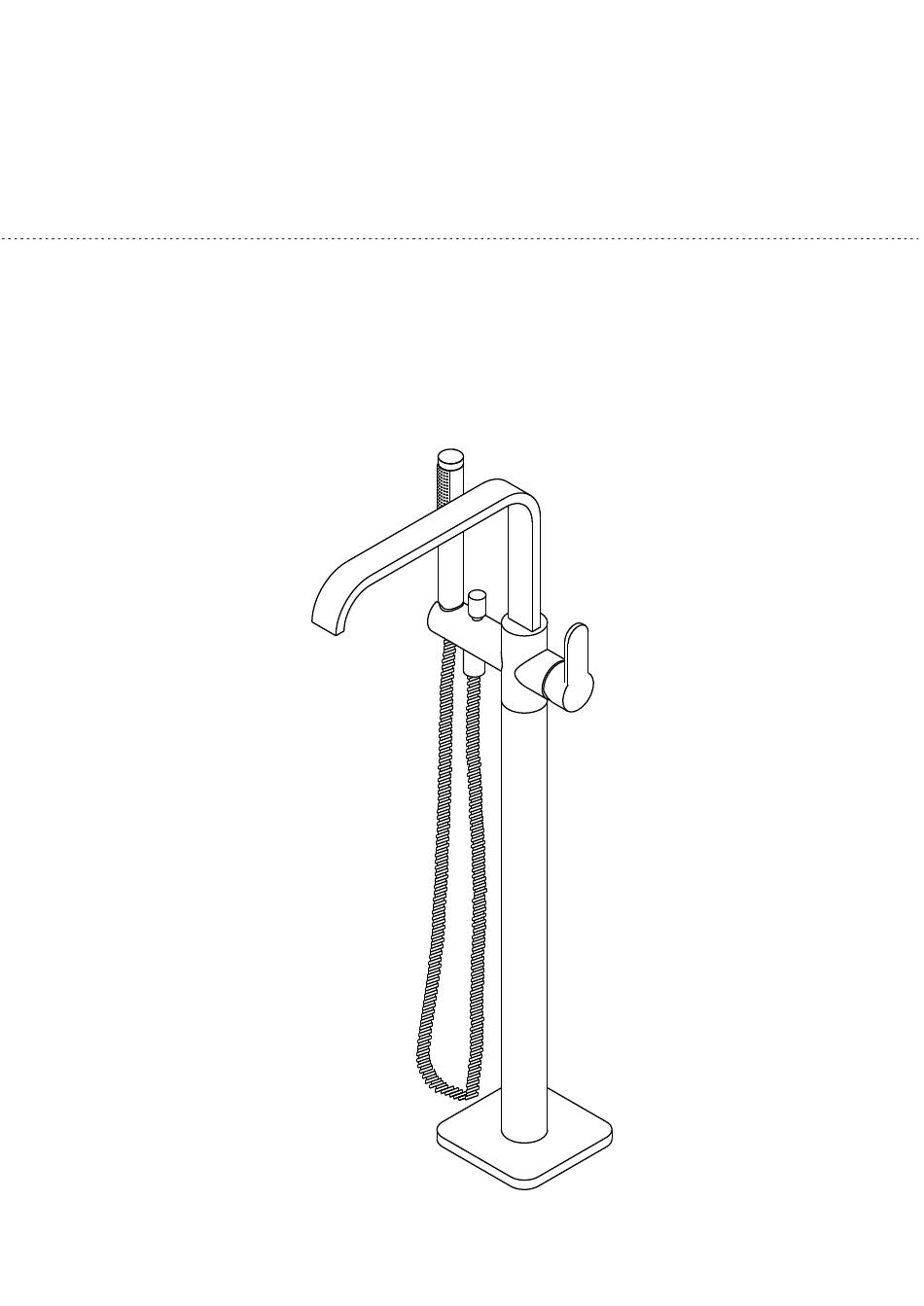

Checking List Name QTY. spout hand shower hose S2mm hex wrench S4mm hex wrench connection pipe water inlet pipe M5x15 hex. bolt M5 washer water test base rubber ring rubber water stop dustproof cover fixing nut rosette expansion anchor bolts plastic box manual water pipe...
Page 5
disassemble and take out put the dustproof cover on cold water fix the position of the tap 90°±2° hot water underground parts installation...
Page 6
Ø10 depth 40 fix the screw position cold connect water pipes highest underground level lowest underground level fasten the bolts after adjusted the level underground parts installation...
Page 7
adjust again the level after fasten the bolts. cold take off the cover cold install water test spareparts underground parts installation...
Page 8
turn the water on under pressure 0.8Mpa, keep for 30min to be sure no water leak. Caution: please decompress the water before unfasten the screw. turn off the water, take off the testing spare parts. install pipe cleaning spare parts. underground parts installation...
Page 9
turn on the valve to let water flush to clean the water pipes turn off the valve, take out the pipe cleaning spare parts. cold put on the cover underground parts installation...
Page 10
paving tiles, use silicon to close the gaps. after everything dried, cut off the upper ground parts. take off the cover underground parts installation...
Page 11
Take out the 2 water inlet pipes from the packing box, fastern them onto the body. CAUTION: One end with thread should be upward, another end with 2 rubber rings is downward. ① install the spout onto the ① connection pipe ②...
Page 12
② ① insert the 2 water pipes in the tap into the holes in the plastic box underground. ① ② fasten the brass nut by 4 screws. push the rosette smoothly ① down to the ground. ② install the hand shower sets. taps installation...
Page 13
turn on the tap, turn the handle according to the marks to adjust the temperature. switch between tap and hand shower by push and pull the diverter. diverter taps installation...
