Summary of Contents for United Safety Incorporated Voltek NS
- Page 1 United Safety Incorporated User’s Guide VOLTEK Spotter VOLTEK Power Line Warning System Remote Control for NS Working with you to keep you safe around overhead power lines Voltek Systems products manufactured by: United Safety Incorporated 3220 US HIGHWAY 93 S...
-
Page 2: For Your Safety

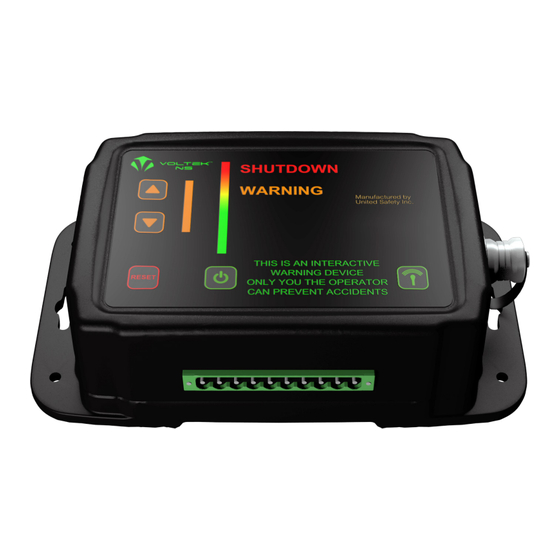

In no event shall United Safety Incorporated or its distributors be liable for any direct, indirect, punitive, incidental, special consequential damages, to property or life, whatsoever arising out of or connected with the use or misuse of our products. - Page 3 Voltek NS User Guide Page 2 Voltek Ns SYSTEM Includes: Spotter Voltek NS external siren 20’ wire harness trim-to-length linear wire antenna power and E-stop connector kit Spotter Battery Chargers wall charger solderable splice connector (x4) (120V AC to 12V DC)
- Page 4 • Antenna self test The Spotter allows you to operate the Voltek NS remotely. SPOTTER features: It features the same controls and user interface as the NS with the addition of a warning button to sound the siren in an emergency and a shutdown button to stop or shutdown your equipment (if integrated).
- Page 5 1. Mounting the Voltek NS main unit: • mount Voltek NS main unit in main access panel or in cab of truck • keep in mid that the pump should be in a central location in order to route harness leads...
-
Page 6: Wire Harness
• the Voltek NS operates on either 12 or 24V DC power systems • it is recommended that the Voltek NS is wired into the PTO system on your pump (when PTO is engaged the Voltek NS will turn on as soon as it receives power and will be ready to operate) •... - Page 7 • install provided heat shrink to secure the wire cap in place IMPORTANT NOTE: Antenna wire ends MUST be connected together-otherwise the Voltek NS will indicate an antenna fault (indicated by dashed lines on E-field meter) and will not function.
-
Page 8: System Overview And Operation
Turning the Voltek NS on: Press and hold the power button for 1 second. When Voltek NS is first turned on it will be set to maximum sensitivity. The Voltek RESET button also flashes for 15 seconds after first powering up. Pushing the flashing reset button will reset the Voltek NS to the previously selected sensitivity level when the unit was turned off. - Page 9 E-field until meter is back in the yellow or green. If the reset button is released before you are back in the yellow or green, the Voltek NS will go back into shutdown mode.
- Page 10 “warning” button allows operator to sound the siren for emergency situations” • “shutdown” button allows operator to shut down equipment in emergency situations (only if Voltek NS is integrated with the E-stop system on equipment) System Overview and operation: shutdown indicator...
- Page 11 30 seconds and the Link button will flash red/green while the Voltek NS continues to operate. Press the Link button on the Voltek NS to stop the alert. If no wireless devices are active, the Link button will turn red.
- Page 12 Link button is flashing red • Constant beeping to warn operator (press Link button to silence) • Failed to receive meter and status data from Voltek NS. (Displays dotted line pattern and Warning indicator) • Failed to transmit button presses to Voltek NS.
- Page 13 Voltek NS User Guide Page 12 Thank You! Thank you for using our Voltek Systems products. Our goal is to keep you accident free and safe. Our products are designed with your day-to-day use in mind. If you have any questions, or comments you wish to share with us-please do! We value your time and your input.
