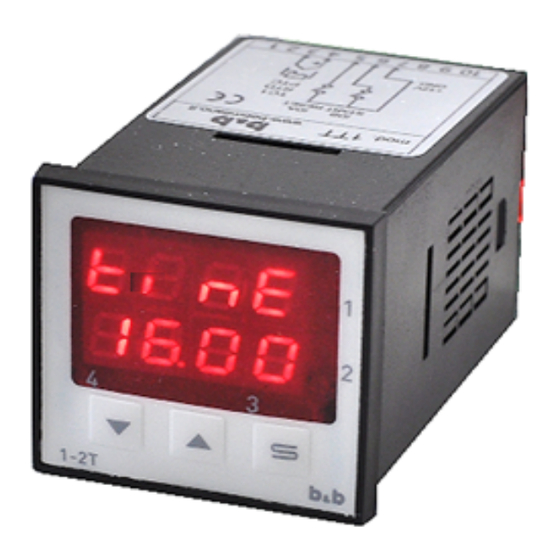

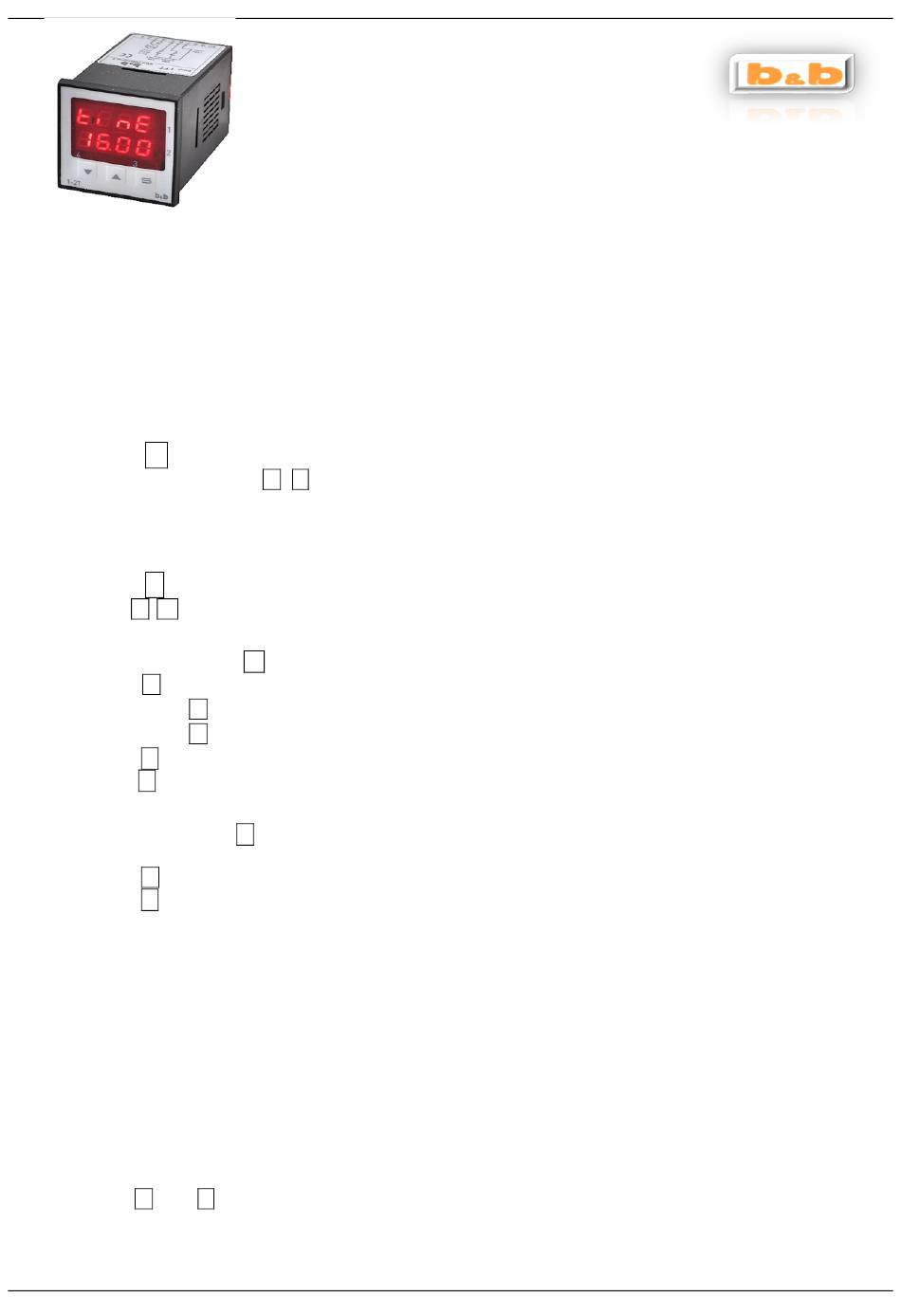

When the device is turned-on its display shows the following text:
-
SEL upper display
-
CAL lower display
After a few seconds the upper display shows the value of the measured temperature;
and the lower display the value of a time set.
Time setting:
S
•
Press the
button, so the upper display will show
•
Use the following buttons ▲ ‚ to set the requested time value.
In order to memorize it, reset ( 7 – 5) or press ON/OFF.
Temperature setting (After time setting)
S
•
Press the
button, so the upper display will show °C and the lower display a temperature value;
Use the ▲ ‚ buttons to set the required temperature value.
TO ACCES THE TEMPERATURE PARAMETERS USING THE PASSWORD.
•
Press for 5 seconds the S button,so the upper display will show
Pres the ▲ button so the upper display will show
•
Press again the ▲ button and the lower display will show
•
Press again the ▲ button and the lower display will show
•
Press the S button and the lower display will show
•
With the S button every pulse corresponds to a parameter (see the Instructions Manual).
TO ACCESS THE TIMER PARAMETERS USING THE PASSWORD.
Press for 5 seconds the S button ; the upper display will show
red led will be switched on (1)
Press the ▲ button and the display will show
Press the S button to access the following parameters:
toP
absolute max limit block
MobE
relay function
InP
pulse timed relay
Rit
delayed relay
dir
count UP or dn
TS
Setting of the times scale
0 = 99,99
1 = 999,9
2 = 9999 sec.
3 = 9999 min.
4 = 59 min. 59 sec.
Use the ▲ and ‚ buttons to select
At the end of every change the display will show 9 9 confirming the successfully completed programming.
www.bebmilano.it
1TT – USER MANUAL
TIMER + TEMPERATURE CONTROLLER
timE
1TT –TIMER + TERMOREGOLATORE - Reference Manual - Pag. 1 di 7
timE
; the lower display the value of one time,
SET and the lower
SET
, the lower timE.
dEv
.
PAS
.
100
; enter the password
SET
, the lower display .
,
t1
.
123.
t1
the upper right
Advertisement
Summary of Contents for B&B 1TT
- Page 1 www.bebmilano.it 1TT – USER MANUAL TIMER + TEMPERATURE CONTROLLER When the device is turned-on its display shows the following text: SEL upper display CAL lower display After a few seconds the upper display shows the value of the measured temperature; and the lower display the value of a time set. Time setting: • timE Press the button, so the upper display will show ; the lower display the value of one time, • Use the following buttons ▲ ‚ to set the requested time value. In order to memorize it, reset ( 7 – 5) or press ON/OFF. Temperature setting (After time setting) • Press the button, so the upper display will show °C and the lower display a temperature value; Use the ▲ ‚ buttons to set the required temperature value.
-
Page 2: Heating Control
Inputs and Outputs : The 1TT device has an input to show the temperature (PV) and two digital outputs (OUT and ALARM). Timer relay contact The small clamps are used as in the following table: 1t regulation channel (SP) Probe input TC 1 (3 - 4+) Output SP (19 - 20) Alarm AL (17 - 18) Timer relay contact Relè (15 - 16) Heating control: If the adjustment channel has been set to heat mode, the temperature control is obtained by the complete PID algorithm or the ON-OFF algorithm with hysteresis. The Act parameter must be set to Hot in order to select the heating action: the activation of the control output causes an increase in temperature because it is connected to a heating element . The selection is made by setting the proportional band ( PB ) : • Setting value 0 ( zero) will enable the ON – OFF adjustment • Setting any value other than 0 will enable the PID adjustment The aforementioned settings are summarized in the table below: Simbolo ON-OFF PID Proportional Band If is set to 0 it will enable ON-OFF PB > 0 – proportional band PID Integral Time Integral Time PID Derivative Time Derivative Time PID (Td=-1 automatic Td= Ti/4) Positive Hysteresis HSO > 0.1°C Negative Hysteresis HSU < 0.1°C... - Page 3 Manual modes (pulse generator) The instrument has two manual modes that exclude the control algorithms and run the control elements at constant power: • Manual mode always on (also with temperature probe); • Manual mode only when there is an error with the temperature probe. Select manual mode (always on) by selecting the parameter MAN = 1 (the MPE parameter is ignored). To select manual mode only when there is an error with the temperature probe by selecting the parameter MAN = 0 and MPE = 1. In both cases the percentage of activation control output is set via the OUT parameter (percentage of the cycle time normally used). Table (summary): MAN MPE Manual mode always on Manual mode in case of error of probe Versions with front display 1TT –TIMER + TERMOREGOLATORE - Reference Manual - Pag. 3 di 7...
-
Page 4: Alarms And Indicators
Alarms and indicators The numbers in the below table (and images) are only shown as an example (illustrative purpose): Temperature over-range Temperature under-range The display flashes between the picture 1 and the picture 2 AutotunE → The display flashes between the picture 1 and the picture 2 ECO mode → The display flashes between the picture 1 and the picture 2 Manual mode in case of error of probe → 1TT –TIMER + TERMOREGOLATORE - Reference Manual - Pag. 4 di 7... - Page 5 2 % Percentage of the range Integral Time 0 :: 999 120 s Integral Time Select -1 to work Derivative Time - 1 :: 999 30 s automatically in Ti/4 OFS TemperatureOffset - 100 :: +100 0 °C Used in case of ON-OFF HSO Positive differential off SET 0 :: 999 0 °C reg. HSU Negative differential off SET 0 :: 999 1 °C Used in case of ON-OFF Absolute Band Alarm Relay - ( 1 off / 2 on ) ALM Relay Alarm Mode Finestra o deviazione Relay - ( 4 off / 3 on ) Solo per allarme relè ALS Setpoint Alarm 0 :: 1 finestra o deviazione ALH Absolute High Alarm . 0 :: 999 600 °C 1TT –TIMER + TERMOREGOLATORE - Reference Manual - Pag. 5 di 7...
- Page 6 0 :: 1 Percent generator come un percentualizzatore La percentuale è calcolata sul parametro OUT Percent manual value) 0 :: 100 50 % TMS (tempo di ciclo in modalità percentualizzatore) Se impostato limita la LSP Display functions 0 :: 1 visualizzazione della temperatura al setpoint TUNe MODE – ACCESS WITHOUT PASSWORD Press for 5 second the S button, the upper display will show SET and the lower t1; press the ▲ button and the timE lower display will show ; press again ▲ and the lower display will show ; press the S button and the upper display will show , the lower no ; Press the ▲ button and the lower display will show the following tune options : = Disabled. = Manual SET UP Output. = At first turning ON. All = At every turning ON. After inserting the the tune mode, the confirmation that the programming has been successfully completed will be 9 9 shown by the flashing on the display. 1TT –TIMER + TERMOREGOLATORE - Reference Manual - Pag. 6 di 7...
- Page 7 1TT –TIMER + TERMOREGOLATORE - Reference Manual - Pag. 7 di 7...
