Burger & Brown Smartflow Thinswitch Installation And Operating Instructions

Liquid-Resistant THINSWIT H
U.S. Patent Nos.
5,446,252
6,982,392
Installation and Operating Instructions
Applies to T-222-LR & HT-291-LR

General

The Thinswitch® Limit Switch verifies ejector plate return when tied
into the machine control. Placed next to the rest buttons in a mold,
the switch protects the mold from premature closure after part
ejection.
The Thinswitch® can also be used with a bolt or pin actuator with a
minimum diameter of 3/8" (9.5mm). Care should be taken to avoid
crushing the housing with the actuator.
The Liquid-Resistant Thinswitch is designed to operate in conditions
where occasional water or oil spray is present. Do not immerse the
switch or subject it to direct, continuous liquid spray.
The Thinswitch® Limit Switch is designed for use in very low power
mold protection control circuits. It is not intended to switch heavy
loads in power applications.

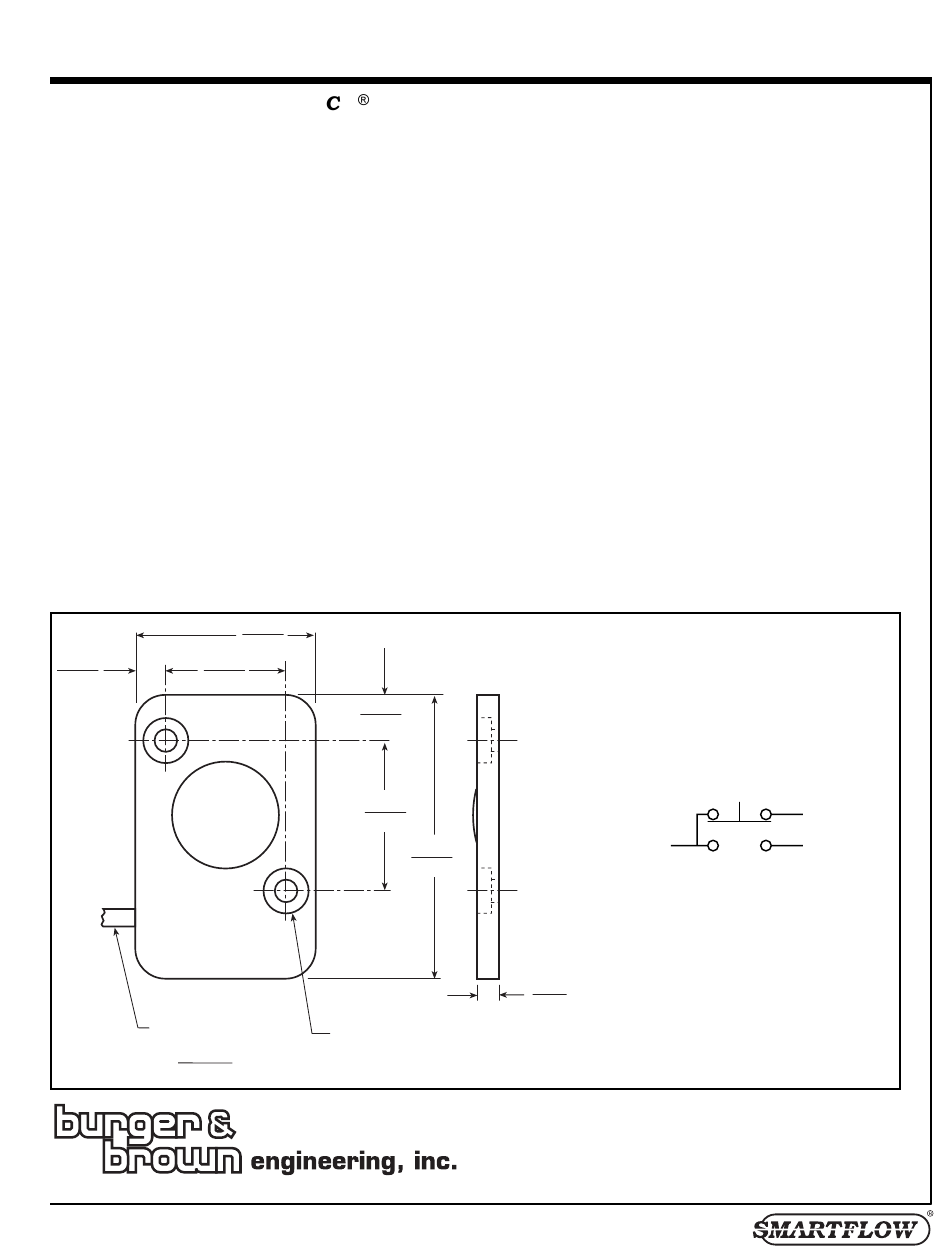

6.4 25.4
1.00
0.25
Cable
mm
Linear =
inches
