XLR Low-Profile Connector
Assembly Instructions
Installing the Low-Profile connectors is quick & easy and below are some tips to get
you on your way to "DIY" custom cable making. Specific instructions for XLR and TA
are clearly noted. Since you're making your own cables we'll assume you know how
to tin the connector cups and prep the cable leads so we will not include these basic
solder techniques in our instructions.
Besides the 1.5mm Hex wrench [which is included] you do not need any special tools
beyond what is standard to install classic straight XLR connectors. Method is the same
for Male or Female connectors.
1.
Remove approximately 12mm of the cable jacket. Fray and twist the shield tight and
TIN ONLY about 4mm at the end.

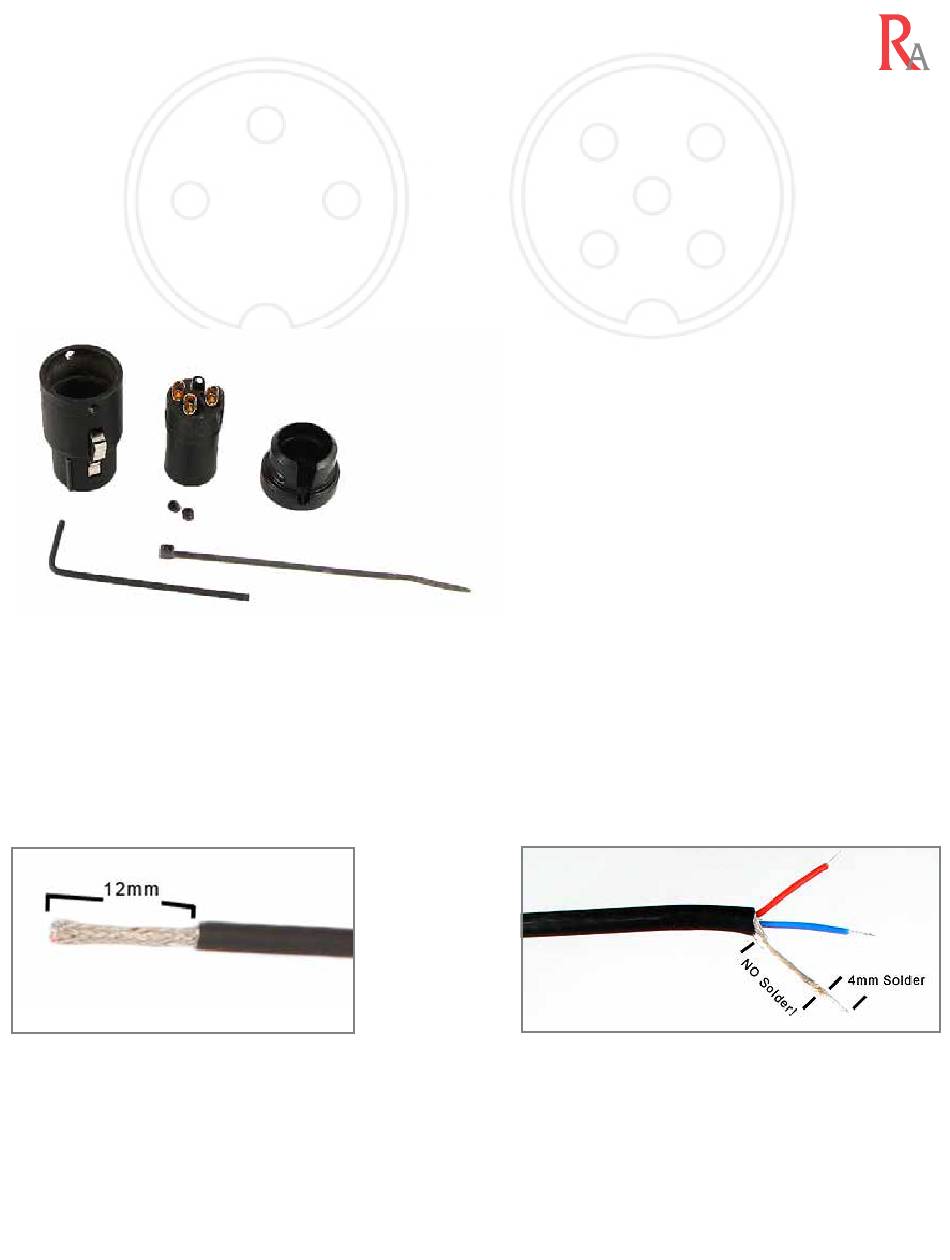

What's in the Package:
- M or F Connector Shell
- Insert, 3-pin or 5-pin
- Color Cap
- (2) Grub Screws
- Mini Zip-Tie
- Hex Wrench
