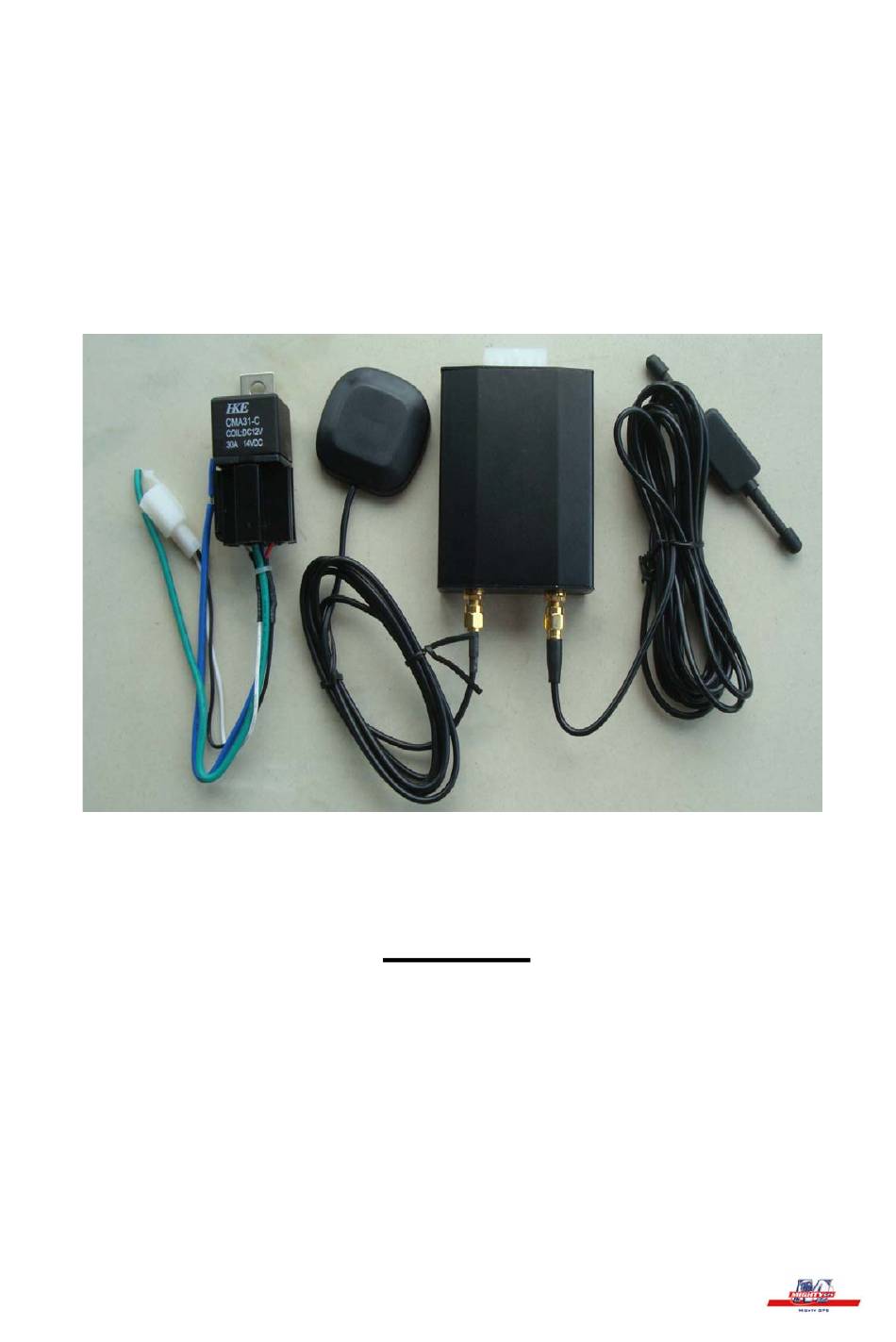

MightyGPS NV-X Tracker
USER MANUAL
Preface
This manual shows how to operate the device smoothly and correctly. Make sure to read this manual
carefully before using this product. Please note that specification and information are subject to changes
without prior notice in this manual. Any change will be integrated in the latest release. The manufacturer
assumes no responsibility for any errors or omissions in this document.
Advertisement
Table of Contents
Summary of Contents for Mighty GPS NV-X
- Page 1 MightyGPS NV-X Tracker USER MANUAL Preface This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual. Any change will be integrated in the latest release. The manufacturer...
-
Page 2: Table Of Contents
Content 1 Summary ------------------------------------------------------------------------------------------------- 2 Application ------------------------------------------------------------------------------------------ 3 Hardware Description 3.1 Wires Connection ---------------------------------------------------------------------------- 3 3.2 Interior ------------------------------------------------------------------------------------- ------- 4 3.3 External Relay Connection ---------------------------------------------------------- ----- 4 Specifications ---------------------------------------------------------------------------------------- 4 5 Battery and SIM Card Installation ------------------------------------------------------------------ 4 6 Startup ------------------------------------------------------------------------------------- ----------- 5 7 Usage --------------------------------------------------------------------------------------------------- -- 5 8 Fortifying Mode --------------------------------------------------------------------------------- --------- 5 8.1 Engine Started Alert ---------------------------------------------- --------- -------- 5... -
Page 3: Application
1 Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or GPRS,and guard against theft of Vehicle. 2 Applications Rental vehicle / Fleet management etc Covert tracking 3 Hardware Description 3.1 Wires Connection Wire 1: LED indicator of working status Wire2: ACC ‘-‘... -
Page 4: Interior
3.2 Interior External relay Connection 4 Specs. - Page 5 Content Specs. Dimension. 80mm x 60mm x 25mm Weight 100g Network GSM/GPRS Band 850/1800/1900Mhz or 900/1800/1900Mhz GPS chip SIRF3 chip GSM/GPRS module Simcom300/Simcom340 GPS sensitivity -159dBm GPS accuracy Time To First Fix Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s Car charger 12—24V input...
- Page 6 Put SIM card B here (back side) Put SIM card A here (front side) Put a SD card here External relay Wire for car oil connecting Connect here with tracker (ref Wire 8 ) Wire for car oil connecting...
-
Page 7: Battery And Sim Card Installation
5 Battery and SIM card installation Make sure that there is no call transfer and call display is on, and PIN code off. The SMS message must in Text format, can’t be identified for PDU format. Steps: 1 Open the cover with GSM/GPS antennas, pick out the mainboard,and put one or two SIM cards into the holder. -
Page 8: Startup
6 Startup Put the SIM card,SD card and battery in place. Connecting the battery with the unit outdoors,while the indicator keep flashing quickly. In 40-60 seconds, the unit will begin to work and acquire the GSM signals as well as the GPS signals. -
Page 9: Engine Started Alert
8.1 Engine Started Alert In fortifying mode, the tracker will start the ACC examine automatically. It will warn up the user when the engine is started. Alert format: fortify! + lat./long. It will keep sending such an alert every 3 minutes, you can send”fortify123456” to stop 8.2 Movement Alert This function is using for the owner to get an alert when the tracker moves out of a restricted district (500m radius),... -
Page 10: Remote Engine Cut-Off Fuction
8.4 Remote Engine Cut-off Function This function is using for the car owner to send a SMS remotely to stop a moving vehicle. 8.4.1 Setup: Send SMS command powercar123456 00 to the tracker to cut off oil and power of the car to stop the car. Reply format: powercar ok. -
Page 11: Authorization
9.2.1 Be sure keep the new password in mind, you have to upload the software to restore the original setting in case of losing the new password. 9.2.2 Make sure the new password is in 6 digits, or else the tracker can not recognize the password. -
Page 12: Auto Track
help me == the SOS message, this section is blank for tracking message 354776031555474== IMEI 05=Means you get 5 GPS fix ( from 3 to 10 ) 43.5=Altitude 460 = MCC Mobile Country Code 01 == MNC Mobile Network Code 2533= LAC Location area code 720B= Cell ID (Remarl:GSM ID can be add or delect accroding to customer’s requirement) -
Page 13: Movement Alert
9.5.1 Send SMS stockade+password+space+latitude,longitude;latitude,longitude to the unit to set the restricted district. Remark :The first latitude&longitude is coordinate of the top left corner of the Geo- fence, while the second latitude&longitude is the coordinate of the bottom right corner. 9.5.2 Send SMS nostockade+password to deactivate this function.. 9.5.3 Response SMS format: stockade!+geo-info. -
Page 14: Imei Checking
The tracker will check the speed in 3 minutes interval and alarm if it is overspeed. ◆ Power on the tracker outdoor when use the tracker for the first time, it can search the GPS signal nearby, it also greatly shorten the time of searching the GPS signal for the future use. -
Page 15: Gsm Id
9.12 GSM ID（this function can be add or delect for customization.） There is GSM ID in each SMS from the tracker. The location of the tracker can be found according to the GSM ID in case of no GPS signal. GSM ID is make up of MCC(Mobile Country Code),MNC(Mobile Network Code),LAC(Location area code) and Cell ID.(refer to 9.3.4) 9.13 Motion Sensor（this function can be add or delect for... -
Page 16: Monitoring Mode
Cancel: Send SMS sdlog+password+0 to the tracker to deactivate the function of storing data in SD card. 9.14.2 Setup: Send SMS readsd+password+space+1 to ask the tracker to send data in the SD card to the GPRS server. Cancel: Send SMS readsd+password+space+0 to ask the tracker to stop sending data in the SD card to the server. - Page 17 Setup: Send SMS apnuser+123456+space+the sim card’s user name. If setup successful, the tracker will reply SMS “apnuser ok”. Cancel: The old APN user name will be invalid automatically when a new APN uer name is set. 11.4 Set APN’s Password Setup: Send SMS apnpassword+123456+space+the sim card’s password.
-
Page 18: Cautions
05===get 5 GPS number 50.1=== Altitude F:4.11V===Full battery power L:3.65V===Low battery power 0===No charging 1===charging 132=== The length of the GPRS string 40512===CRC16 Checksum 460===460 = MCC Mobile Country Code 01==MNC Mobile Network Code 2533==2533= LAC Location area code 720C==720B= Cell ID (NOTE: GSM ID can be add or delect accroding to customer;s quirement.) Notes:... -
Page 19: Faults & Solutions
2. Don’t use & store the unit in dusty places. 3. Don’t put the unit in overheated or overcooled places. 4. Handle carefully. Don’t vibrate or shake it violently. 5. Clear the unit with a piece of dry cloth. Don’t clean in chemicals, detergent. 6. - Page 20 (Remark: There are two ways for the times of sending alarm in each setting.one time and heap of times, which is according to the customer’s requirements; This product also supports sending commands by GPRS server and by USB cable,which the same as SMS commands.)
