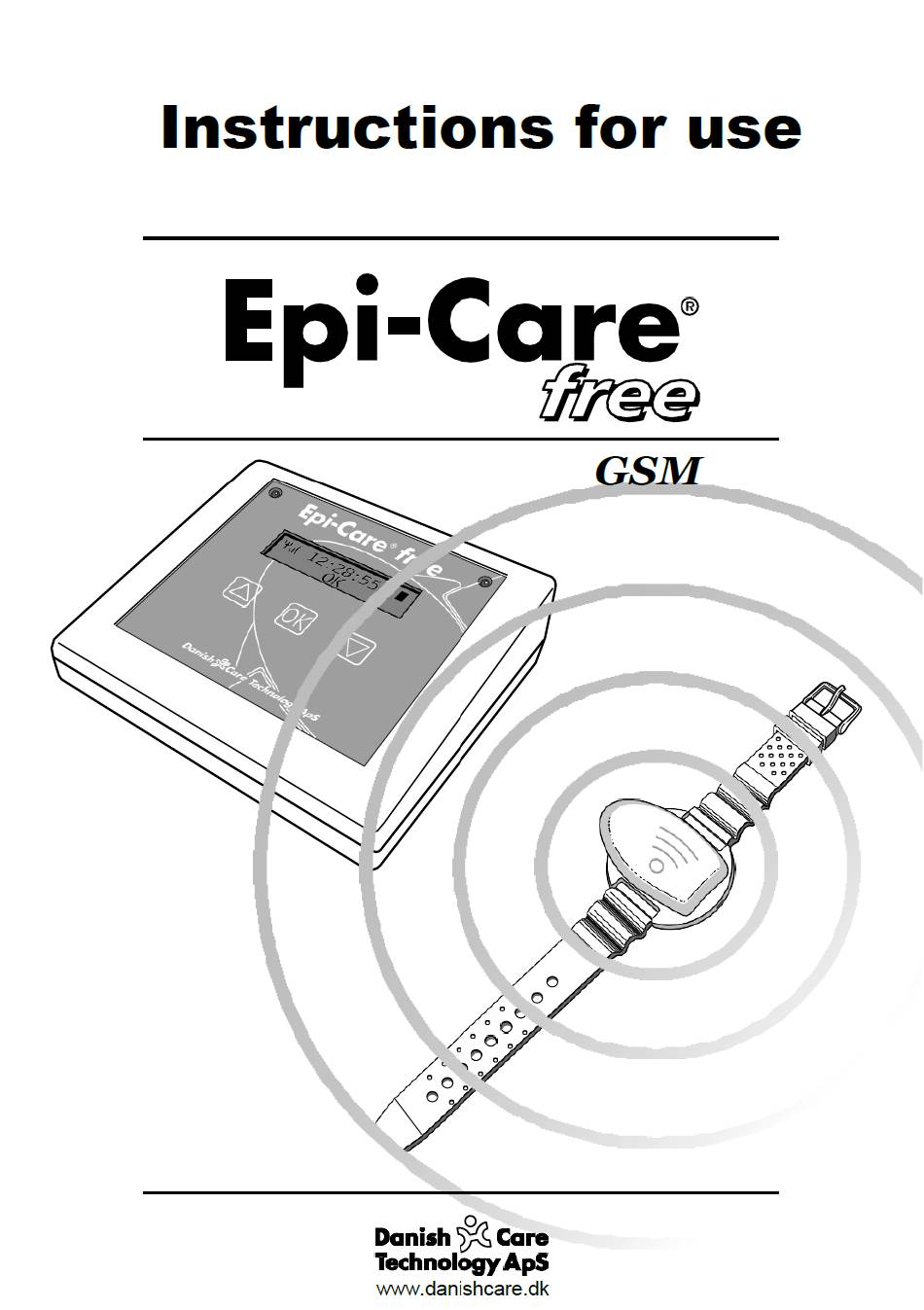

Summary of Contents for Danish Care Epi-Care free
-
Page 2: Table Of Contents
Table of contents Introduction ........................3 Box contents, Accessories ....................4 Connecting the Epi-Care® free ..................5 - 6 Installation of control unit .....................5 - 6 Setup of Epi- C are® free Configuration of alarm number ..................7 Configuring of alarm text Configuring of backup number Checking configuration... -
Page 3: Introduction
Introduction ® The intended use of the Epi- Care free alarm is to ensure, that severe epileptic seizures ® are not overlooked. The Epi- Care free alarm recognizes convulsions, for example the unconscious movements of the arms during generalised tonic/clonic seizures, also ®... -
Page 4: Box Contents, Accessories

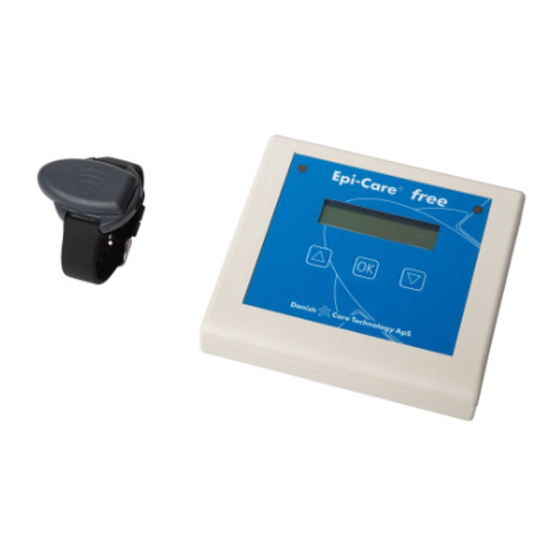

Box contents 1 Armband with sensor rechargeable battery 2 Adapter for the sensor ® 3 Control unit Epi- C are free 4 Adapter for the control unit 5 Instructions for use Accessories In order to gain access to the cellular network a SIM-card must be mounted in the ®... -
Page 5: Connecting The Epi-Care® Free
Connecting the Epi-Care free alarm ® Sensor/armband The sensor is carried like a wristwatch. It can be carried on either the left or the right wrist. The armband must be strapped tightly in order to ensure the sensor follows the movements of the wrist. Only one finger is allowed to slip in between the armband and the skin. - Page 6 Mounting the control unit The control unit can be placed where convenient in an apartment, however not more than approximately 10 meters from the bed. A SIM-card must be inserted into the SIM- card slot on the rear panel of the control unit.
-
Page 7: Setup Of Epi-Care Free
Setup of Epi-Care free ® The Epi- Care ® free control unit must be setup in order for the control unit to send alarm calls and messages to a caretaker. The setup process is done by sending text messages from a regular cell phone to the number of the SIM-card inserted into the Epi-Care®... -
Page 8: Configuring Of Alarm Text
Configuring of an alarm text The alarm text is configured by sending a text message to the Epi-Care® free’s phone number. The message must start with the text “sat1”, followed by a short text, for example a name. The alarm text can contain up to 18 characters, including letters, numbers and spaces. -
Page 9: Operating The Epi-Care Free Alarm
Operating the Epi-Care free alarm ® When the control unit is powered up and the sensor battery is charged, the alarm starts working automatically. The control unit signals, whether the monitoring is working as intended or not, by text in the display and by light and sound signals. Additionally the control unit contains a log function, which keeps record of events during use of the alarm. -
Page 10: The Epi-Care Free Menu System
The Epi-Care free menu system ® The control unit is operated by means of the arrow keys and the OK key. The display shows the time, as well as icons for sensor battery state and cellular network state. Press an arrow key, to enter the menu. Scroll through the menus by using the two arrow keys. -
Page 11: Receiving An Alarm Call
2. OTHER SETTINGS Volume: The volume of the audible signal can be set on a scale from 1-4, where 4 are the loudest. Clock: The clock setting can be changed. Select the menu CLOCK and press OK. Date and time are set by use of the arrow keys. Press OK to move to next step. -
Page 12: Pause Function
Pause function The Epi-Care® free can be set into pause mode. During the pause, monitoring is suspended. The pause function can be used, if the user moves out of range without taking off the sensor. The control unit is put into pause mode by pressing and holding the OK button for approximately 5 seconds. -
Page 13: Troubleshooting
Troubleshooting The Epi-Care® free is developed with focus on ensuring maximum safety for the user and ensuring potential errors are noticed immediately. As part of the safety measures, the Epi-Care® free performs a self-test during start up and daily use. Should faults occur, the control unit will emit a continuous audible alarm tone, LEDs will light red and the text ”ERROR”... -
Page 14: Troubleshooting Table Troubleshooting Sim-Card Faults
Troubleshooting LIGHT/SOUND LIGHT SIGNAL CONTROL SIGNAL SIGNAL TO PROBLEM MENUTEXT UNIT SENSOR CARETAKER Charging of Red LED flashes BATTERY sensor Beeping sound every necessary 10 seconds Sensor out of SENSOR Red LED flashes Flashing Call and text range MISSING Repeated beeping yellow message Sensor shut... -
Page 15: Technical Specifications
Technical specifications ® Technical data of the Epi- C are free alarm Control unit Sensor 700 mA and 12VDC. Power adapter 900 mA and 5VDC Max 8 Watt Build-in battery 9V NiMH battery 4.2V Lithium Polymer Clock Lithium Battery type CR2032 8P8C Modular Con Alarm/Relay Used to transmit alarm... - Page 16 Distributor: Energivej 3 · DK- 4180 Sorø Tlf.: +45 5850 0565 · Fax: +45 4696 4646 E-mail: info@danishcare.dk · Web: www.danishcare.dk...
Need help?
Do you have a question about the Epi-Care free and is the answer not in the manual?
Questions and answers
We have the pager version and don’t seem to be able to connect the pager and get it working. Also since we tried to connect the pager, we aren’t sure if the sensor ‘watch’ is connected.
To connect the Danish Care pager and ensure the sensor is also connected:
1. Wear the Sensor Properly: Place the sensor on the wrist with the armband snug enough that only one finger fits between the band and the skin. It can be mounted in any direction or position on the wrist.
2. Charge the Sensor: Before use, charge the sensor using the included micro USB charger. Connect it to a 220V outlet and plug it into the sensor at the wide end. Charging takes up to 1 hour 15 minutes if the battery is empty. A flashing light indicates charging.
3. Ensure You Are Within Range: The sensor and control unit (pager) must be within 20 meters indoors. If the sensor loses contact, its LED will flash and the control unit will make a sound and send an alarm.
4. Verify Connection: When back in range, the sensor and control unit reconnect automatically.
5. Check for Errors: If the sensor flashes red or the control unit shows warnings like "SENSOR MISSING", troubleshoot by checking battery, range, and power status.
These steps ensure both the pager and the sensor are connected and working properly.
