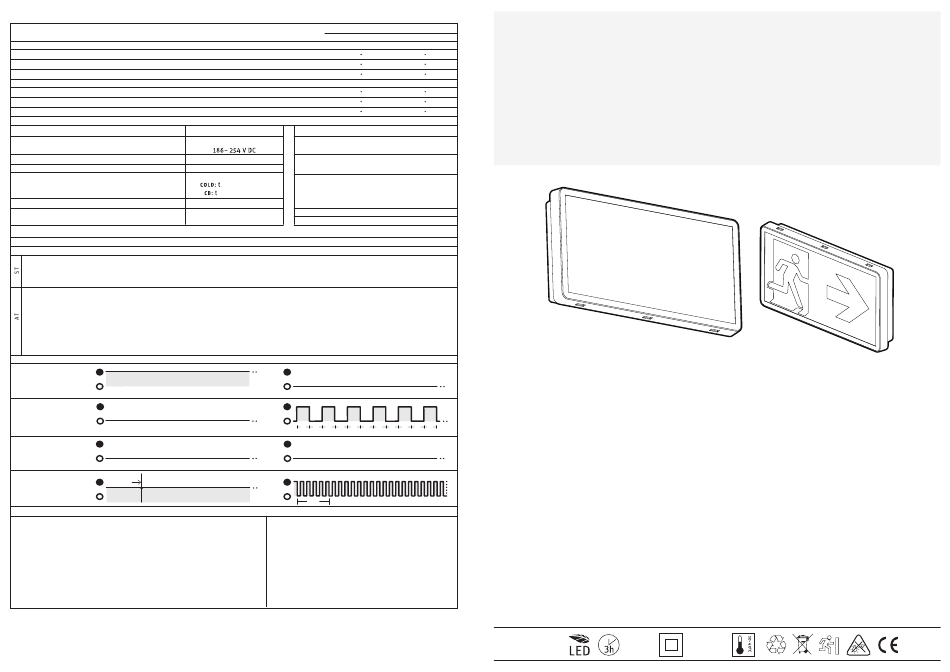

OMS EMY 2980 Series Installation Instructions

Type
Model Light source
STANDARD VERSION
EMY 2981 1 W / 7xLED
2 W / 14xLED
EMY 2982
2983 2 W / 14xLED
EMY
AUTOMATIC SEPARATE TEST
EMY 2984 1 W / 7xLED
EMY 2985 2 W / 14xLED
EMY 2986 2 W / 14xLED
NM - non maintained M - maintained
Power supply 230 V AC ± 10% / 50 - 60 Hz
Power supply - CB version 230 V AC ± 10% / 50 - 60 Hz
Duration of battery charging
Protection level IP
Temperature range t
a
Working humidity range (non-condensing)
Battery life exchange after 4 years
or duration time is not maintain
Testing correct operation of the fitting
Emergency lighting fitting has to be periodically tested in accordance with applicable regulations (norm PN-EN 50172). Test reports are available for inspection.
Everyday Checking if the diode in the fitting lights up.
Once a month Turn off the power supply or push the button activating test mode. The light source should light up and the green led diode
should turn off.
Once a year Turn off its power supply and measure the duration. Check if the duration is not less than the nominal time.
The module automatically conveys two test types: Formating test is performed after 48 hours from the start the device, Test A functional is performed every 30
days. Functional test continues: for modules 3 h — 60 seconds, for modules 1h, 2 h — 30 seconds. Test B of duration (corresponding to the nominal operation
time) performed regularly every 90 days.
Attention! Test A will be shifted foward by 5h if power failure take place in the last 4h before this test. Test B will be shifted foward by 48h if power failure take
place in the last 24h before this test.
Tests can be done manually by using the test button: Test A — press the button for no more than 4 seconds.
Test B — pressing the min. 5 seconds (test can be done after 48 hours of first use of the device).
Information for the nominal operation time! After the start, the red led light goes out at 2 times per second: 1 time for 1 hour module, 2 times for 2 hours,
3 times for 3 hours.
Led indication green
led on
charging mode
led off
led on
test
led off
led on
emergency operation
led off
led on charged
charging
error
led off
Ending notes
1. For cleaning use dry soft cloth. Using aggressive detergents and solvents
is forbidden.
2. Batteries and light source are replaceable. The light source contained in this
luminare shall only be replaced by the manufacturer or his service agent or
similar qualified person.
3. It is recommended to replace the battery every 4 years or when test errors
occurs.
4. LED module (light source) as an integral part of the fitting
5. To maintain the degree of protection IP, power cord should be carry through
the stuffing box or rubber conduit.
The guarantee shall not cover the normal wear and tear of battery packs and light sources. General warranty terms can be found on OMS
website: www.omslighting.com
OMS spol. s r.o., 906 02 Dojč, 419, Slovakia, tel: +421 34 694 0811, www.omslighting.com
Accessories
Time Function Luminous flux
Recessed mounting
3 h M/NM 193 lm / 128 lm
235 lm / 218 lm
1 h M/NM
3 h 235 lm / 218 lm
M/NM
3 h M/NM 193 lm / 128 lm
1 h M/NM 235 lm / 218 lm
3 h M/NM 235 lm / 218 lm
Storage conditions
temperature +10 °C ÷ +25 °C
< 24h dry environment, not exposed to humidity and
IP 65 chemical factors, away from strong magnetic fields
t +10 °C ÷ +40 °C
a
-15 °C ÷ +40 °C
a store (bulk containers) in piles not higher than 1,2 m
-15 °C ÷ +55 °C
a
10% ÷ 85%
maximum storage duration: 6 months
store in original packages
red
led on
led off
led on
led off
1s 1s 1s 1s 1s 1s 1s
led on
led off
1 2 3 4 5
led on
led off
1s
6. Used batteries lamps are products that undergo
utilization and they should be turned over to
utilization centresy.
7. Every cracked protective shield of the fitting should
be repleaced.
WARNING! Faults caused by disregarding fitting's manual
invalidate warranty.
KO-I.OM-OS.V1.0/28.10.2016
Flag mounting
Attention!
1. Luminare installation should be conducted with power supply turned off and in accordance with safety rules,
building norms and norms referring to electric installations.
2. Power supply for fitting should not be connected from circuits which can be loaded with induce receivers
– this may damage electric module in the fitt ing.
1s 1s 1s 1s
3. The fitting is adjusted to indoor usage.
4. The manufacturer reserves the right to change the design of the product.
5. The manufacturer is not liable for any damage caused by connection of the product to defective electrical
installation.
6. The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer
than 0.4 m is not expected.
7. Risk Group 2
CAUTION. Possibly hazardous optical radiation emitted from this product.
Do not stare at the operating light source. May be harmful to the eye.
IP65
906 02 Dojč, 419, Slovakia
Installation instructions
EMY 2980
850°C 230VAC
OMS spol. s r.o.
Tel: +421 34 694 0811
www.omslighting.com
