Installing Cisco RP-Series PDUs
This chapter contains the following sections:
Preparing to Install an RP-Series PDU
Before you install a PDU, plan how to route the power cable. It can be routed through the bottom of the Cisco
R42612 rack, through the two knockout cabling portholes on the top enclosure of the rack, or through the
large opening with brushes at the rear of the top enclosure of the rack.
Installing a Zero-U PDU

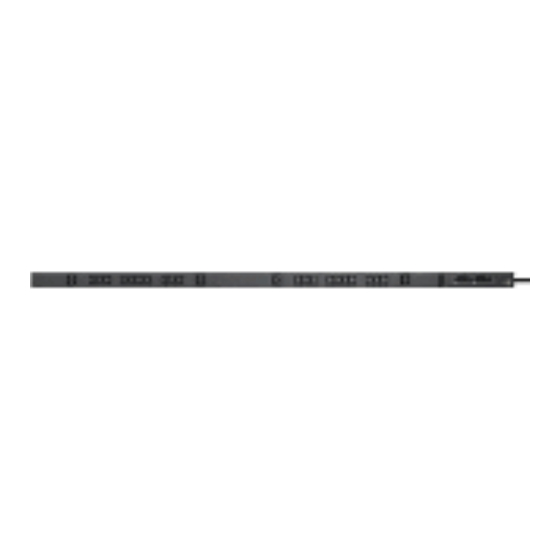

There are five models of PDUs that can be mounted vertically in a Cisco R42612 Rack. These PDUs can be
installed on the PDU trays on both sides of the rack; the PDUs do no require any RU space, so they are also
referred to a zero-U PDUs.
Note
The Cisco R42612 rack can accommodate up to six zero-U PDUs. When servicing Cisco UCS servers, some
products may require the temporary removal of cables to provide service space for rear-facing field replaceable
units (FRUs).
For additional information on how to install a PDU, see the
Quick Start
The following table provides descriptions for these PDUs. For detailed specifications and illustrations, see
PDU
Preparing to Install an RP-Series PDU, on page 1
Installing a Zero-U PDU, on page 1
Installing a 1RU or 2RU PDU, on page 6
or the
Eaton Enclosure Power Distribution Unit (ePDU) G3 - Operations
Specifications.
Eaton ePDU G3 Installation and Connectivity
Manual.
Installing Cisco RP-Series PDUs
1

Advertisement

loading

  Also See for Cisco RP Series

  Related Manuals for Cisco RP Series

No related manuals

  Summary of Contents for Cisco RP Series

  • Page 1 Preparing to Install an RP-Series PDU Before you install a PDU, plan how to route the power cable. It can be routed through the bottom of the Cisco R42612 rack, through the two knockout cabling portholes on the top enclosure of the rack, or through the large opening with brushes at the rear of the top enclosure of the rack.
  • Page 2 Installing Cisco RP-Series PDUs Installing a Zero-U PDU Table 1: Zero-RU PDU Descriptions Product ID Description Plug Country RP208-30M1P-6-36 30 A, metered input, single-phase, L6-30P North America vertical-mount PDU with 6 C19 and 36 C13 connectors RP208-30M3P-6-30 30 A, metered input, three-phase,...
  • Page 3 Connect the device to a grounded power outlet. You can install up to six zero-U PDUs in the Cisco R42612 Rack. When servicing UCS servers, some products may require temporary removal of cables to provide service space for rear-facing field replaceable units (FRUs).
  • Page 4 Installing Cisco RP-Series PDUs Installing a Zero-U PDU Step 2 Slide the PDU down slightly so that it locks into place in the key hole on the PDU tray (see callout 2 in the preceding figure) or the rear-facing flange.
  • Page 5 Installing Cisco RP-Series PDUs Installing a Zero-U PDU Figure 4: Three Zero-U PDUs Installed The following figure shows a single zero-U PDU installed on the rear-facing flange. Installing Cisco RP-Series PDUs...
  • Page 6 Installing Cisco RP-Series PDUs Installing a 1RU or 2RU PDU Figure 5: One Zero-U PDU Installed on the Rear-Facing Flange Installing a 1RU or 2RU PDU The RP208-30M1P-4-8 PDU and the RP208-60M3P-12 PDU mount horizontally in one of the available RU spaces.
  • Page 7 Installing Cisco RP-Series PDUs Installing a 1RU or 2RU PDU Table 2: 1RU and 2RU PDU Specifications Product ID Description Plug Country RP208-30M1P-4-8 30 A, metered input, single-phase, L6-30P North America horizontal-mount PDU with 4 C19 and 8 C13 connectors...
  • Page 8 Installing Cisco RP-Series PDUs Installing a 1RU or 2RU PDU Figure 6: Mounting the RP208-30M-P-4-8 1RU PDU Figure 7: Mounting the RP208-60M3P-12 2RU PDU Installing Cisco RP-Series PDUs...
