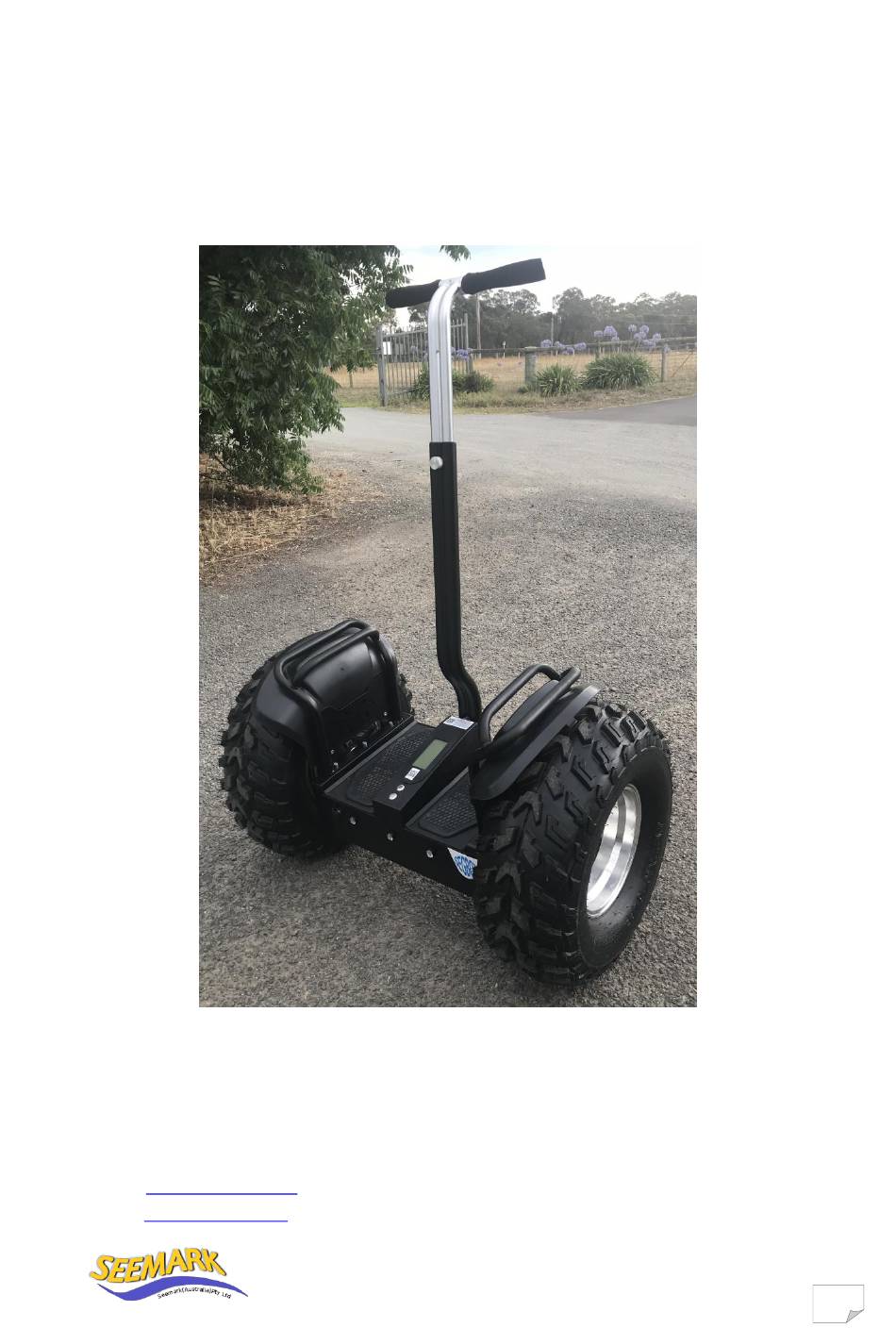

Auto Balanced Scooter
Model
Y-22 Cross-country / 2 Batteries
Instruction
Please read these instructions carefully before using your Auto Balance Scooter.
SEEMARK (AUSTRALIA) PTY LTD
2785 Remembrance Drive, Tahmoor NSW 2573
AUSTRALIA
Ph:
+61 (0)2 4683 1174
E:
sales@seemark.com.au
W:
www.seemark.com.au
1
Advertisement
Summary of Contents for SEEMARK Y-22
- Page 1 Auto Balanced Scooter Model Y-22 Cross-country / 2 Batteries Instruction Please read these instructions carefully before using your Auto Balance Scooter. SEEMARK (AUSTRALIA) PTY LTD 2785 Remembrance Drive, Tahmoor NSW 2573 AUSTRALIA +61 (0)2 4683 1174 sales@seemark.com.au www.seemark.com.au...
-
Page 2: Table Of Contents
Contents 1. Introduction 2. Profile of the auto balance scooter 3. Control device and components of the auto balanced scooter 4. Operational settings 5. Driving of the two-wheeled balanced scooter 6. Battery Charging 7. Maintenance 8. Matters needing attention 9. Technical parameters 1. -
Page 3: Profile Of The Auto Balance Scooter
If an accident or injury occurs as a result of any failure to obey this manual, all responsibility and warranty will be void. Please drive carefully. Eliminating all the risks associated with the operation and maintenance of the auto balanced scooter is unrealistic and impossible, so the operator is required to make timely and accurate judgments in order to prevent injury or death. - Page 4 d) Power switch & light switch e) Wheel motor, hub & tyre f) Charging socket Steering lever Indicator Foot pedals (2) Wheel motor, hub & tyre Power switch & light switch Charging socket a) The steering lever The steering lever is used to control the two-wheel balanced scooter to turn left and turn right.
- Page 5 The steering lever should be locked after fitting by tightening the appropriate stud with hand tools. The steering lever can be removed to aid transportation. b) The Indicator The digital indicator will provide functional information to aid in setting and operating the scooter.
-
Page 6: Operational Settings
4. Operational settings All operational adjustments and settings to this scooter are preset but can be modified to suit the owner/operators personal preferences using a smartphone, either android or iPhone. Each scooter has a “QR Code” attached (and shown below) which can be scanned with the smartphone to download the appropriate “mROBOT”... - Page 7 The driving of the balanced scooter is totally different from the traditional auto operation of other vehicles. There isn’t a traditional brake, accelerator or transmission system. When you drive the vehicle, wear protective clothing, helmet, knee pads, and elbow pads. If you drive the two-wheel auto balanced scooter for the first time, you must read the following guidance carefully or be trained by an experienced user.
-
Page 8: Battery Charging
Turning during travel is accomplished through the steering stem and body coordination. To turn left, the steering lever should have a smooth swing to the left, leaning to the left in the body at the same time. The size of the turning radius is largely dependent on the swing angle of the steering lever. -
Page 9: Maintenance
charger will become hot during charging and must be kept in a well-ventilated place. 7. Maintenance This section covers basic maintenance. Should other problems be encountered it is recommended that the scooter be serviced by the authorized dealer. 1. Power Switch - Please shut off the power switch when the scooter is not used. 2. -
Page 10: Technical Parameters
9. Technical parameters Lithium 72V 9Ah Battery Option 2 batteries 18Ah Option 3 batteries 27Ah Length width height 83cm×46cm×600cm (Package 99cmL x 56cmW x 66cmH) The vehicle weight 60kg (Packaged 85kg) Power 1,000 Watt brushless dc motors contained within each wheel Operational settings Adjusted with smartphone and “mRobot app”... - Page 11 To be completed and retained by the purchaser The record of the scooter body Customers name Purchase date Contact address Product model Invoice number Serial number The sales agent SEEMARK (AUSTRALIA) PTY LTD Maintenance record Maintenance date Maintenance content Remarks The product list Product name unit quantity...
- Page 12 Golf bag support frame Optional Helmet Optional Flashing light Optional Please return this document once completed to: SEEMARK (AUSTRALIA) PTY LTD PO Box 151 Tahmoor NSW 2573 Australia Email sales@seemark.com.au This information will be retained by SEEMARK for future reference.
