Summary of Contents for GENERATION HB50
- Page 1 Hybrid Heat Pump Water Heater Touch Screen Display User Operating Instructions...
- Page 2 Start Up Screen • Water Heater is OFF • Control Board has 240V power • TSD and communications link are OK • Notice “Water Heater Disabled” • Press Standby to start machine...
-
Page 3: Home Screen

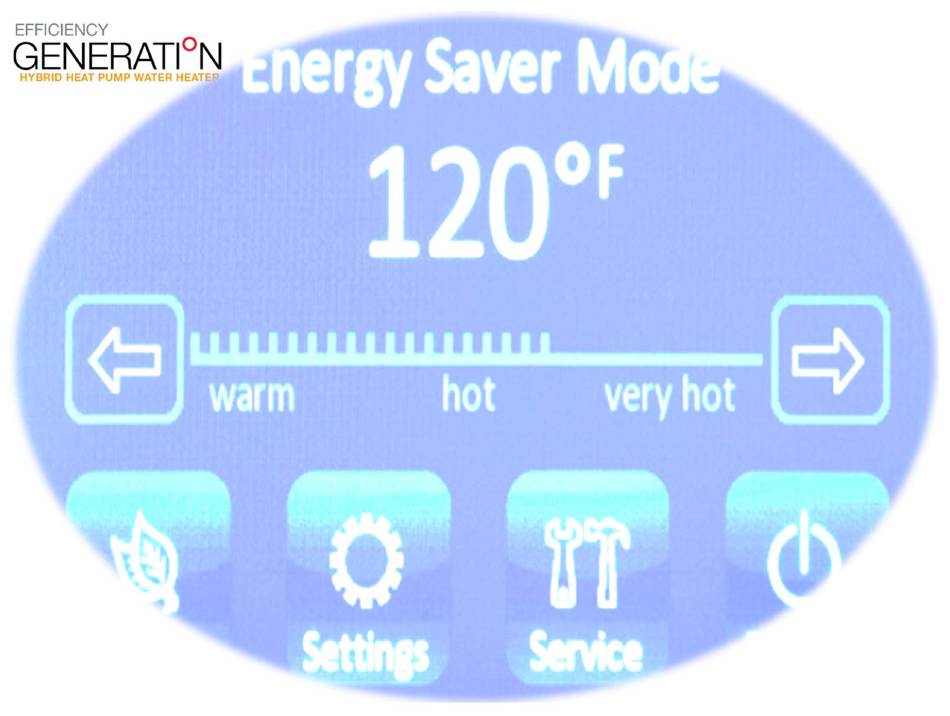

Home Screen • HB50 is factory set to run in Energy Saver Mode • Water temperature setting is factory set to 120 • Notice “Standby” changed to “Enabled” • This button will cycle the water heater ON and OFF... - Page 4 Mode • Energy Saver Mode – Combination of heat pump and elements • Heat Pump Only Mode – Highest EF rating – Does not use elements • High Demand Mode – Combination of heat pump and elements – Best performance • Electric Heat Only Mode – Non‐simultaneous heating elements • Vacation Mode – Select 2 – 28 days – “HOLD” setting for indef...
- Page 5 Settings • Select – Fahrenheit – Celsius • Lock / Unlock the Home Screen • Enable / Disable Audible Alarms...
- Page 6 Service • Displays current status of the machine • System • Sensors • Alarms...
- Page 7 System • Model Number • Serial Number • Software Versions – Control Board – Display (TSD) • Network Instance for EcoNet • System Test – Select Test...
-
Page 8: Select Test
Select Test • Select Test – Upper Element – Lower Element – Compressor – Evap Fan Lo Speed – Evap Fan HI Speed • Press Start Test... -
Page 9: Start Test
Start Test • Press Start Test • Control Board sends current to the part • You can verify current with a multimeter • Part should be working • Press End Test when completed... - Page 10 Sensors • Shows thermistor temperature reading of areas being monitored • Shorted thermistor will read “250 F” • Open thermistor will read “‐40 F”...
- Page 11 Alarms • Shows current alarms – Press Clear Alarms to reset • Shows alarm history – Press Clear History to reset...
- Page 12 Hybrid Heat Pump Water Heater Touch Screen Display User Operating Instructions 800‐995‐0982...
