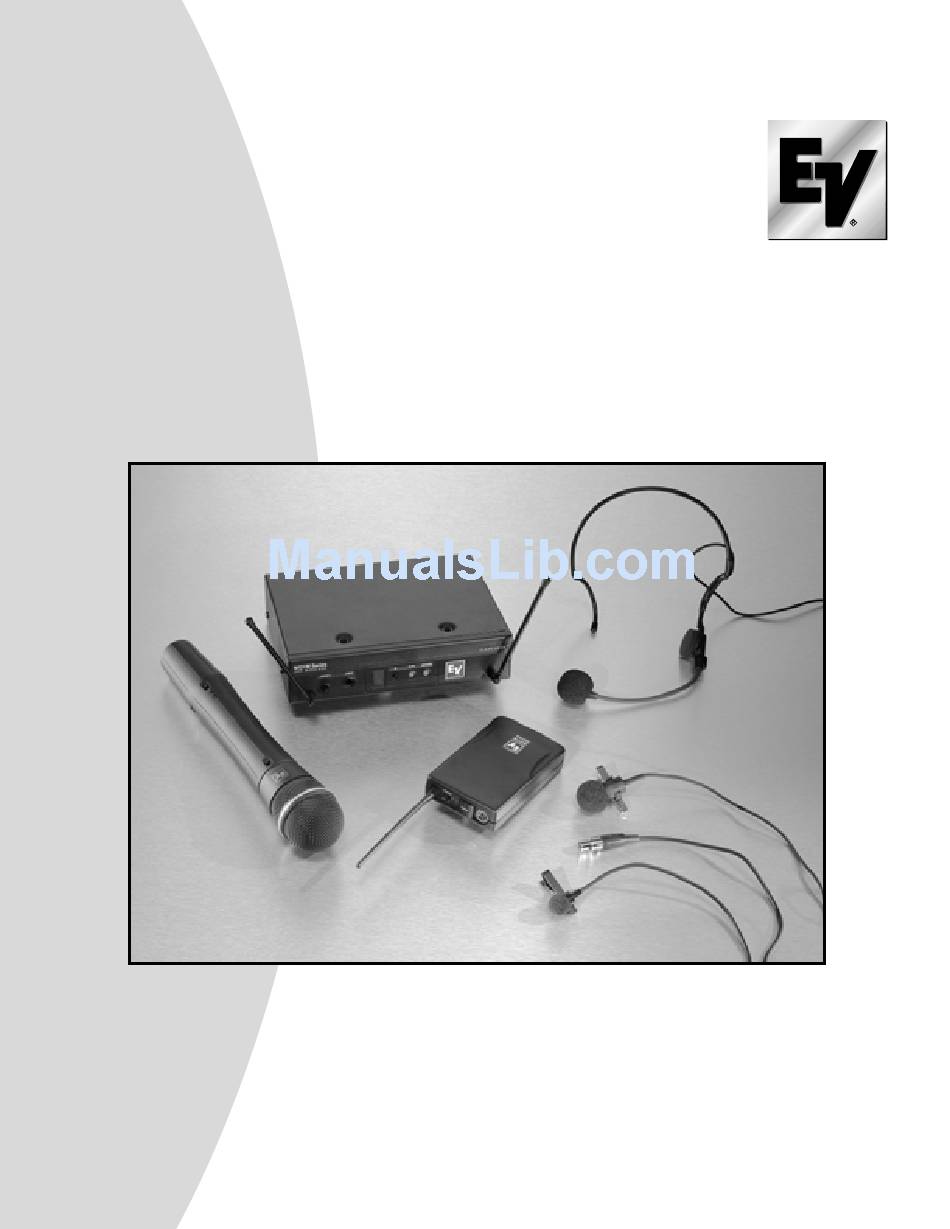

Page 1: User Guide
N/DYM SERIES WIRELESS USER GUIDE GEBRAUCHSANWEISUNG MODE D’EMPLOI INSTRUCCIONES DEL USUARIO D R A H T - M I K R O F O N - S Y S T E M S Y S T E M E D E... -
Page 2: Table Of Contents
ENGLISH Table of Contents 1. Quick System setup guide 2. System Description 3. Detailed system/component setup instructions 3.1 Receiver Setup & Operation 3.2 Handheld Transmitter Setup 3.3 Beltpack Setup 4. Guidelines/Recommendations for best performance 5. Troubleshooting Guide 6. Technical Specifications 7. -
Page 3: System Description

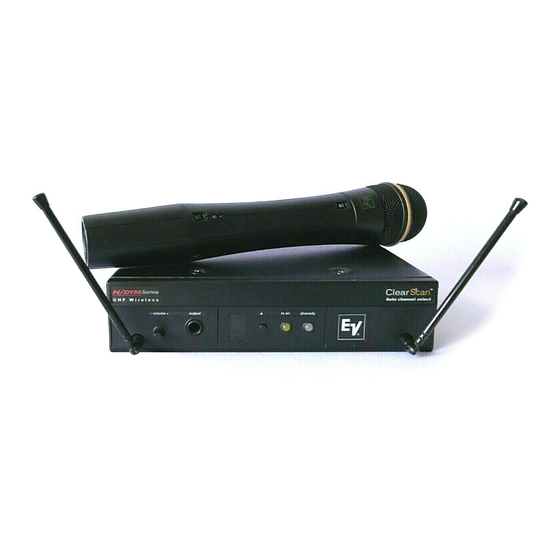

The Electro-Voice N/DYM Wireless is a series of 10 channel frequency agile UHF wireless systems that combine EV’s legendary quality and reliability with high value. The N/DYM Series transmitters and receivers operate in the UHF frequency range on one of ten channels between 800 and 814 MHz. The well-designed audio circuitry ensures excellent signal-to-noise ratio with accurate sound quality. - Page 4 ENGLISH Figure 1. Front View Figure 2. Rear View 5. Channel change lock-out. Once the channel has been set on the receiver, the N/DYM system has the capability to deactivate or lock-out the channel change button. This is done by depressing the set button for 10 seconds or more.
-
Page 5: Handheld Transmitter Setup
3.2 Handheld Transmitter Setup 1. Insert battery. Slide open the hinged battery compartment cover by placing your thumb on the indents of the battery door (at the bottom of the transmitter) and gently pushing down (see Figure 3). Insert the battery, terminal end first, into the compartment, with the smaller positive terminal to the right. -
Page 6: Bodypack Transmitter Setup
ENGLISH 3.3 Bodypack Transmitter Setup 1. Insert battery. Open the hinged battery compartment by placing your thumb or finger on the indent labeled OPEN on the battery door and pushing down, see Figure 6. When inserting the battery, pay attention to the polari- ty (+/-) and insert the terminals into the battery compartment first. -
Page 7: Guidelines/Recommendations For Best Performance
Figure 6. 4 Guidelines/Recommendations for best performance Compatibility The receiver and transmitter must be set to the same channel to operate together. Using Multiple Wireless Systems If two or more N/DYM Wireless and/or other VHF/UHF wire- less systems are being used in the same location, proper fre- quency coordination is necessary to avoid interference. -
Page 8: Troubleshooting Guide
ENGLISH 5 Troubleshooting Guide Problem No audio & no lights on receiver No audio & no Tx ON light on receiver No audio Low audio signal. Distorted audio signal. Interference Short range or drop-outs. Possible Causes Receiver is off Transmitter is off. No ( or dead ) battery in transmitter. -
Page 9: Technical Specifications
6 N/DYM Wireless Series System Technical Specifications UHF Receivers: NRU and NRU-G Receivers Receiver Type Frequency Range (RF) Number of Selectable Channels Diversity RF Sensitivity FCC Data Audio Output, Frequency Response Audio Output, Balanced (XLR) Audio Output, Unbalanced ( Distortion Signal-to-Noise Ratio Dynamic Range UHF Transmitters: NBPU, NBPU-G, NHTU-N1, NHTU-N2... -
Page 10: Certifications
ENGLISH 7 Certifications CERTIFICATIONS NRU, NRSCU, Certified to ETS 300 445, Conforms to European Union directives, eligible to bear CE marking. NHTU, NBPU, Certified to I-ETS 300 442 and ETS 300 445, Conforms to European Union directives, eligible to bear CE marking. Licensing of Electro-Voice equipment is the user’s responsibility and license eligibility depends on the user’s classification, and frequency selected. -
Page 11: Service/Warranty
(1) year from the date of original purchase. The Limited Warranty does not extend to cables or cable connectors. Additional details are included in the Uniform Limited Warranty Statement. Telex EVI Audio GmbH Hirschberger Ring 45... - Page 12 (1) year from the date of original purchase. The Limited Warranty does not extend to cables or cable connectors. Additional details are included in the Uniform Limited Warranty Statement. EV Audio Service c/o Telex Communications 8601 E. Cornhusker Highway Tel: 402/467-5321...
- Page 13 Telex Communications Inc., 12000 Portland Ave. South Burnsville, MN 55337, USA 800/328-3771, 952/884-4051, Fax: 952/884-0043 © Telex Communications, Inc. 2000 o Litho in U.S.A. MANUAL - N/DYM Series Wireless PN 802989...
