This installation guide for Everlux Signage Systems aims to provide the practical guidelines for a proper
installation of Excellence signage.
I – Before Installation
General considerations
In order to maximize the quality of the installation as well as its efficiency and effectiveness it is essential that
before the installation the installer do a rigorous analysis of the type of surface where the signage should be
installed. The installation method shall be selected considering the application surface.
Note: A rough and porous wall will not allow the application of self-adhesive elements and may require fixing by
using screws. However smooth surfaces provide good fixing conditions for gluing.
Selecting an installation method

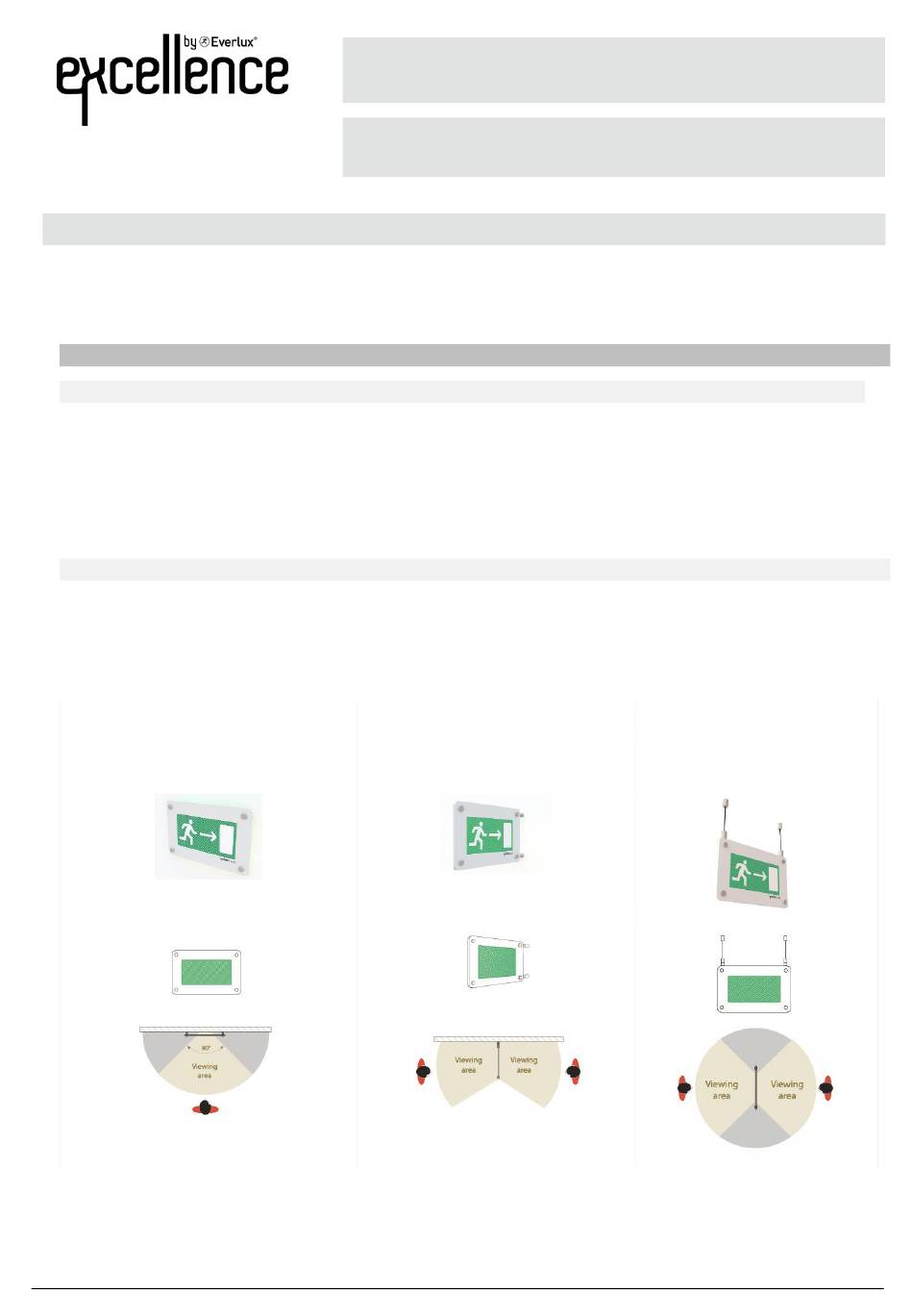

Different types of signage can be selected depending on the desired viewing angle. There are 3 possible
installation types available for the Excellence signage:
Wall mounted
Single sided installation
Directly installed on to the surface
Mod.277_EXC_EN
Technical Characteristics
Excellence Installation Guide
Perpendicular to the wall
Single or double sided sign.
.
Suspended from the ceiling
Single or double sided sign.
Edição: 08-03-18
Página 1 de 4
