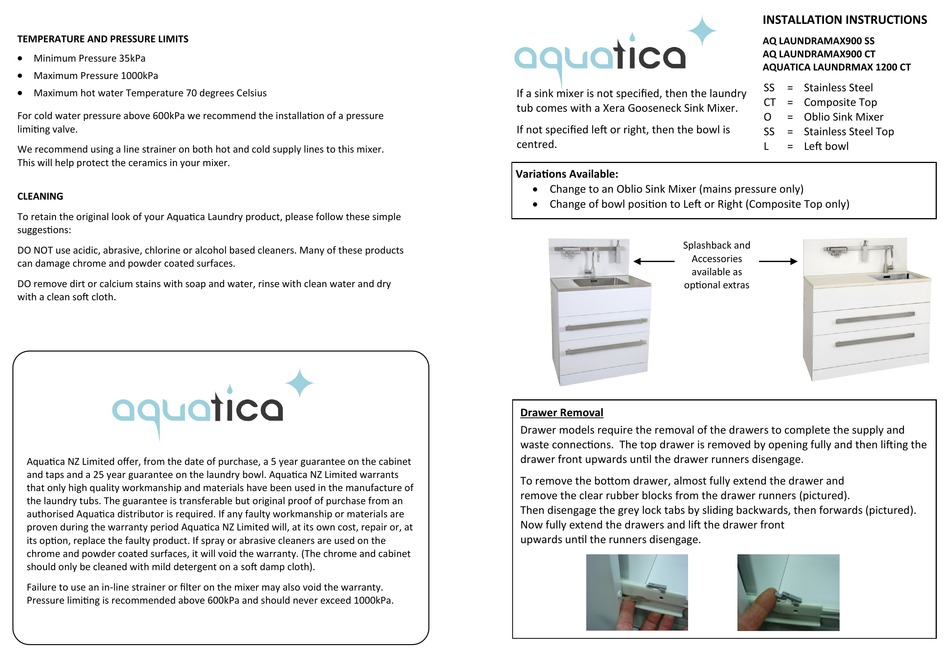

Aquatica Digital AQ LAUNDRAMAX900 SS Installation Instructions

TEMPERATURE AND PRESSURE LIMITS


Minimum Pressure 35kPa

Maximum Pressure 1000kPa

Maximum hot water Temperature 70 degrees Celsius
For cold water pressure above 600kPa we recommend the installation of a pressure
limiting valve.
We recommend using a line strainer on both hot and cold supply lines to this mixer.
This will help protect the ceramics in your mixer.

CLEANING

To retain the original look of your Aquatica Laundry product, please follow these simple
suggestions:
DO NOT use acidic, abrasive, chlorine or alcohol based cleaners. Many of these products
can damage chrome and powder coated surfaces.
DO remove dirt or calcium stains with soap and water, rinse with clean water and dry
with a clean soft cloth.
Aquatica NZ Limited offer, from the date of purchase, a 5 year guarantee on the cabinet
and taps and a 25 year guarantee on the laundry bowl. Aquatica NZ Limited warrants
that only high quality workmanship and materials have been used in the manufacture of
the laundry tubs. The guarantee is transferable but original proof of purchase from an
authorised Aquatica distributor is required. If any faulty workmanship or materials are
proven during the warranty period Aquatica NZ Limited will, at its own cost, repair or, at
its option, replace the faulty product. If spray or abrasive cleaners are used on the
chrome and powder coated surfaces, it will void the warranty. (The chrome and cabinet
should only be cleaned with mild detergent on a soft damp cloth).
Failure to use an in-line strainer or filter on the mixer may also void the warranty.
Pressure limiting is recommended above 600kPa and should never exceed 1000kPa.
If a sink mixer is not specified, then the laundry
tub comes with a Xera Gooseneck Sink Mixer.
If not specified left or right, then the bowl is
centred.
Variations Available:
 Change to an Oblio Sink Mixer (mains pressure only)
 Change of bowl position to Left or Right (Composite Top only)
Splashback and
Accessories
available as
optional extras

Drawer Removal

Drawer models require the removal of the drawers to complete the supply and
waste connections. The top drawer is removed by opening fully and then lifting the
drawer front upwards until the drawer runners disengage.
To remove the bottom drawer, almost fully extend the drawer and
remove the clear rubber blocks from the drawer runners (pictured).
Then disengage the grey lock tabs by sliding backwards, then forwards (pictured).
Now fully extend the drawers and lift the drawer front
upwards until the runners disengage.
Installation INSTRUCTIONS
AQ LAUNDRAMAX900 SS
AQ LAUNDRAMAX900 CT
AQUATICA LAUNDRMAX 1200 CT
SS = Stainless Steel
CT = Composite Top
O = Oblio Sink Mixer
SS = Stainless Steel Top
L = Left bowl
