Fire Burglary Instruments XL560 Installation Instructions

Fire Burghy
Instruments, Inc,
II '
INSTALLA'TION
XL5601561
INSTRUCTIONS
I)
50 Engineers Road, Hauppauge. New York 11788
7
5 wire remote/master keypad
intro?

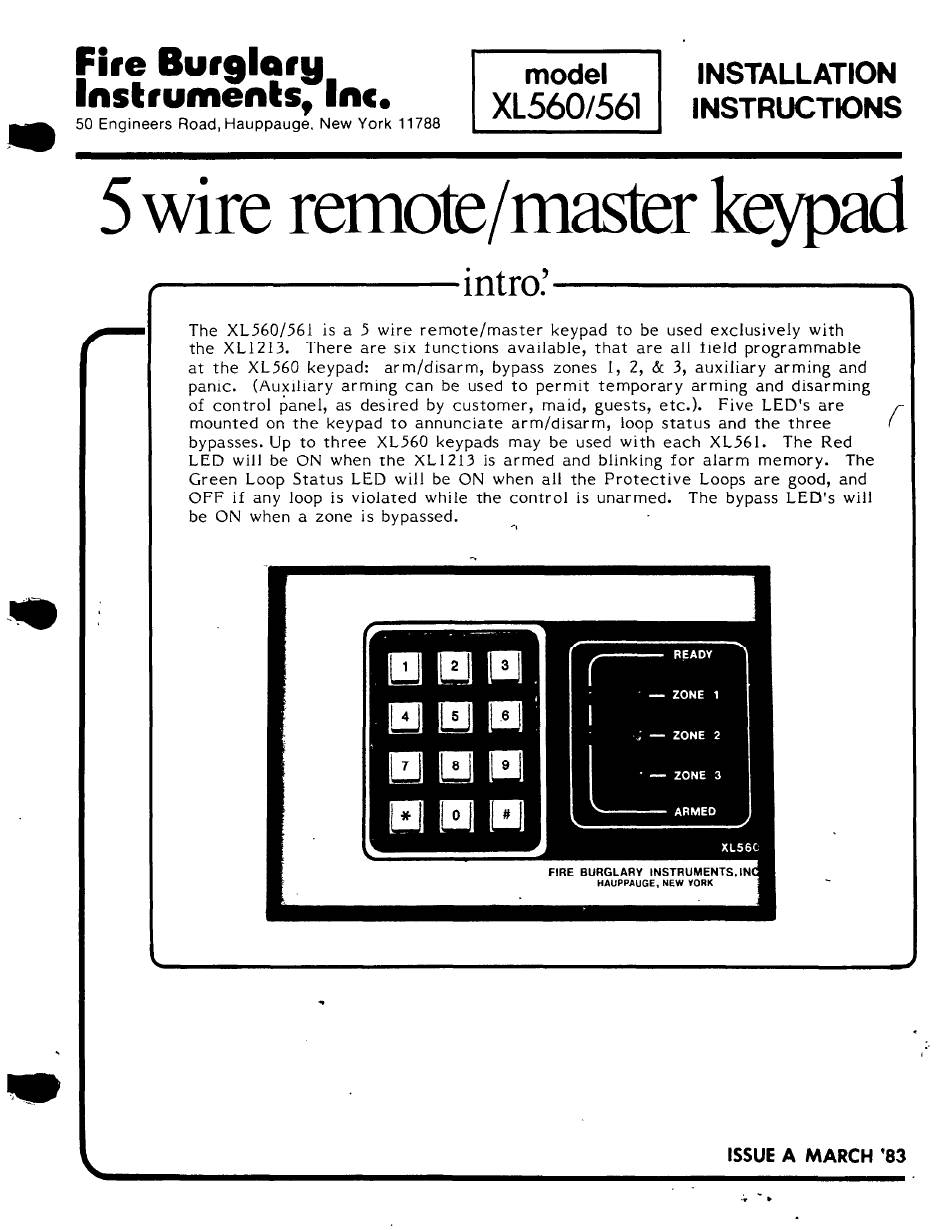

The X1560/561 is a 5 wire remote/master keypad to be used exclusively with
the X11213. There are six functions available, that are all field programmable
at the XL560 keypad: arm/disarm, bypass zones 1, 2, & 3, auxiliary arming and
panic. (Auxiliary arming can be used to permit temporary arming and disarming
of control panel, as desired by customer, maid, guests, etc.). Five LED's are
mounted on the keypad to annunciate arm/disarm, loop status and the three
bypasses. Up to three XL560 keypads may be used with each X1561. The Red
LED will be ON when the XL1213 is armed and blinking for alarm memory. The
Green Loop Status LED will be ON when all the Protective Loops are good, and
OFF if any loop is violated while the control is unarmed. The bypass LED's will
be ON when a zone is bypassed. ',
FIRE BURGLARY INSTRUMENTS, IN
HAUPPAUGE. NEW YORK
ISSUE A MARCH '83
