NOXON iRadio 500 CD Manual
NOXON iRadio 500 CD
Internet, CD, DAB+/FM,
Bluetooth, Spotify, Airable Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iRadio 500 CD and is the answer not in the manual?

Questions and answers

Summary of Contents for Noxon iRadio 500 CD

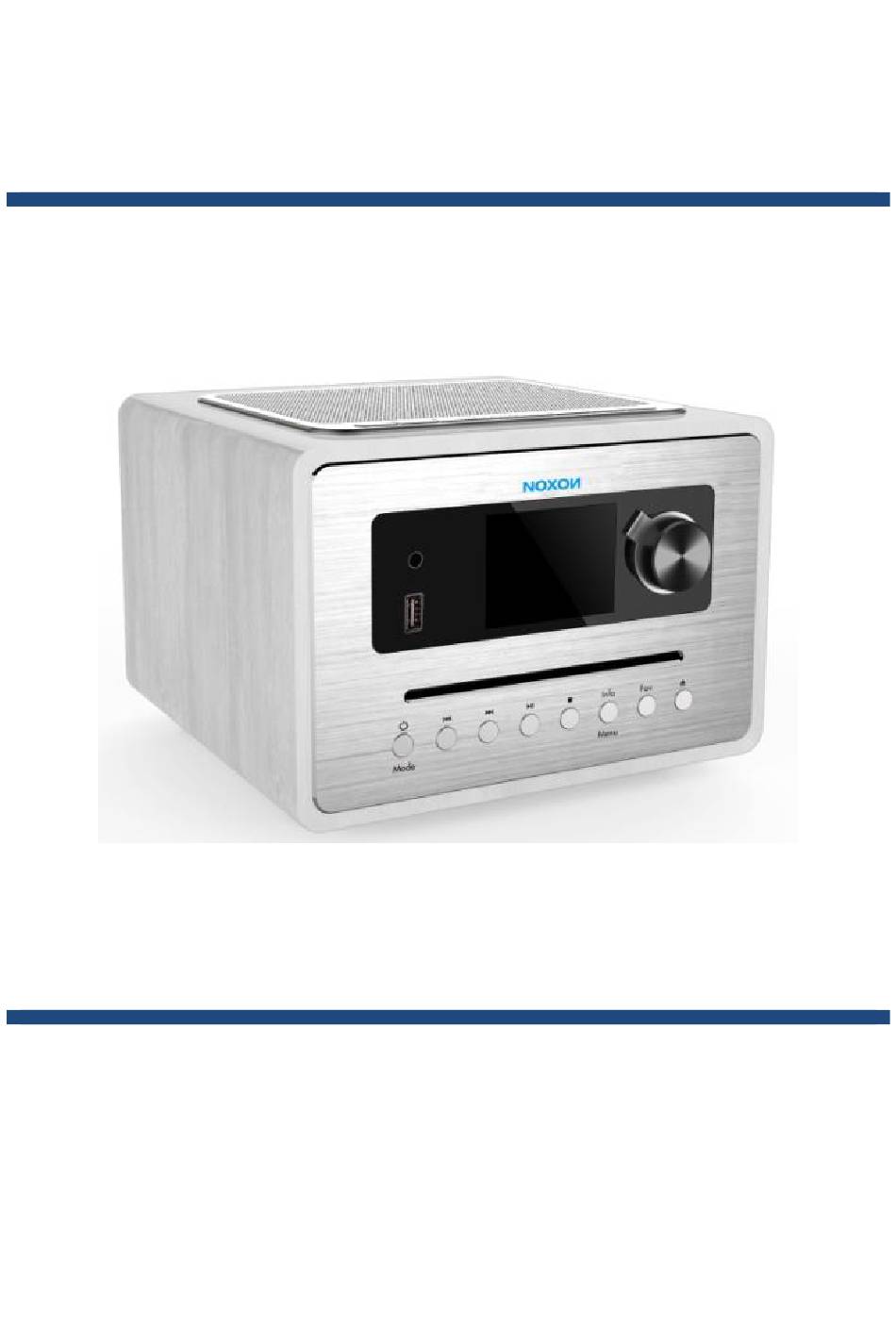

  • Page 1 NOXON iRadio 500 CD Manual NOXON iRadio 500 CD Internet, CD, DAB+/FM, Bluetooth, Spotify, Airable Services...

  • Page 2: Table Of Contents

    Please carefully read this user manual before use and keep for future reference. If you pass the IRADIO 500 CD on to someone else, make sure to give them all the relevant documents with it.

  • Page 3: Package Contents

    Internet or a network, and reception of DAB+/FM radio programs. The device has been designed for private use and is not suitable for commercial purposes. Package contents The items enclosed in the packaging box are as follows: IRADIO 500 CD Power adaptor Remote Control User manua...
  • Page 4 • DO NOT USE THESE TYPES OF DISC:- Mini (8cm) CDs. Use only full-size 12cm discs. Mini CDs will jam the feed mechanism. Discs which do not have a complete metallic reflection layer. Discs with a large transparent section will not be detected and may fail to play or eject. Disc which are extra thin or flexible.

  • Page 5: Overview

    • Always power off the unit when cleaning it. • Never use any harsh or strong solvents to clean the device since these may damage the surface of the device. Dry, soft cloth is appropriate, however, if the device is extremely dirty, it may be wiped off with a slightly moist cloth.
  • Page 6 1. EARPHONE 2. USB 3. LCD display 4. Vol- / Vol+ / OK Knob 5. NOXON Back-Button 6. Standby /Mode 7. Previous button 8. Next button 9. Play/ Pause 10. CD Stop 11. Menu / info button 12. Fav button...
  • Page 7 14. preset 1 preset 3 15. preset 2 preset 4+ 16. Snooze/ Dimmer Alarm/ Sleep 20. DC in socket...
  • Page 8 21. Aux in jack 22. Telescopic Antenna 1. STANDBY. Button 12. Ejection- for CD ejection 2. Mute 13. VOL + 3. Mode 14. previous button 4. Alarm 15. Next button 5. Sleep 16. VOL – 6. Snooze 17. OK button 7.

  • Page 9: Getting Started

    Connect the mains adaptor to the DC jack, fully extend the telescopic antenna, plug in. The system will begin to power up and display Noxon screen. After this, then to language selection: Language selection...
  • Page 10 Auto update rotate knob to choose ”Update from DAB”, “Update from FM”, “Update from Network”, or “No update” , press OK to confirm into Set time zone selection, after select then press ok into Daylight savings: Choose On or Off , press Ok into Network settings. “Keep network connected?”...
  • Page 11 Turn the “knob” button by clockwise to increase the volume; Turn the “knob” button by anticlockwise to decrease the volume; Disconnect network/Bluetooth connection In Bluetooth mode, press and hold the “play/pause” button to disconnect the bluetooth connection. Press and hold the “play/pause” button to reconnect the bluetooth connection In other mode (except BT mode), press and hold the “play/pause”...
  • Page 12 DNS. Wlan region, choose Europe or Australia NetRemote PIN setup: a pin will display on the NOXON iRadio 500 CD screen, if your wifi is capable of inserting a PIN, enter the code into your wifi network. Manual settings (Manual config ) The following options are available: Connection type –...
  • Page 13 1. Press OK button, Date digit will flash, rotate knob to choose correct date and press OK to confirm. 2. Month digit will flash, rotate knob to choose correct month and press OK to confirm. 3. Year digit will flash, rotate knob to choose correct year and press OK to confirm. 4.
  • Page 14 Info, press OK to check the SW version, Spotify version, Radio ID, Friendly Name etc Privacy policy: press OK to check below Please visit the following page on a pc or mobile device. www.frontiersmart.com/privacy By continuing, you accept our privacy policy. Press Select to continue. Backlight, press OK and rotate knob to choose timeout, on level or Dim level, press ok to back.
  • Page 15 Choose Save and press OK to save * “Alarm 2 ”, the same as Alarm one. Snooze function: When the alarm sounds, press the “Snooze” button to delay the alarm for another 9 minutes . Press the “standby” button to turn off the alarm when it is sounding. Sleep setting.
  • Page 16 Select whether to listen to the audio in stereo or mono. Once selected, the screen will display “Listen in Mono only?” to Listen in Mono, select “Yes”. To listen in Stereo, select “No”. Stereo output is only available on headphone. Your device is Mono. FM Station Information When listening to a FM station with RDS, press the “info”...
  • Page 17 DAB Operation Press Mode and choose Dab icon , press OK into DAB mode and Fully extend the antenna. When on the DAB mode for first time, the system will begin scanning for available stations and show “Scanning..” on the screen. Once stations have been scanned, they will display on a list.
  • Page 18 Once this option is selected, the screen will show “this removes all invalid stations, continue?” To switch on Prune setting, highlight Yes and confirm the selection with Ok button. Select this option to reduce the volume of louder sounds and boost the volume of quiter sounds.
  • Page 19 Press and hold 1~4 button, the display will then show “Preset Stored” Press and hold the “FAV” button, rotate the knob to choose the preset number you want to store the station as. Then press “OK” button to save. The display will then show “Preset Stored”...
  • Page 20 Podcasts – Browse through a variety of podcasts by Location and Genre. Search for a podcast by manually typing in the podcast name. Help – Select this option for additional options such as getting an access code and viewing frequently asked questions. Internet Radio Station Information.
  • Page 21 Choose Noxon iRadio 500 CD from your Chosen device. Go to Noxon iRadio 500 CD and select the device (home server, PC etc) that you wish to connect to and press the Ok button to open shared folders on that device.
  • Page 22 Both your device and the Noxon iRadio 500 CD system will need to be connected o the same WIFI network. If you have set up folders on your device that is being shared you can use the knob to scroll through your choices and confirm your selection by pressing down the OK button.
  • Page 23 You can connect your phone or tablet with an AUX 3.5mm cable that connects to the Audio-In jack on the back of the unit. Insert the AUX audio cable from the back of the Noxon iRadio 500 CD into the device that you wish to play media from.
  • Page 24 Select the Open/Close CD function on the radio or the remote. Insert your CD slightly and drive will take CD into the system to play. The first song on the CD will now begin to play, and show the playing time. Press info button repeatedly, if the format with ID3, it will show the info( Today’s date, File, Folder, Album, Artist, Title).
  • Page 25 After you have finished program song selection, press the Play/‘Pause’ button to play the songs which have been programmed. When the program playback is activated, press twice on Stop button, then it will exit the program playback mode, back to CD playing. In CD mode, press “Menu”...
  • Page 26 Use UNDOK app to select your device to enter the username and password to play the songs or input the username and password at device, press OK into the Naspter, Deezer Qobuz, Tidal service to play the songs. Search UNDOK from Google Play or Apple Store, and install it to your smartphone or tablet.

  • Page 27: Troubleshooting

    Troubleshooting Error Remedy The device does not switch on. Check it the power adaptor is connected properly. No sound. 1. Turn on the sound as it may be muted 2. Increase the volume. 3. Pull any connected headphone or speaker from the connector jack.
  • Page 28 3. The CD is dirty or faulty. Clean the CD, use another All other undetermined cases. The IRADIO 500 CD may process large amount of data after a period of operation, no matter in which mode, it will cause the system freeze or malfunction.

  • Page 29: Technical Specification

    Technical Specification Model number IRADIO 500 CD Description IRADIO 500 CD with FM/DAB+/CD/BT/USB/AUX Display 2.8", 320 x 240, TFT colour display Network supported WiFi IEEE 802.11b/g/n wireless; Bluetooth (BT 2.1, Supports A2DP, AVRCP profiles) Frequency band WiFi : 2.400 - 2.4835 GHz;...

  • Page 30: Disposal

    Power Supply Power Adaptor, 12V 2A Remote Control Power Supply 2 x 1.5V AAA battery Standby mode power <1.0W consumption Networked standby mode power <3.0W consumption Operating temperature C - 35 Speaker power output Connections 3.5mm headphone socket USB port (for playback only, no charging function) 3.5mm aux in socket, DC IN power supply socket (5.5mm) Dimensions...
  • Page 31 RoHS Directive 2011/65/EU. EU Declaration of Conformity Hereby we, Palotec AG, Frikartstrasse 3, CH-4800 Zofingen, Switzerland declare that this DoC is issued under our sole responsibility for below equipment: IRADIO 500 CD Product Name: IRADIO 500 CD Model No.: AC Adaptor...
  • Page 32 components Hardware Version: 1A14 Object of the declaration described above is in conformity with the relevant Union harmonization legislation as below: Radio Equipment Directive: Article 3.1a: 2014/53/EU (power adaptor) EN 60065: 2014 EN 62368: 2014 EN 62311: 2008 Article 3.1b: EN 301 489-17 V3.2.0: 2017 (draft) ;...
  • Page 33 Windows® is a registered trademark of Microsoft Corporation. USB is a registered trademark. Bluetooth® is a registered trademark of Bluetooth SIG, Inc. UNDOK is a trademark of Frontier Smart Technologies Ltd. Other names and products can be the trademarks or registered trademarks of their respective owners.
  • Page 34 Frikartstrasse 3 4800 Zofingen (Switzerland) Web: www.noxonradio.ch E-Mail: info@noxonradio.ch Made in China...
