Summary of Contents for thomann Fun Generation LED Puck ONE

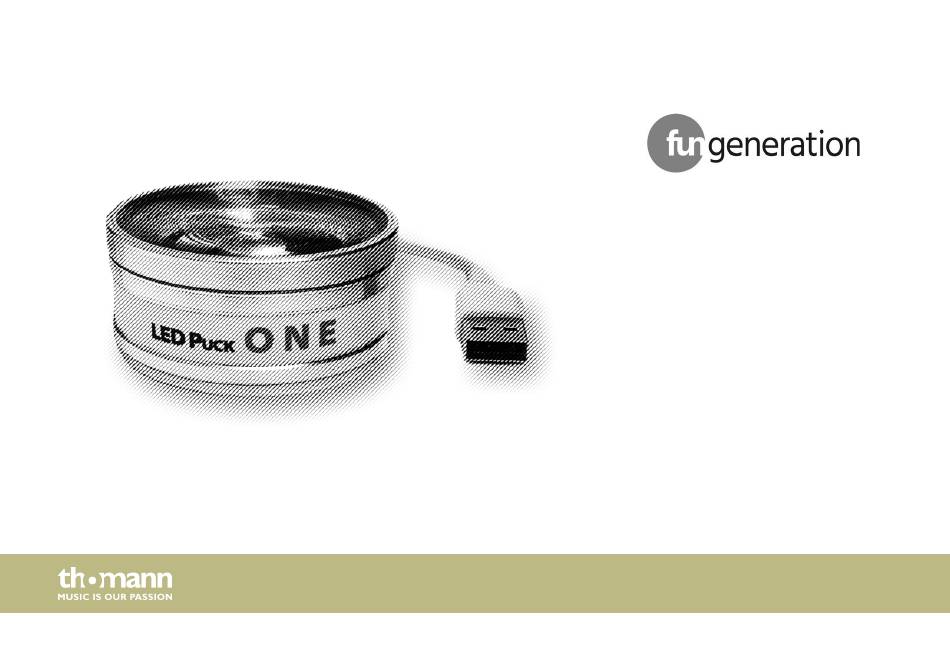

- Page 1 LED Puck ONE LED effect user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 21.11.2019, ID: 457180, 457181, 457182, 457183, 457258, 457259, 457260, 457261...
-
Page 3: Table Of Contents
Table of contents Table of contents Safety instructions............................. 4 Features............................... 10 Installation and starting up........................ 12 3.1 Connecting the device........................12 3.2 Operating the device - remote control..................14 3.3 Changing the lens..........................17 3.4 Colours and programmes......................18 Technical specifications........................20 Troubleshooting............................ -
Page 4: Safety Instructions
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Intended use This device is intended for use as an electronic lighting effect by means of LED technology. - Page 5 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
- Page 6 Safety instructions WARNING! Eye damage caused by high light intensity Never look directly into the light source. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. LED effect...
- Page 7 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
- Page 8 Safety instructions NOTICE! External power supply The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual cur‐ rent circuit breaker.
- Page 9 Safety instructions NOTICE! Risk of fire The optical lenses of the device focus the light and can cause a burning glass effect when exposed to sunlight. Never expose unassembled lenses to direct sun‐ light. Use the device only in areas where 2.4 GHz radio transmission is permitted. LED Puck ONE...
-
Page 10: Features
Power supply via USB mains adapter or power bank (not included in all sets) The product series LED Puck ONE comprises the following components and sets with different delivery sizes: Item no. Name 457260 Fun Generation LED Puck ONE 2 Way Split 457261 Fun Generation LED Puck ONE Lens Kit LED effect... - Page 11 Features Item no. Name 457259 Fun Generation LED Puck ONE Power Supply 457258 Fun Generation LED Puck ONE Remote 2,4 GHz 457180 Fun Generation LED Puck ONE Set of 1 457181 Fun Generation LED Puck ONE Set of 2 457182...
-
Page 12: Installation And Starting Up
Installation and starting up Installation and starting up 3.1 Connecting the device Mounting options You can mount the device in three different ways: Standing on a smooth surface Fixing by magnet M6 inner screw thread (thread depth 6 mm) Connecting the LED light The device is powered by the USB power adapter or a power bank. - Page 13 Installation and starting up The remote control is in sleep mode by default. Press any button on the remote control to activate it. ð The remote control is activated for 5 minutes. It can now receive and transmit radio signals. Connect the LED light to a USB power source.
-
Page 14: Operating The Device - Remote Control
Installation and starting up 3.2 Operating the device - remote control LED effect... - Page 15 Installation and starting up Button Function 1 1, 2, 3, 4 Display for groups 1…4. The button of the selected group lights up red. 2 [GROUP] You can control up to four groups of devices separately. Press [GROUP] to select the group to control. The button of the selected group lights up red.
- Page 16 Installation and starting up Button Function Press to select a preprogrammed static colour or effect. Hold down to access preset 20. Preset 1…14: static colours Preset 15…20: preprogrammed colour changes or sequences 6 [SLOW] Press [SLOW] to decrease the flash frequency of the respective static colour (preset 1…14) or the speed of the respective pro‐...
-
Page 17: Changing The Lens
Installation and starting up Button Function Press to increase the brightness in increments of 20 %. 10 [BLACKOUT] Press [BLACKOUT] to blackout the light. The lights are still in ON state during the blackout. 3.3 Changing the lens The device is delivered with two optical lenses (Effect Lens, 50° beam angle, and Frost Filter, 160°... -
Page 18: Colours And Programmes
Installation and starting up Turn the aluminium ring on the top of the device counterclockwise. Remove the existing lens and insert another lens. When using the Effect Lens, make sure that the smooth side of the lens faces the device and that the rippled side is on the outside. Turn the aluminium ring on the top of the device clockwise to close the device again. - Page 19 Installation and starting up Number Programme Number Programme Yellow Pastel blue Light green Blue, red Cyan Magenta, white Cyan blue White, blue Blue Pastel red, pastel green, pastel blue Blue-magenta Yellow, magenta, blue Magenta Rainbow colours LED Puck ONE...
-
Page 20: Technical Specifications
Technical specifications Technical specifications Light source 1 × RGBW LED, 12 W Light source properties Colour temperature White: 8000 K Optical properties Beam angle Effect Lens: 50° Frost Filter: 160° Control Remote control Input connections Voltage supply USB port for connecting a mains adapter or power bank Voltage supply Plug-in power supply (5 V / 400 mA , centre positive) - Page 21 Technical specifications Weight 96 g Ambient conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non-condensing LED Puck ONE...
-
Page 22: Troubleshooting
Troubleshooting Troubleshooting In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: LED effect... - Page 23 Troubleshooting Symptom Remedy The device can not be controlled with the Light and remote control are not paired. Pair the device with the remote con‐ remote control. trol. The light is in the wrong group. Select the correct group. The light does not turn on. The light is not connected to the power supply.
- Page 24 Troubleshooting If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED effect...
-
Page 25: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 26 Notes LED effect...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
