Napa 791-7125 Operating Manual & Parts List

BEFORE USING THIS DEVICE, READ THIS
MANUAL COMPLETELY AND THOROUGHLY,
UNDERSTAND ITS OPERATING
PROCEDURES, SAFETY WARNINGS AND
MAINTENANCE REQUIREMENTS.
It is the responsibility of the device owner to make sure all personnel
read this manual prior to using the device. It is also the responsibility
of the device owner to keep this manual intact and in a convenient
location for all to see and read. If the manual or product labels are lost
or not legible, contact NAPA for replacements. If the operator is not
fluent in English, the product and safety instructions shall be read to
and discussed with the operator in the operator's native language by
the purchaser/owner or his designee, making sure that the operator
comprehends its contents.
SPECIFICATIONS
Low Height ................................................................................700 lbs.
Adjustable Hook Screw Length ...................................................... 14"
Steel Cable Diameter ..................................................................... 1/8"
Support Bar Adjustment ................................................... 34.5" to 61"
Shipping Weight ...................................................................25.24 Lbs.
791-7125
capacity: 700 lbs.

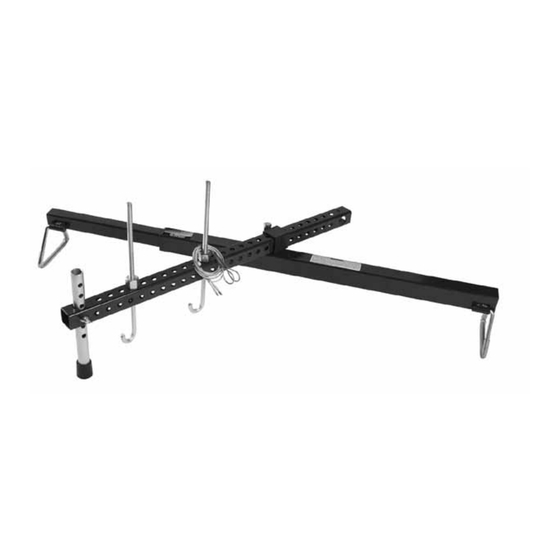

ENGiNE tRaNsVERsE baR
WitH aRM sUppORt
Read, study, understand and follow all instructions before
using • Inspect before each use. Do not use if damaged,
altered, modified, in poor condition, or has loose or missing
hardware or components. Take corrective action before
using • Do not use beyond rated capacity • This Engine
Transverse Bar was not designed to lift an engine but rather
support the engine when lifted by other means • Consult
the vehicle manufacturer for the proper positioning and
attachment of the tool to the engine • Wear eye protection
that meets ANSI Z 87.1 and OSHA standards (users &
bystanders) • Make sure the engine is properly and safely
supported before removing the lifting device from the
engine • Stay clear of lifted load. Never crawl under
the suspended load for any reason • Do not exceed
maximum width of 61" • No alterations shall be made to this
device • Make sure the weight of the tool and engine can
be supported by that part of the vehicle the tool is resting
• Do not use this tool for any purpose other than for which
it was designed • This product contains chemicals known
to the State of California to cause cancer and birth defects
or other reproductive harm. Wash hands thoroughly after
handling • Failure to heed these warnings may result in
serious or fatal personal injury and/or property damage.
1
Model # 791-7125
WARNING
rev. 12/07/15
