Operating and Maintenance Manual
KOMPBERG BKB22 TWIN
BOOSTERS

Advertisement

Table of Contents
loading

Related Manuals for BERG KOMPBERG BKB22 TWIN

Summary of Contents for BERG KOMPBERG BKB22 TWIN

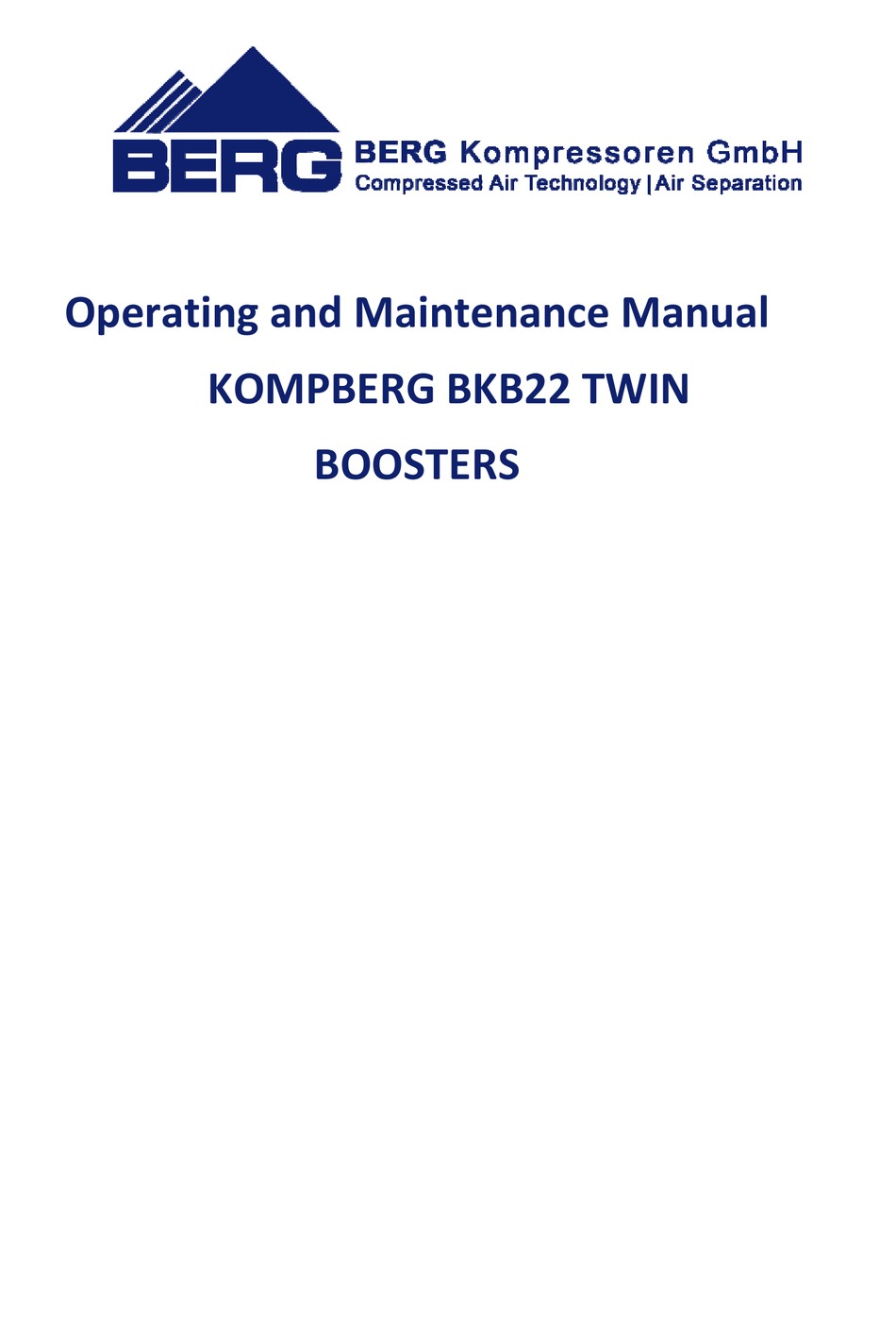

  • Page 1           Operating and Maintenance Manual  KOMPBERG BKB22 TWIN  BOOSTERS ...
  • Page 2 Ladies and Gentlemen, We heartily welcome you among our valued Customers and thank you for your trust to purchase an BERG Kompressoren GmbHs. We are sure you will be fully satisfied with both the choice you have made and the cooperation you started with us.

  • Page 3: Table Of Contents

        1. Important notes ..................... 4 1.1. Applications ........................ 4 1.2. Operation ........................4 1.3. Other remarks and instructions ................... 4 2. Operating safety rules ................... 4 2.1. Basic requirements for safe transport and positioning of the boosters ......4 2.2.

  • Page 4: Important Notes

    KOMPBERG BKB22 TWIN boosters. 2. Operating safety rules The present rules are valid for BERG compressors. In addition to the H&S and Technical Supervision regulations applicable to compressors, their assemblies and accessories, the safety instructions given below should be followed in particular. The operators are supposed to observe safe work practices.

  • Page 5: Operating Safety Requirements

        The compressor should be installed in a closed room, in cool and clean ambient air. Never block air flow to and from the room. Ensure sufficient flow of cooling air and extraction of heated air out of the room. The air sucked in should contain no vapours or flammable gases, e.g.

  • Page 6: Explanation Of Symbols

    The cross sectional area of conductors should be matched to the current drawn by the booster compressor. 3 x 50 mm + PE wire is recommended for the KOMPBERG BKB22 TWIN with a motor power output of 45 kW (i.e. 2x22 kW). The KOMPBERG BKB22 TWIN booster should be supplied from a switchgear provided with a time delay fuse (rated for 125 A) and a breaker allowing to completely cut the power supply out.

  • Page 7: Compressed Air Treatment

    4.1. Applications The KOMPBERG series booster compressors are intended for boosting air pressure from 1.0-1.3 MPa (KOMPBERG BKB22 TWIN) on the suction side, to 2.5-4.0 MPa on the pressure side. The booster is provided with an oil filter and end cooler.

  • Page 8: Electric Motor

    Air circulation in both solutions is forced by a fan driven by an electric motor. 4.6. Booster compressor frame The KOMPBERG BKB22 TWIN booster frame, on which the motor and compressor are supported, is made of plate and seated on four shock absorbers.

  • Page 9: Control And Protection Equipment

        4.7. Control and protection equipment The unit is provided with the following control and protection equipment: In the suction collector, a mesh filter is installed with two solenoid valves:  " valve (or ¾") is placed behind the mesh filter and supplies air to the booster suction side.

  • Page 10: Technical Data

        5. Technical data KOMPBERG BKB22 TWIN Overpressure Suction overpressure Efficiency *) /min Weight of compressor 1200 Weight of electrical box Dimensions of compressor (LxWxH) 1607x851x1955 Dimensions of electrical box (LxWxH) 278x500x1600 Suction air connection Compressed air connetion G1¼...

  • Page 11: Oil Pressure Control

        6.3. Oil pressure control Oil pressure in the lubrication system with the compressor running should be between 0.2 – 0.4 MPa, and the value should be checked on a pressure gauge connected to the oil pomp connection pipe. The adjustment should be performed when the compressor has heated up and after the state of heat balance has been reached, i.e.

  • Page 12: Unit Operation And Maintenance

        Pressure gauge connection Oil pressure measurement Unscrew the nut 7. Unit operation and maintenance Before each start and at least once a day: check oil level in the crankcase and top it up if necessary, check the connections, open the breather valve for about 10 seconds (the valve should be closed during normal operation).

  • Page 13: Periodic Maintenance And Servicing

    2000 working hours or once a year if booster doesn't work 2000 per one year Change oil. Change oil filter. (made by the authorized Berg Kompressoren service) every 2000 working hours Change vent cartridge. -Change the rings and valves.

  • Page 14: Vent Cartridge Replacement (Fig. 174-22-000)

        9.2. Vent cartridge replacement (fig. 174-22-000) Turn off the booster compressor, close the valve on the discharge and suction lines. Turn off power supply and secure it against being reconnected by unauthorized persons. After waiting for at least 5 minutes, open the safety valve on the radiator by pulling the stem.

  • Page 15: Oil Change

     Synthetic compressor oil PNEUMOIL ST150 (KOMPBERG BKB22) Booster Oil* Quantity KOMPBERG BKB22 TWIN COL0045 (synthetic) 2 x 3,6 l * 5 L package 9.5. V-belts tension In order to obtain the correct tension of V-belts, loosen or tighten the nut 1.

  • Page 16: Troubleshooting

        10. Troubleshooting Symptoms Cause Remedy loose crank bolts tighten the bolts knocking in the bushings worn out replace the big end bushings crankshaft bearings worn out replace the main bearings assembly bad contact between working tighten the set screw in the head valve and head seat cover excessive play between piston...
  • Page 17    ...
