Arkon CA-DHWK User Manual

CA-DHWK | Universal Power Adapter with Fused Link Harness
Battery Disconnect
WARNING!
!
Disconnect negative (-) battery cable fi rst. If positive
(+) cable should contact ground with negative (-) cable
still connected, the resulting sparks can cause a battery
explosion, which could result in serious injury or death.
1
Install Battery Harness to Battery Posts
Step 1. Attach the positive (Red) lead of the harness to the
positive (+) battery post.
Step 2. Attach the negative (Black) lead of the harness to the
negative (+) battery post.
-
!
Safety Precautions
Follow all manufacturer safety guidelines for operating your device.
Failure to practice safe usage while operating your device while
driving may result in damage, injury, or death.
Arkon is not responsible for any damages caused to your vehicle,
your device, or yourself due to the installation or use of this mount.

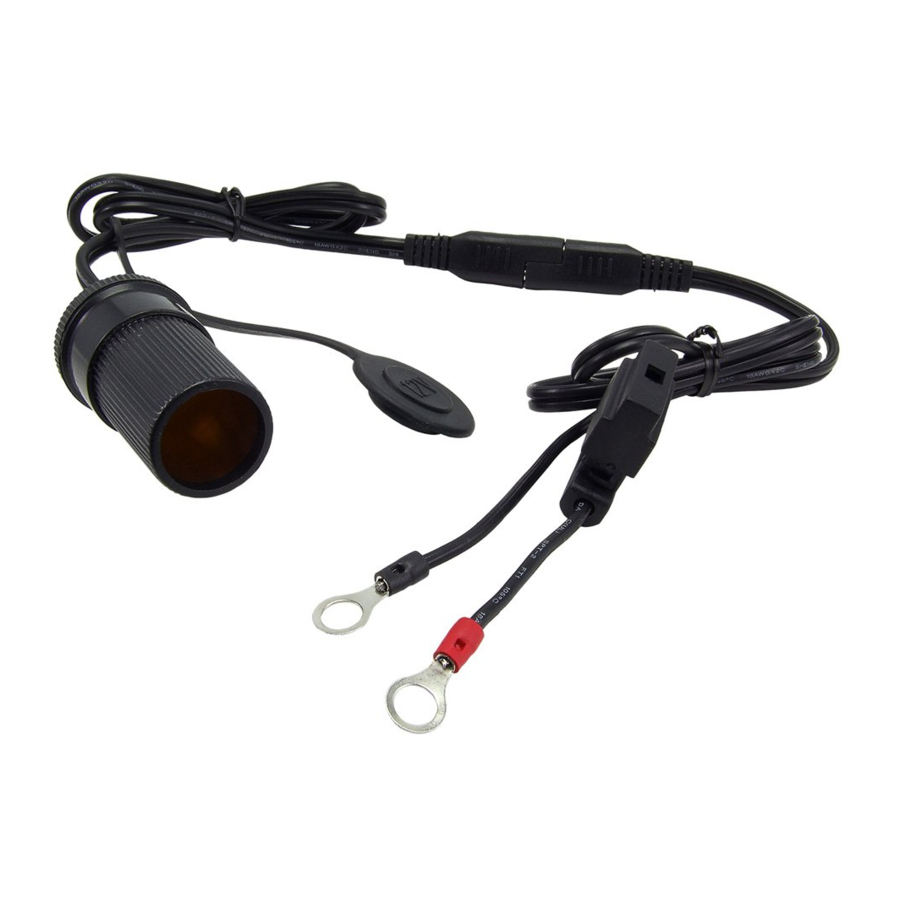

CA-DHWK
Universal Power Adapter
for Motorcycles, ATVs, etc.
2 +
Positive
-
Negative
Vehicle battery
Red
+
Fuse
Black
Package Contents:
(1) CA-DHWK - Universal Power Adapter for Motorcycles, ATVs, etc.
! WARNING!
To prevent accidental vehicle start up, which could cause serious
injury or death, disconnect battery cables before installing.
Attach 12V Socket Adapter to Battery Harness
Step 1. Connect the double-pin connector on the 12V socket adapter
to the double-pin connector on the battery harness.
Step 2. Carefully reconnect vehicle battery cables. Insert a 12V
accessory into the 12V socket to power your mobile device
(not included, sold separately).
®
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
12V power socket
