Summary of Contents for Velex VX565D
- Page 1 VX565D Instruction Manual Quick Start Guide Not all features listed in this QSG are available on all models. THIS PACKAGE CONTAINS Power/Speaker Harness Remote control Mounting Screws Screw Covers User's Manual www.velextech.com...
- Page 2 Installation the radio Mounting the unit Important! If any modification to the vessel is required, such as drilling holes, Velex recommends that you consult with your boat dealer or manufacturer beforehand. 1.Create mounting hole for product and drill screw pilot holes. Refer to mounting template included.
- Page 3 Ensure all wiring is protected to avoid damage. When wiring the VX565D, ensure that the wires are away from sharp objects and that rubber grommets and insulated bungs are used when routing the wiring. Ensure that when connecting the wires to the speakers and audio system. The terminals and connections are protected from shorting to each other.
-
Page 4: Wiring Diagram
WIRING DIAGRAM Connections and cables on the VX565D are described below. BLACK DAB ANTENNA (SMB) BLACK BLACK YELLOW VIDEO IN RADIO ANTENNA BROWN YELLOW VIDEO OUT GREEN GREEN SUB-W OUT GREY RED REAR LINE OUT R WHITE REAR LINE OUT L... -
Page 5: Control Locations - Receiver

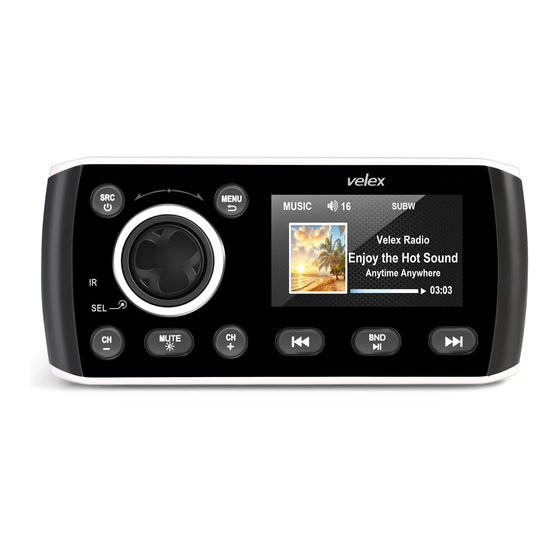

Control Locations - Receiver VX-565D MENU MUTE Next Preset Stations ( Radio –AM/ FM/DAB+ ) MENU / Return Source / Power Previous Preset Stations (Radio –AM/FM/DAB+) VOL Knob (Rotate) / Confirm (Press) Play / Pause | Band (Radio) | Video I/O Switch (Press and Hold While Playing Video) MUTE / Button Backlight dim Tune Up / Next Track... -
Page 6: General Operation
General Operation Power on/off – Press the '' button to turn the unit on. Press and hold '' to turn unit off. Changing Modes – Press 'SRC' button to switch between Radio, AUX IN, Bluetooth Music, Media (USB)，DAB+ modes. . MENU –... -
Page 7: Radio Operation
Radio Operation Seek Tuning – Press and hold << or >> for more than 1 second to seek the next strong station. Manual Tuning – Press << or >> momentarily to move radio frequency up or down one step at a time. Auto Programming of Radio Station –... -
Page 8: Mp3/Wma Operation
MP3 / WMA Operation When an USB stick is plugged in, VX565D start to play the audios from the first location. If user want to play MOVIE/PHOTO on the USB stick, press MENU then enter MEDIA selection, MUSIC/MOVIE/PHOTO will be displayed on LCD screen, rotate the VOL Knob to make choice. - Page 9 MUSIC/VIDEO/PHOTO Operation When an USB stick is plugged in, VX565D will auto detect the audio files and start to play from the first location. When VX565D is playing audio, press and hold the VOL knob for 1 second, MUSIC /VIDEO/PHOTO selection will be toggled, rotate and press the VOL Knob to confirm the selection.
-
Page 10: Bluetooth Operation
Bluetooth Operation Preparation – Before using a Bluetooth device, it must be paired and connected. Ensure that Bluetooth is activated on your device before beginning the pairing process. Activate the Bluetooth on your smartphone to search for new devices. Connect with the device name 'VX565' when founded. -
Page 11: Dab Operation
DAB+ Operation Select DAB+ from MENU or press SRC button to switch to DAB+ mode, VX565D will automatically scan for local digital stations. This process may take a few seconds depending on the numbers of stations available. As DAB+ stations are found, they will be automatically stored into the DAB band memories. -
Page 12: Specifications
Specifications General Power supply requirements: DC 12V Negative Ground Load impedance: 4 Ohms/channel Maximum output power: 40W x 4 (CH) Operate temperature: -10-50℃ MUTLIMEDIA SUPPORT AUDIO FORMAT: MP3/WMA/OGG/FLAC/APE/AAC/AC3 VIDEO FORMAT: MPEG 1/ MPEG 2/ MPEG 4-XVID/DIVX/H.264/H.263/WMV9/RMVB PHOTO: JPEG/BMP FM Tuner: Tuning range: 87.9MHz-107.9MHz (USA) 87.5MHz-108MHZ (EUR) DAB+: Tuning rage: BAND III 174-240 MHz USB playback...
