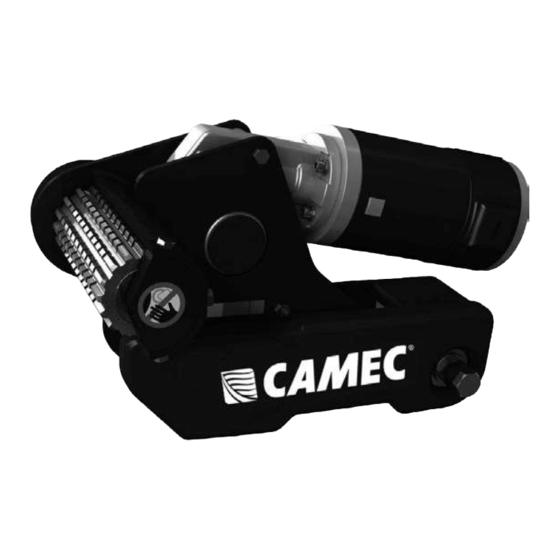

Camec ELITE 2 Caravan Mover User Manual
  1. Manuals
  2. Brands
  3. Camec Manuals
  4. Motorhomes
  5. ELITE 2 Caravan Mover
  6. User manual

Camec ELITE 2 Caravan Mover User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

®
ELITE
2 Caravan
Mover

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELITE 2 Caravan Mover and is the answer not in the manual?

Questions and answers

Summary of Contents for Camec ELITE 2 Caravan Mover

  • Page 1 ® ELITE 2 Caravan Mover...
  • Page 2 User Manual ® Model: CAMEC ELITE EM303 Part No: 043321 For Professional Installation Only * Not suitable for rear shackle type suspensions Updated Jan 2017 TABLE OF CONTENTS CAMEC ELITE ® EM303 Ref: ELITE 2 EM303-0715Rev.A.
  • Page 3 Rubber isolation shell for battery isolation switch Remote control handset wall holder Screw – M5x40 Chassis clamp plates (pair) with bolts M8x70, nuts and washers Bolt - M8x70 Nylon nut M8 Washer 8mmØ Spring washer 8mmØ CAMEC ELITE ® EM303 Ref: ELITE 2 EM303-0715Rev.A.
  • Page 4 Package Contents CAMEC ELITE ® EM303 Ref: ELITE 2 EM303-0715Rev.A.

  • Page 5: Intended Use

    INTRODUCTION Congratulations on choosing the Camec Elite ® 2 EM303 caravan manoeuvring system. This has been produced according to very high standards and has undergone careful quality control procedures. By using the remote control handset you can move your caravan effortlessly into any position required within operating guidelines.

  • Page 6: Installation Safety Guidelines

    Installation procedures may vary depending on caravan type. Working under a vehicle without appropriate support is extremely dangerous! Please refer to figure 3 for an overview of the whole assembly fully fitted. CAMEC ELITE ® EM303 Ref: ELITE 2 EM303-0715Rev.A.
  • Page 7 • Make sure that aluminium drive rollers of the motors are approximately on the same altitude as the centre (axle) of the caravan wheel (± 20mm). To compensate a possible unevenness (and lower the motors), Camec Elite ® 2 has a set of distance plates available. One set can compensate 15mm. In total three sets can be used so that an altitude of 45mm can be compensated.
  • Page 8 (>10mm). The weight of the caravan musty be on the wheels when doing this. If necessary, loosen the bolts and re-adjust the position of the assembly. The main mechanical components have now been installed. CAMEC ELITE ® EM303 Ref: ELITE 2 EM303-0715Rev.A.

  • Page 9: Installation - Electrical/Electronic Components

    Motor A Negative (-) cable to terminal 3 Motor A Negative (-) cable to terminal 2 Motor B Positive (+) cable to terminal 2 Motor B Positive (+) cable to terminal 3 CAMEC ELITE ® EM303 Ref: ELITE 2 EM303-0715Rev.A.
  • Page 10 Connect the battery cables (14 & 15) to the control unit (32): Attach the spade fork connectors to the positive (+) and negative (-) terminal of control box them tightly screws. • Connect the battery cables to the existing battery terminals (red = positive, black = negative). CAMEC ELITE ® EM303 Ref: ELITE 2 EM303-0715Rev.A.

  • Page 11: Installation - Twin Axle

    Check that the battery is properly connected, check the condition of the battery and that a voltage of 12V is present at the control unit. • Please ensure that both battery isolation switches are on. CAMEC ELITE ® EM303 Ref: ELITE 2 EM303-0715Rev.A.
  • Page 12 Turn the remote handset “Off” and then “On” again so both control units will be activated. The installation of the caravan manoeuvring system for twin axle use is now complete. For details of the operation, use and all the LED and button functions, please refer to the table of contents. CAMEC ELITE ® EM303...
  • Page 13 Diagram for 4 x 4 montering. CAMEC ELITE ® EM303 Ref: ELITE 2 EM303-0715Rev.A.

  • Page 14: Operation - Safety Guidelines

    All wheels and tyres on the caravan must be of the same size and design. If tyres are worn or new tyres fitted, distance between the drive rollers tyres “Installation Mechanical Components”). need readjusting (see CAMEC ELITE ® EM303 Ref: ELITE 2 EM303-0715Rev.A.

  • Page 15: Operation - Motor Units

    If the pointer is in the Rollers are not touching or YELLOW area depressing tyre sufficiently If the pointer is in the Rollers should be connecting GREEN area correctly to the tyre (margin of 15mm) CAMEC ELITE ® EM303 Ref: ELITE 2 EM303-0715Rev.A.

  • Page 16: Operation - Remote Control Handset

    When you switch within 2 seconds from forward driving to reverse driving (and the other way around), a small delay of 1 second will occur to protect the electronics and the motors. The slide switch (Fig. 15A) also acts as an “Emergency stop”. The remote hand set switches off: CAMEC ELITE ® EM303 Ref: ELITE 2 EM303-0715Rev.A.
  • Page 17 Error messages via the remote control handset: ® Error messages of the Camec Elite 2 EM303 manoeuvring system will be communicated via the remote control handset by the green LED (Fig. 15H), the error message LED’s (Fig. 15I, 15J & 15K) and a buzzer signal.

  • Page 18: Operation - Electronic Control Unit

    The Reset Button (Fig. 17A): The remote control handset and the control unit are synchronised with each other in the factory. If the control unit or the remote control handset is replaced, they must be re-synchronised as described below: CAMEC ELITE ® EM303...
  • Page 19 After successful synchronisation, the green LED on the control unit (Fig. 17B) and on the remote control handset (Fig. 18H) will illuminate continuously. The single-twin axle function switch (Fig. 17S/T): The Camec Elite ® 2 EM303 caravan manoeuvring system is suitable for both single axle and twin axle caravans.

  • Page 20: Operation - Getting Started

    After manoeuvring, deactivate the manoeuvring system by moving the slide switch to “Off”-O on the remote control handset (Fig. 21A). The green LED (Fig. 21H) on the remote control handset will turn off. Store remote control in a safe place (out of reach of children or other unauthorised people). CAMEC ELITE ® EM303...

  • Page 21: Operation - Hitching And Unhitching

    Once a year have your caravan manoeuvring system maintained and visually inspected. This inspection must include all the bolt/nut connections, the cables and electrical connections and lubrication of movable parts/joints. In case of any failure or problem, please contact your Camec Elite ® 2 EM303 supplier.

  • Page 22: Troubleshooting

    Check the fuse (80A) in the red positive battery cable (Fig. 22). If the fuse is blown, it must be replaced with a fuse of the same value (80A). Never “bridge” the fuse (if needed contact your ® Camec Elite EM303 supplier). replace the fuse,...
  • Page 23 15 seconds and then turn them on again. Roller will not turn, spindle rotates freely: • ® The motor or gear is broken, please contact your Camec Elite 2 EM303 supplier. Rollers slip on wheels: •...
  • Page 24 Contact Information AustraliaNew Zealand 47-63 Remington DriveAirport Business Centre Dandenong South 317544 Montgomerie Road, Mangere Phone: 1300 4 CAMEC (22632)Phone: 0011 64 9 257 2419 www.camec.com...
