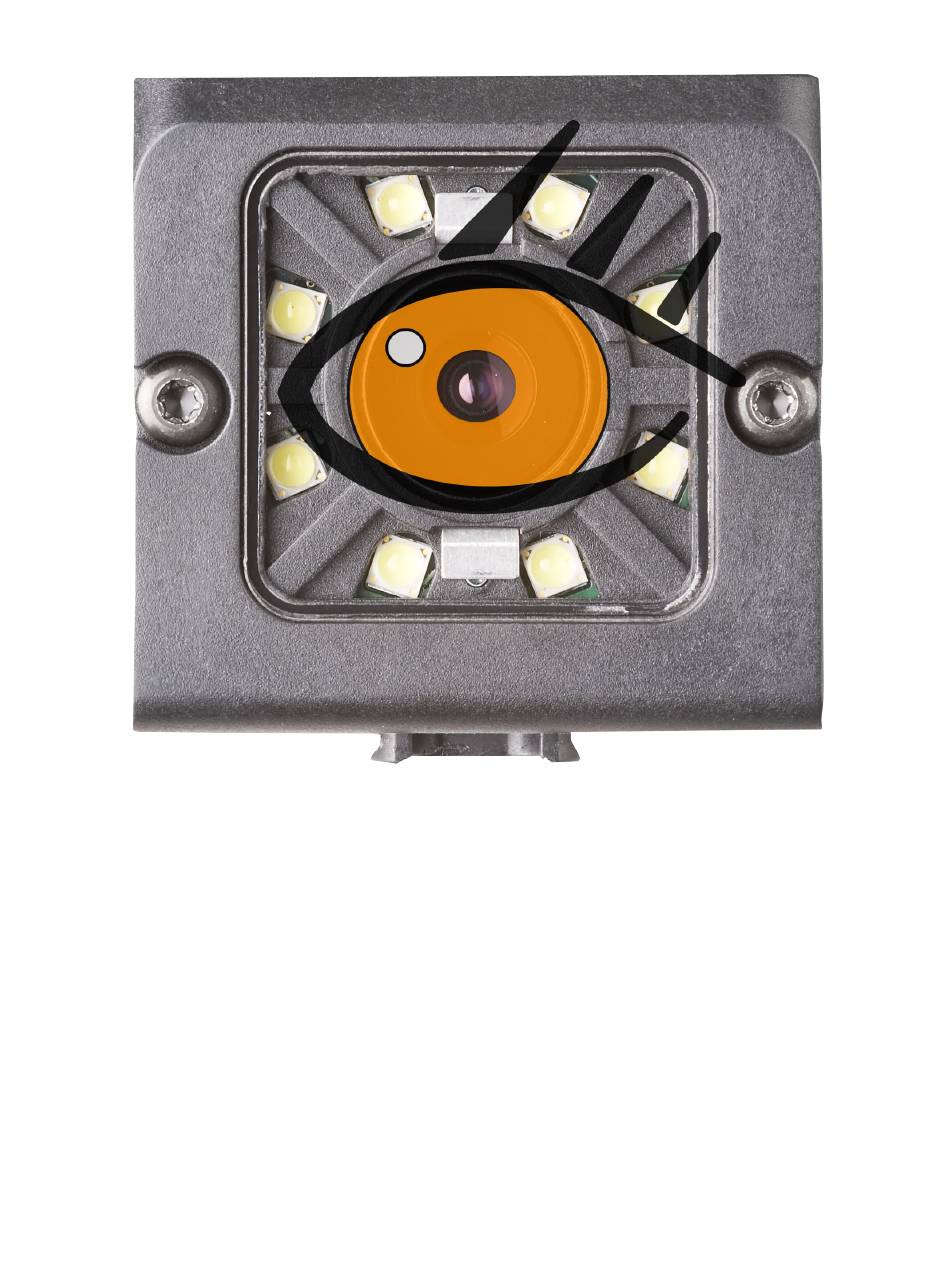

- Page 1 EyeCheck 9xx and 1xxx Hardware Manual...
- Page 2 The EVT logo is a trademark of EVT. No licenses, express or implied, are granted with respect to any of the technology described in this document. EVT retains all intellectual property rights associated with the technology described in this document. This document is intended to assist application developers to develop applications only for EVT-labeled products, either as a system or based on a legal dongle or license file.
- Page 3 1 Installation Instructions 1.1. Mechanical Installation To ensure maximum accuracy of detection, the EyeCheck Vision-System should be protected from vibration. Secure the supply and I/O cables with cable binders to prevent crushing of slipping. Select a posistion for the EyeCheck Vision-System in which interfering factors such as slight differences in the position of the object or variations in illumination have little or no effect.
- Page 4 1.2. Electrical Installation The electrical installation of the EyeCheck Vision-System must be carried out by a qualified electrician. When installing the EyeCheck Vision-System, disconnect all electrical components from the power supply. When the unit is being used in a network, ensure that the network address (IP address) of the EyeCheck Vision-System set by the manufacturer is free and is not in use for any other unit connected to the system.
- Page 5 1.2.1.1. LED Display Name Color Meaning Pwr. green Operating Voltage yellow OUT 2 yellow IN 3 yellow OUT 3 Table 1 1.2.1.2. Focussing Screw Focussing screw to adjust focus. 1.2.1.3. 24 V DC Connection M12 Connection socket for 24 V DC voltage supply and digital I/O. For the exact plug connection see table 2.
- Page 6 1.2.1.5. Data (RS422) Connection M12 Connection socket for DATA serial interface, RS422. In View → Application parameters → System → Connection settings (C OM) the serial settings can be changed. 1.2.1.6. Plug Connections PIN assignment, connection 24 V DC Color + Ub (24V DC) IN (external trigger) OUT 0...
- Page 7 2 Technical Data Electrical Data Operating voltage U 24 V DC, -25% / +10% Residual ripple < 5 Vss Current consumption (no I/O) ≤ 200 mA All inputs PNP High > U 1 V, Low < 3 V B – Input resistance >...
- Page 8 3 Dimensional Drawings EyeCheck 9xx and 1xxx EyeCheck 9xx and 1xxx C-Mount Mounting clamp MK 45 (supplied with EyeCheck Vision-System)
