Pearmain PE512X Series User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
PE512X series is Universal keyboard to Matrix switcher, DVR and pan-tilt (speed dome),
to offer system program, switch & pan-tilt and lens control, etc. function, with Pelco,
Samsung, etc. protocol, to make PE512X can be compatible to popular platform.
With Marco function, multi-function keys, also it can determine keys according to practice,
it can upload and program firmware of Marco and other function key from PC directly.
PE512X can receive alarm information from matrix to trigger other auxiliary operation or
relay.
3 communication ports to have RS485/RS422/RS232, baud rate can set.
With 10M/100M Ethernet port optional.
Operation keys display on 240x128mm LCD by icon.
LCD indicate system status, operation success indicator, with several tone available,
volume can set.
With 3-D joystick
Technology Specification
Display method:
Communication mode:
Communication speed:
Connection method:
Relay drive:
Key quantity:
Pan-tilt control:
Power failure protection:
Working temperature:
Working voltage:
Power:
Weight:
Dimension:
Installation method:
PE512X icons
Lots of icon of PE512X to express functions, we suggest user to know well usual icon.
240mm×128mm LCD
RS-485/RS-422/RS-232/Ethernet 10/100M
can set
RJ45
1A/110VAC or 3A/24VDC
46
3 or 4-asis joystick
10 years
-10 ℃ ～ +45℃
9VDC
5.0W
1.5KG
370（L）×190（W）×55（H）mm
desktop

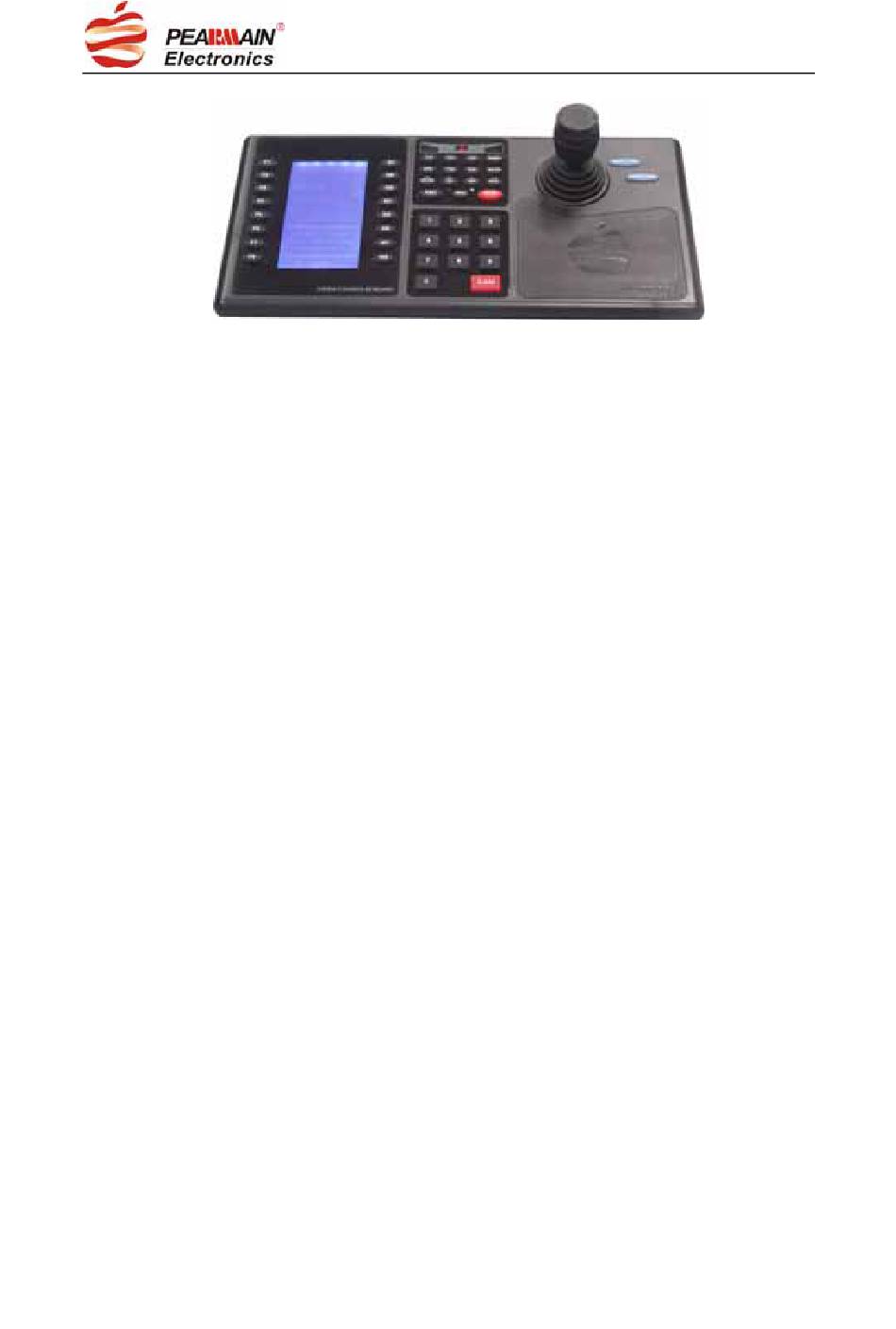

PE512X Universal Keyboard

Advertisement

loading
Need help?

Need help?

Do you have a question about the PE512X Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Pearmain PE512X Series

  • Page 1 PE512X Universal Keyboard PE512X series is Universal keyboard to Matrix switcher, DVR and pan-tilt (speed dome), to offer system program, switch & pan-tilt and lens control, etc. function, with Pelco, Samsung, etc. protocol, to make PE512X can be compatible to popular platform.
  • Page 2 PE512X Universal Keyboard System icon confirm cancel input exit menu confirm store backlight display set to indicate command running next page of LCD menu previous page of menu next page of menu right page of menu left page of menu power forbid invalid...
  • Page 3 PE512X Universal Keyboard There is a basic principle of PE512X, 1、 usual function can be on main key. 2、 LCD OSD menu operation area to run unusual(senior) function and system parameter set. Input switch Main for input value, including camera number to call, monitor number to call, etc. Function key To run usual operation, e.g.
  • Page 4 PE512X Universal Keyboard Usual operation function As followings, to input numeral s SITE to call wanted S matrix (s site) m MON To call wanted m monitor（output） n CAM To switch camera n(input) to wanted monitor Joystick movement To control direction of pan-tilt, or move cursor in menu Joystick rotation Zoom in or zoom out NEAR/FAR...
  • Page 5 PE512X Universal Keyboard Button: Function button: function transaction key, current function display on screen. （ ） Such as F1 of above diagram to choose pan-tilt. Marco command: Marco transaction key. Information: Function item: function of function-key will change according to operation status, which indicate current function of proper keys.
  • Page 6 PE512X Universal Keyboard Power-on When power-on, it will display manufacturer logo, keyboard model, then it will display user interface, as followings, User log-in In condition of user log-in, it will display function model of current keyboard, PE5123RS can display “receiver/driver speed dome” or “DVR” 、...
  • Page 7 Keyboard management Set use environment of keyboard Choose Keyboard model To choose keyboard as direct control DVR, receiver/driver or control PEARMAIN matrix. Initialization set is to control “NET matrix”. Set FUN In usual system operation, every time to press FUN, current operation will switch during “master controller DVR controller...
  • Page 8 1.3.3 Baud rate It can choose baud rate, stop-bit, parity-bit Initialization set is 9600, 4800,2400,and none. Speed dome setup Similar to “ DVR setup”, besides PEARMAIN protocol, it also can choose Pelco P/D. Initialization protocol is “PEARMAIN” protocol. Marco setup It must use attached CD together to set Marco, which is only for keyboard with Marco, details for Marco set software.
  • Page 9 PE512X Universal Keyboard ID setup It can set keyboard ID,MAC or IP. Keyboard ID It main use for matrix to judge command source, same matrix can have multi-keyboard, so it should set ID for different keyboard. Initialization ID is 0. It should set MAC when Keyboard use for Ethernet, MAC should be different to other device in Ethernet.
  • Page 10 PE512X Universal Keyboard normal communication and correct password. Basic operation After correct log-in, basic operation interface will display. Many function model will display, it can not display on same screen, to press F8 to next page, all function will display. SITE：01 SITE：01 MON：001...
  • Page 11 PE512X Universal Keyboard SITE：02 SITE：02 SITE：02 MON：004 MON：004 MON：004 CAM：0001 CAM：0001 CAM：0003 ENTER：_ _ _ _ ENTER：_ _ _ 3 ENTER：_ _ _ _ to input MON to input 3 to input CAM User can see followings, When input numeral, it will display wanted numeral after “ENTER” ; When to press function, it will display key name in real-time condition.
  • Page 12 PE512X Universal Keyboard To press F1 pan-tilt key , then it can operate further pan-tilt, speed dome, etc. superior function, as following diagram, SITE：01 MON：001 CAM：0001 ENTER：_ _ _ _ Line scan In Lin scan, to press to set left-limit, to set right-limit, ESC to basic interface.
  • Page 13 PE512X Universal Keyboard “001” on above diagram to indicate to choose tour 1. Park function To set park time, it will auto call home position, preset or other park action, or cancel park function. Patter scan To input wanted pattern number, to confirm, To go to “setup”, then following action of pan-tilt and lens will record as pattern.
  • Page 14 PE512X Universal Keyboard When it indicates to input DVR ID, which can run usual functions o f DVR, as following diagram, , 2-window （ window-in-window ） Multi-window: single window , 4-window 9-window , 16-window ，or previous record To choose designated record channel , stop record , next record...
  • Page 15 PE512X Universal Keyboard User password change User can change its password, please operate according to menu, there it will indicate password has been changed or not. Exit It can exit from operation interface and go back user log-in. FUN operation After administrator set function of FUN, user can press FUN key to switch current operation function in user interface.
  • Page 16 To control PE50、PE50M、PE60:it is password of corresponding to matrix. 2、 Keyboard type: NET master 3、 FUN: Matrix DVR Speed dome 4、 DVR set Communication protocol: DVR protocol of PEARMAIN （ ） Communication port: RS232 COM3 Baud rate: 9600,8,2,NONE 5、...
