BAHAG UR42-5ZM-3L Installation Instructions

CEILING FAN

INSTALLATION INSTRUCTIONS

MODEL: UR42-5ZM-3L
CAREFULLY READ THESE INSTRUCTION BEFORE MOUNTING THE FAN.
KEEP ORIGINAL CARTON AND STYROFOAM AS WARRANTY REPAIR AND SERVICE WILL NOT
BE CARRIED OUT UNLESS THE FAN IS RETURNED IN COMPLETE ORIGINAL PACKING.

SAFETY PRECAUTIONS

1. Never attach the fan to a power point, but to the ceiling itself.
2. The minimum distance between the blades of the fan and the floor must be 2.3m. The minimum
carrying capacity of the hook from which the fan is hung must be 100kg.
3. Make sure to install all poles disconnection switch having a contact separation of at least 3mm
between poles in the supply wiring to the ceiling fan.
4. The model and type reference of luminaries that may be installed in fans that are constructed for
this purpose.
5. Switch off the power before connecting or repairing the fan.
6. The electrical wiring must be in accordance with the local regulation.
7. The fan must be properly grounded to avoid the risk of electric shocks.
8. Never mount the fan in a moist or wet room.
9. Be careful when working near the rotating blades.
CAUTION
Always have your fan installed by someone who is knowledgeable about electrical wiring.

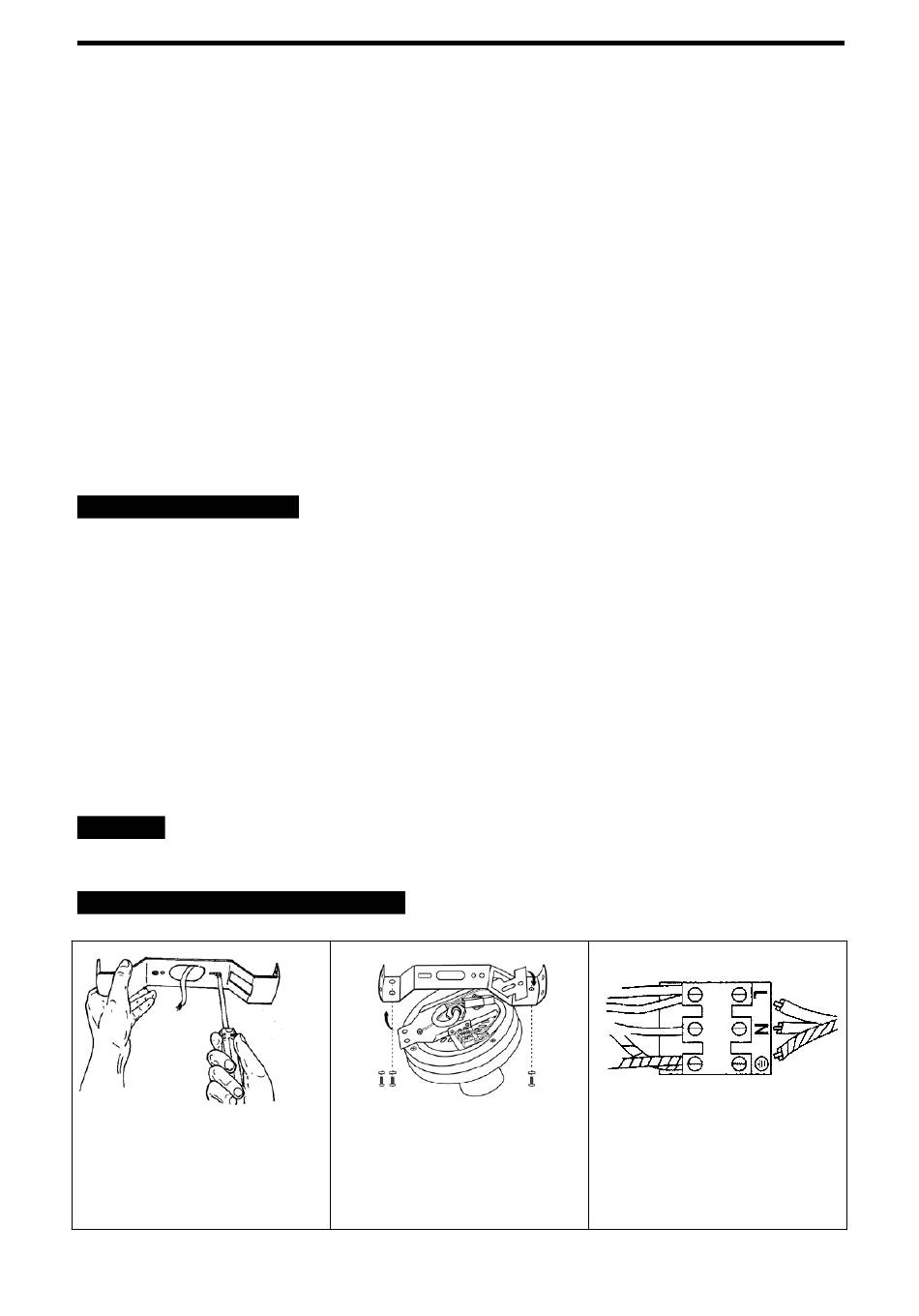

FAN INSTALLATION ILLUSTRATION

1. Locate and mark the centre of the
joist, pass the supply wires through the
hole in the supporting bar, secure to
the ceiling joist by using the spring
washers, flat washers, and the 50mm
wood screws.
2. Use the square hole at one end of
the supporting bar to hang fan on the
hook of the hanger.
1
3.
Connect the wires from the earthed
mains supply to the terminal block.
