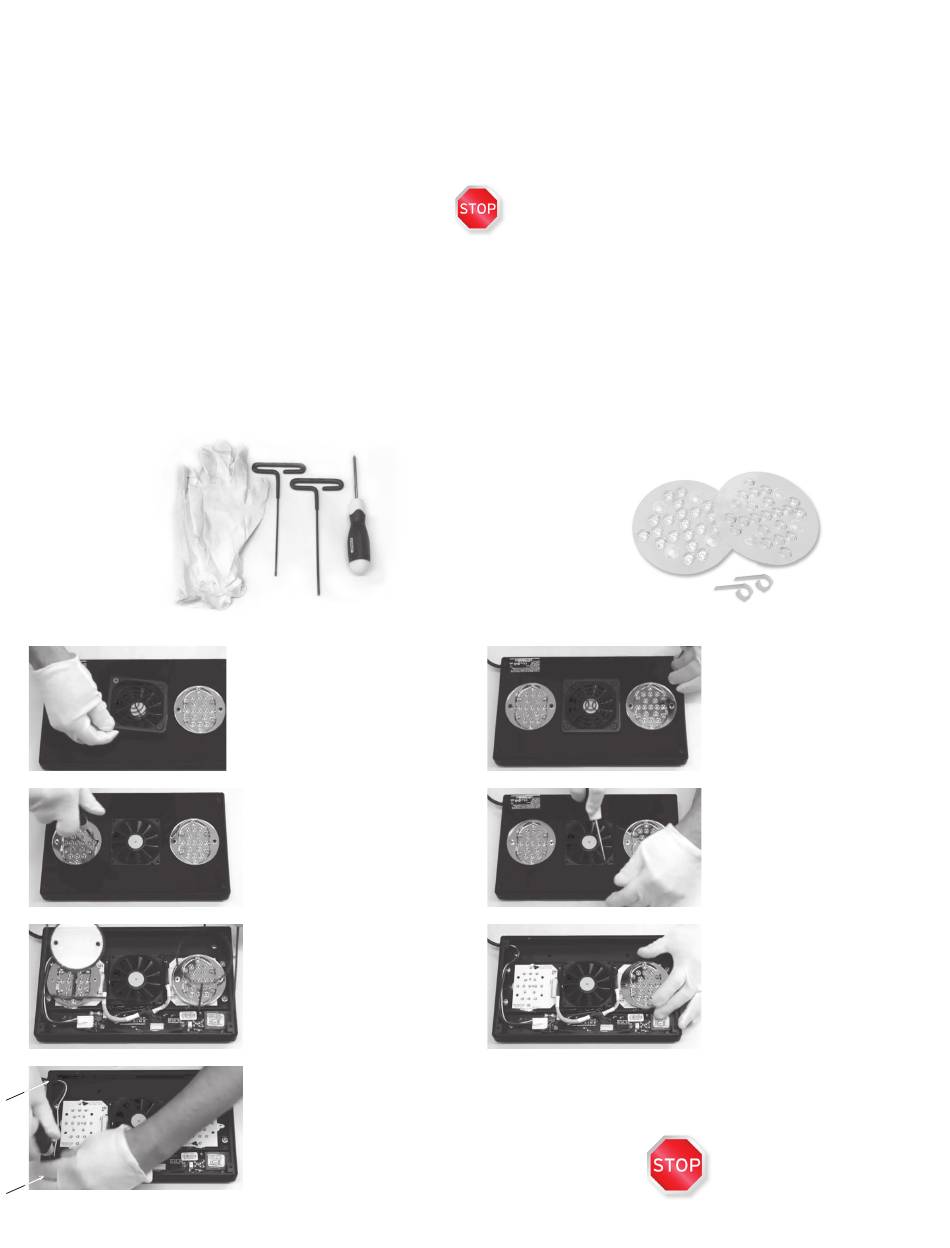

Ecotech Marine TIR Installation

• Installation of TIR lenses will increase the light output from your Radion fixture. Overlighting your tank may cause damage to inhabitants.
• Before starting this process, ensure that your Radion XR30w is disconnected from its power supply.
• Place the Radion on a soft surface to protect the cover plate from scratches.
• EcoTech Marine recommends the use of gloves during this process to prevent any fingerprints from getting on the LED clusters. Fingerprints
could cause a decrease in light output.
• EcoTech Marine is not responsible for any damage caused to the Radion, your aquarium and its livestock, or your property as a result
of improper use of the TIR Lens Kit.
• Installation of the TIR Lens Kit will not affect your existing warranty of the Radion XR30w.

TOOLS NEEDED:

Phillips screwdriver, 2.5mm & 3mm Allen keys and gloves
INSTALLATION OF THE
TIR LENS
FOR THE RADION XR30w
View the video at www.ecotechmarine.com/tirlens/
STEP 1:
REMOVE PHILLIPS FAN
SCREWS (4) AND REMOVE FAN
GRILL ASSEMBLY (2 PIECES).
STEP 3:
REMOVE PHILLIPS LENS
SCREWS (2 FOR EACH LENS)
AND REMOVE LENSES.
(Discard reflectors. Keep screws.)
STEP 5:
REMOVE RUBBER GASKET.
STEP 7:
REMOVE HEATSINK SCREWS
FROM HOUSING SIDE WHERE
WIRES CROSS (2).

INCLUDED IN TIR LENS KIT:

STEP 2:
REMOVE PHILLIPS BOTTOM
PLATE SCREWS (4) AT
OUTER CORNERS.
STEP 4:
REMOVE BOTTOM PLATE
USING NOTCH IN FAN AND A
SCREWDRIVER TO FACILITATE.
STEP 6:
REMOVE 2.5MM REFLECTOR
SCREWS (4) AND REMOVE
REFLECTOR.
for second reflector.)
You'll need supplied wire ties (2) and
TIR lens (2) to continue.
wire ties (2), TIR lens (2)
(Repeat this process
Continued
