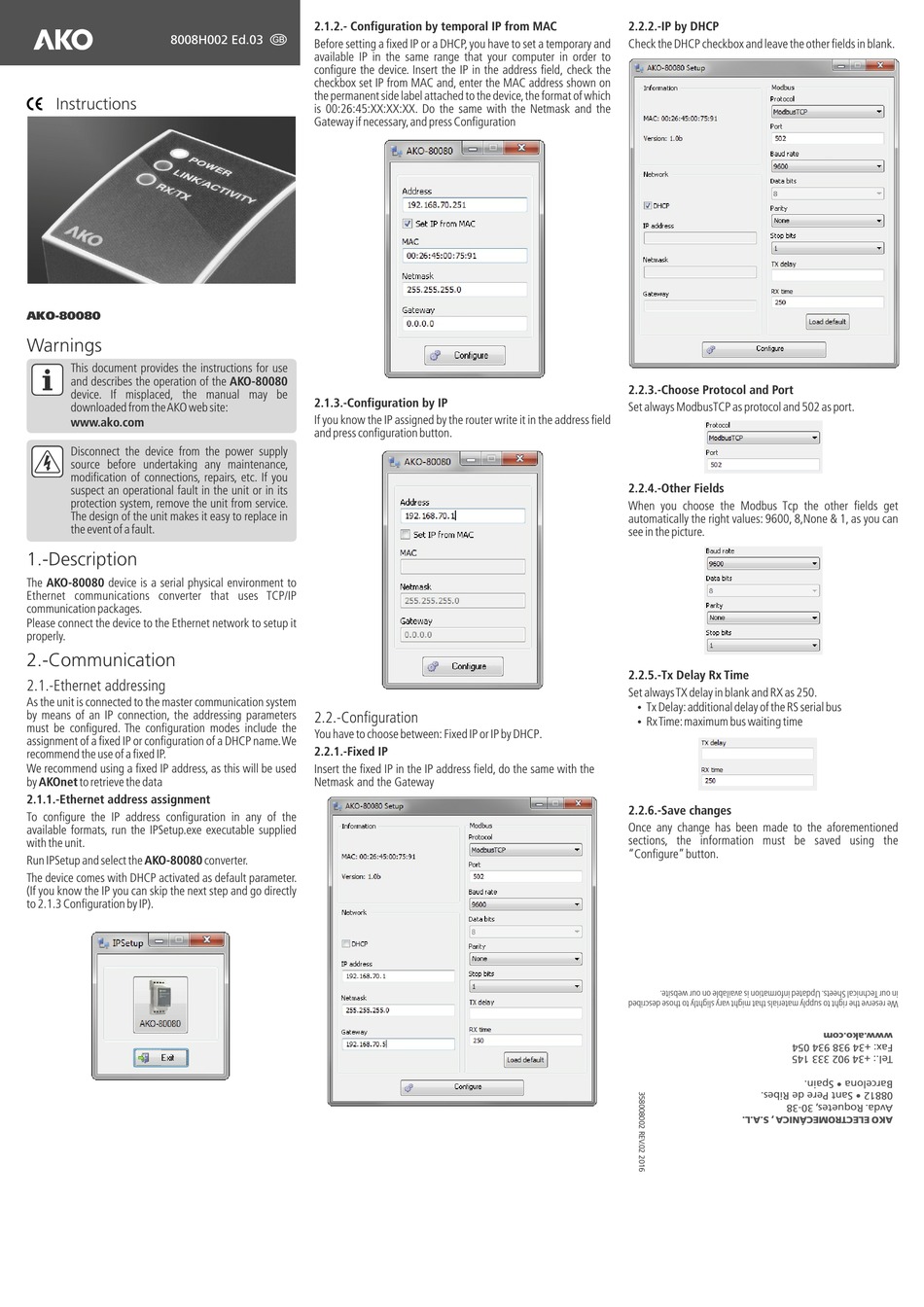

AKO 80080 Instructions

8008H002 Ed.03
Instructions
AKO-80080
Warnings
This document provides the instructions for use
and describes the operation of the AKO-80080
device. If misplaced, the manual may be
downloaded from the AKO web site:
www.ako.com
Disconnect the device from the power supply
source before undertaking any maintenance,
modification of connections, repairs, etc. If you
suspect an operational fault in the unit or in its
protection system, remove the unit from service.
The design of the unit makes it easy to replace in
the event of a fault.
1.-Description
The AKO-80080 device is a serial physical environment to
Ethernet communications converter that uses TCP/IP
communication packages.
Please connect the device to the Ethernet network to setup it
properly.
2.-Communication
2.1.-Ethernet addressing
As the unit is connected to the master communication system
by means of an IP connection, the addressing parameters
must be configured. The configuration modes include the
assignmen t of a fixed IP or configuration of a DHCP name. We
recommend the use of a fixed IP.
We recommend using a fixed IP address, as this will be used
by AKOnet to retrieve the data
2.1.1.-Ethernet address assignment
To configure the IP address configuration in any of the
available formats, run the IPSetup.exe executable supplied
with the unit.
Run IPSetup and select the AKO-80080 converter.
The device comes with DHCP activated as default parameter.
(If you know the IP you can skip the next step and go directly
to 2.1.3 Configuration by IP).
2.1.2.- Configuration by temporal IP from MAC
GB
Before setting a fixed IP or a DHCP, you have to set a temporary and
available IP in the same range that your computer in order to
configure the device. Insert the IP in the address field, check the
checkbox set IP from MAC and, enter the MAC address shown on
the permanent side label attached to the device, the format of which
is 00:26:45:XX:XX:XX. Do the same with the Netmask and the
Gateway if necessary, and press Configuration
2.1.3.-Configuration by IP
If you know the IP assigned by the router write it in the address field
and press configuration button.
2.2.- Configuration
You have to choose between: Fixed IP or IP by DHCP.
2.2.1.-Fixed IP
Insert the fixed IP in the IP address field, do the same with the
Netmask and the Gateway
2.2.2.- IP by DHCP
Check the DHCP checkbox and leave the other fields in blank.
2.2.3.-Choose Protocol and Port
Set always ModbusTCP as protocol and 502 as port.
2.2.4.-Other Fields
When you choose the Modbus Tcp the other fields get
automatically the right values: 9600, 8,None & 1, as you can
see in the picture.
2.2.5.-Tx Delay Rx Time
Set always TX delay in blank and RX as 250.
Tx Delay: additional delay of the RS serial bus
Ÿ
Rx Time: maximum bus waiting time
Ÿ
2.2.6.-Save changes
Once any change has been made to the aforementioned
sections, the information must be saved using the
"Configure" button.
