LuxHome LHC110SU Instruction Manual

433mhz wire free keypad control panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
433MHz Wire Free
Keypad Control Panel
LHC110SU
Instruction Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LHC110SU and is the answer not in the manual?

Questions and answers

Summary of Contents for LuxHome LHC110SU

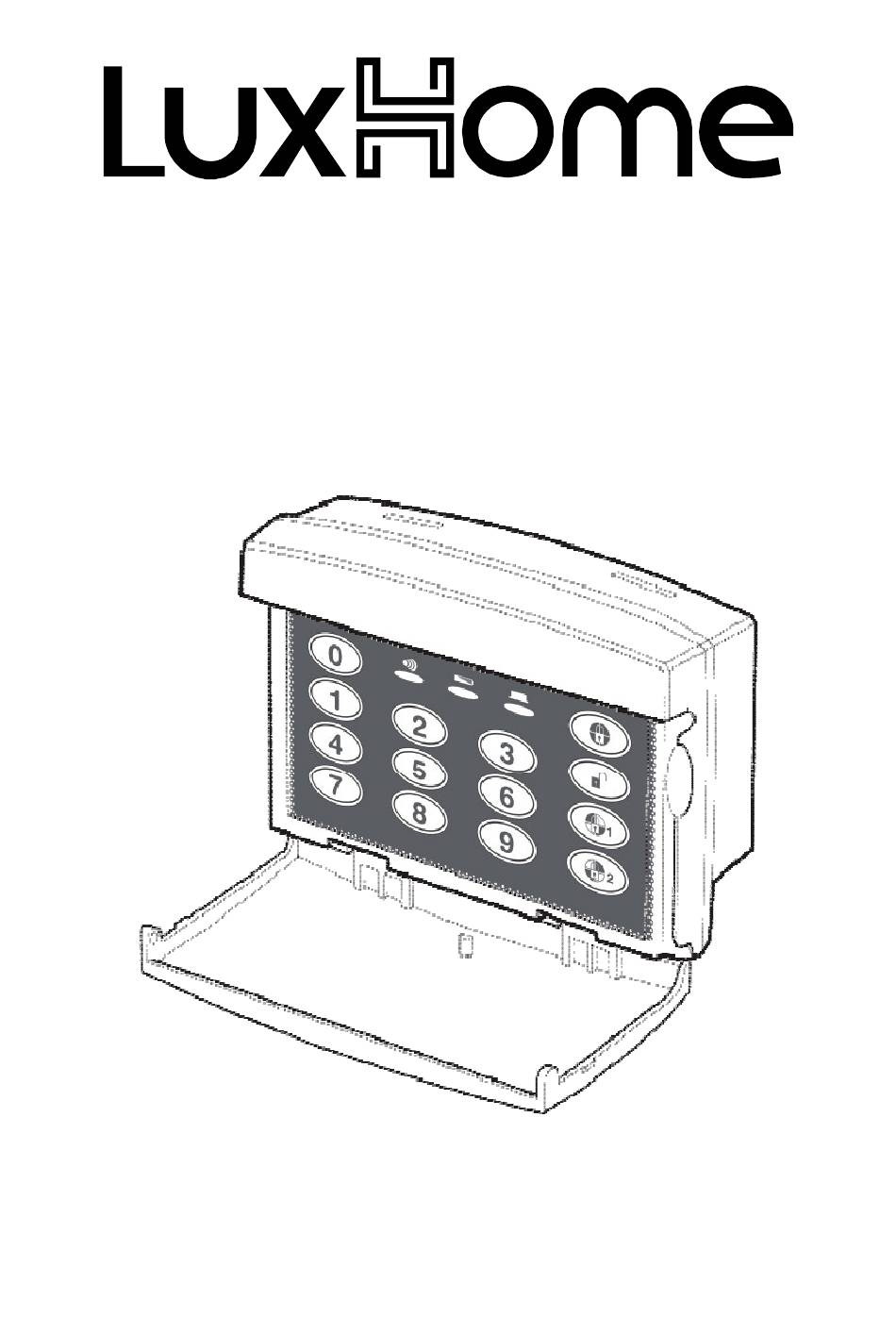

  • Page 1 433MHz Wire Free Keypad Control Panel LHC110SU Instruction Guide...
  • Page 2 System Installation and Operating Instructions and be retained for future reference. Introduction The LuxHome Wire Free Keypad Control Panel (hereafter referred to as Keypad) is designed for use with LuxHome Wire Free Intruder Alarm systems operating on 433MHz only. Transmit Low Battery...
  • Page 3 features that will immediately initiate a Full Alarm condition when activated. Any attempt to open the casing of the Keypad will immediately initiate a Full Alarm condition even if the system is disarmed, (unless the system is in Service, Test or Programming modes).
  • Page 4 Installing and Configuring the Keypad If you have a system with a main Control Panel, ensure it is in Test or Programming Mode. If you have a system without a Control Panel, ensure that the Siren is in Service mode. Fig.
  • Page 5 great importance so as to avoid the tamper switch being falsely triggered. Note: The wall plugs supplied with the product are not suitable for plasterboard walls. If mounting the Keypad on to a plasterboard use appropriate wall plugs. 4. Undo and remove the two fixing screws in the rear of the Keypad and remove the rear battery cover.
  • Page 6 To verify the compatibility of your system, follow two steps for testing: 1) Connect the PP3 battery. ) Press together for more than  seconds. The Keypad will send the Panic signal to the Control panel/Siren. If the Control panel/ Siren does not react, adjust the jumper link J3 accordingly.

  • Page 7: Testing The Keypad

    Fig. 6 Testing the Keypad Ensure that the Control panel/Siren is in Test or Programming Mode. 1. Press to arm the system. User Access Code . Press and hold buttons together, after approximately  seconds, an alarm will be initiated. 3.
  • Page 8 Part-Arm: (for Control Panel Systems) Press for Part-Arm 1. User Access Code Press for Part-Arm . User Access Code Delay-Mode: (for Siren Only Systems) To Arm the system in Delay Mode enter the User Access Code followed by either of the ‘DELAYARM’ buttons on the Keypad: User Access Code User Access Code The Siren will acknowledge the signal by beeping once and then...
  • Page 9 Enabling the Panic function: 1. Press . Enter User Access Code 3. Press ; the LED will illuminate once and flash twice. 4. Press 5. Press ; the LED will illuminate once and flash three times to confirm the setting has been accepted. Disabling the Panic function: 1.

  • Page 10: Resetting To Factory Default

    Inputting the House Code In order to prevent any unauthorised attempt to operate or disarm your system; you must configure your system to accept radio signals only from your own system devices. This is done by setting a series of eight miniature (DIP) switches in all devices to the same ON/OFF combination (The House Code) selected by the user/ installer.

  • Page 11: Changing The User Access Code

    code to factory default by following the steps below: 1. Remove the battery. . Press and hold any key for more than 1 second. 3. Set the Jumper link J as shown on Fig. Fig. 7a Fig. 7b 4. Refit the battery and test it by pressing the default User Access code of 1  3 4.

  • Page 12: Replacing The Batteries

    5. Press ; the LED will illuminate once and flash three times to confirm the setting has been accepted. If the LED does not flash, wait five seconds and re-enter the programming sequence from the beginning. Disabling the Keypad If a sequence of more than 16 incorrect key presses is entered the Keypad will be disabled for 1 minute.

  • Page 13: Anti-Tamper Protection

    3. Undo the two fixing screws in the rear cover and remove the battery cover. 4. Replace battery with a new 9V PP3 Alkaline battery. 5. Replace and fix the rear battery cover and then refit and secure the Keypad onto the wall plate. Solar Siren Operating Mode Solar Siren ON To switch the Solar Siren into Operating Mode:...

  • Page 14: Troubleshooting

    A copy of your original invoice/receipt. b. A covering letter giving your full contact details, including email address (if applicable). c. A description of the fault or problem. LuxHome Alarm Systems Manufactured by Everspring Copyright © 013. All Rights Reserved.
