Forms + Surfaces LIGHT COLUMN BOLLARD Installation Instructions

LIGHT COLUMN BOLLARD
MATERIALS INCLUDED
a
b
c

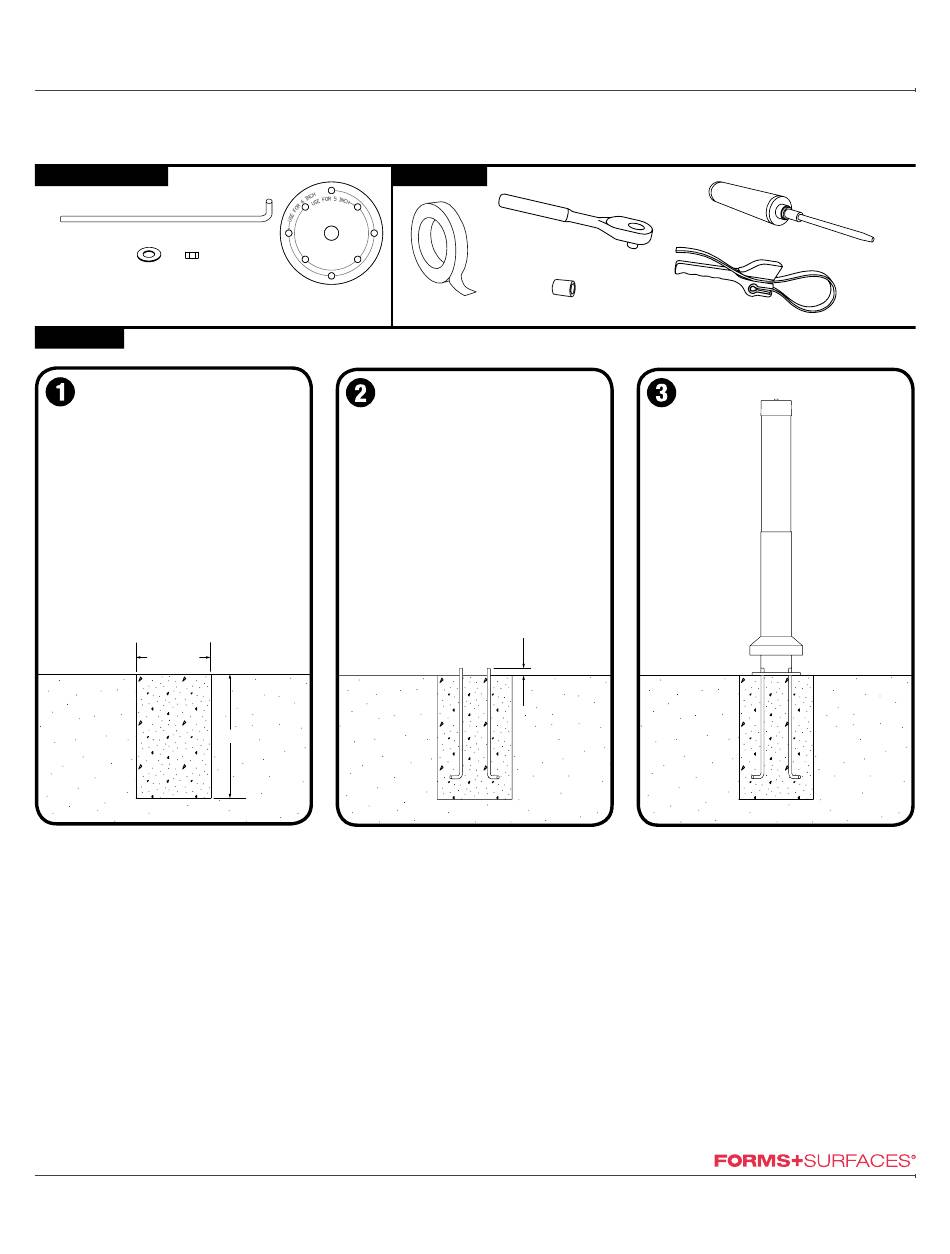

STEP BY STEP FOR ALL STANDARD LIGHT COLUMN BOLLARDS
DIAMETER
DEPTH
Pour concrete footer
• Mix and pour concrete footer according
to concrete manufacturer's instructions.
• A sufficient footer size depends on frost
and other conditions to be determined by
the installer.
• A minimum of a 12" diameter x 20"
deep footer is recommended for Series
500 bollards; minimum of a 13"
diameter x 20" deep footer is
recommended for Series 600 bollards.
T 800.451.0410 | www.forms-surfaces.com
© 2016 Forms+Surfaces® | All dimensions are nominal. Specifications and pricing subject to change without notice. For the most current version of this document, please refer to our website at www.forms-surfaces.com.
TOOLS NEEDED
template
masking tape
(upon request)
a
Insert J-bolt anchors
• Insert 1/2"-13 x 18" galvanized steel
J-bolt anchors (a) into concrete.
• Use template (included) to position J-bolt
anchors in proper locations. Tops of
J-bolt anchors must be a minimum of
1-1/4" above concrete surface.
• Allow concrete to set completely, in
accordance with concrete
manufacturer's instructions, before
moving to step 3.
SURFACE MOUNT WITH J-BOLTS INSTALLATION INSTRUCTIONS
socket wrench
3/4" socket
1-1/4"
a
MINIMUM
Slide bollard onto J-bolt anchors
• Slide bollard base plate over J-bolt
anchors and lower bollard to concrete
level.
• Carefully use masking tape to tape
escutcheon cover further up the body
until installation is complete.
silicone RTV sealant
(optional)
strap
wrench
page 1 of 3 | Rev. 08-01-14
