Sunleaves DuraBreeze Orbital Wall Fan Manual

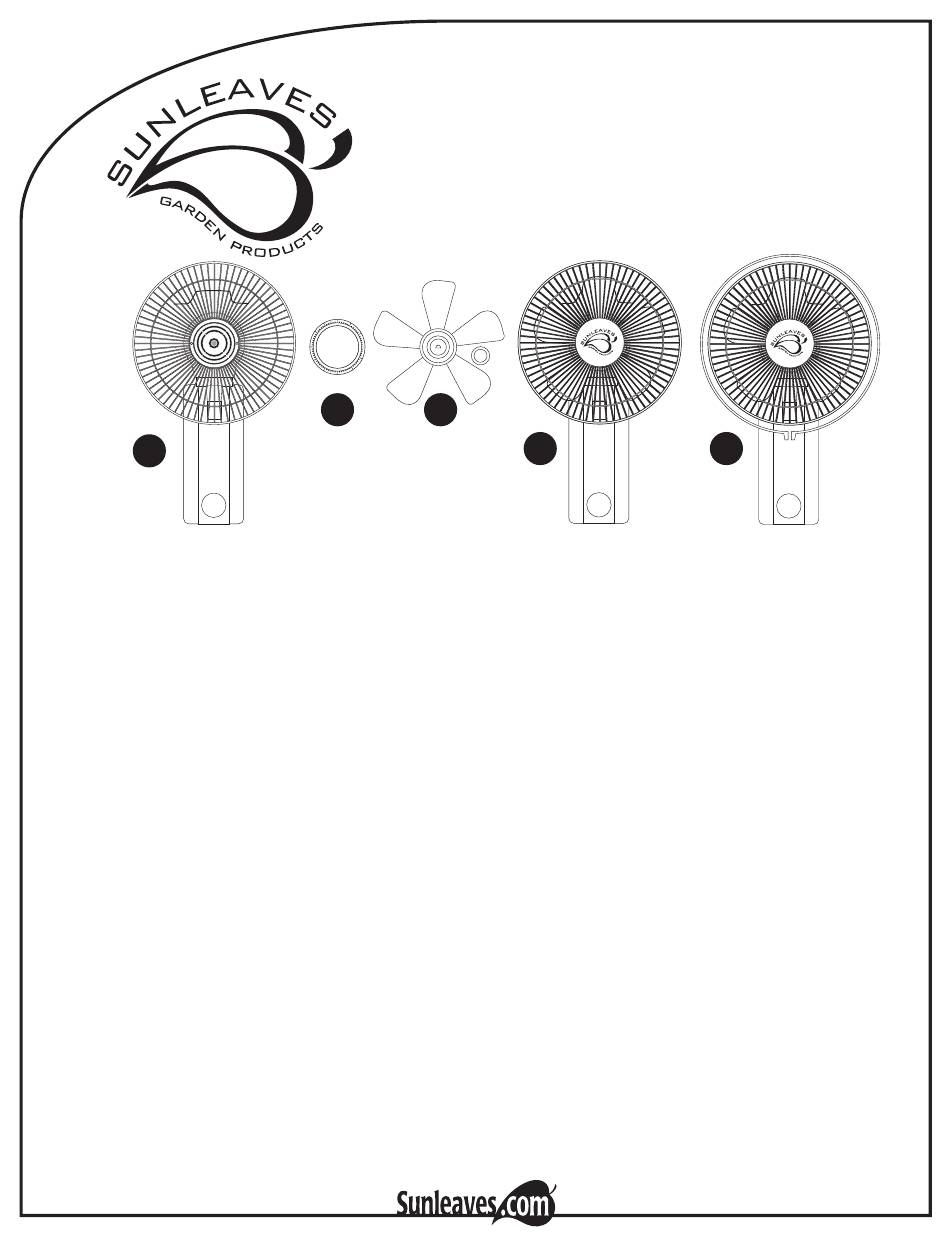

Assembly:

1
0
1
2
3
1. Attach the cage back to the fan motor by aligning the two holes in the center ring of the cage
with the tabs on the motor. The cage handle should face the motor.
2. Thread the cage cap onto the motor. Tighten firmly by hand.
3. Seat the fan blades onto the shaft of the fan motor by aligning the flat side of the blade hole
with the flat side of the motor shaft. Thread the blade cap onto the motor shaft in a counterclockwise direction.
Tighten firmly by hand.
4. Locate the cage front and align it with the cage back. (Check for fan blade clearance between the cages and the
blades. If the blades rub on the cage, repeat the assembly process.)
5. Install the cage retainer over the combined front and back cages. Cages should fit in the grooves provided inside the
retainer. Slide the retainer bolt through the retainer and thread on the retainer nut. Tighten the retainer bolt firmly
with a Phillips head screwdriver. Do not overtighten.

Mounting:

Mount your Sunleaves DuraBreeze Orbital Wall Fan by installing the provided hanging hardware to a sturdy location.
Align the hanging bracket with the slots located on the back of the fan housing to set the fan in place.

Adjustments:

To adjust the angle of the fan head, loosen the thumbscrew that connects the fan motor to the base. Tilt the fan head
to the desired location. Tighten the thumbscrew firmly.

Operation:

Your Sunleaves DuraBreeze Orbital Wall Fan is capable of producing three different breezes. To create a low breeze, set
the rotary dial to "1." To create a medium breeze, set the rotary dial to "2." To Create a high breeze, set the rotary dial
to "3."
To engage the orbital oscillation feature, push down on the knob found at the top of the fan motor. To lock the fan in a
stationary position, pull up on the knob.

Overheat Protection:

For your safety, your Sunleaves DuraBreeze Orbital Wall Fan motor comes with an overheat protection feature. If the fan
motor begins to overheat, the motor will shut off automatically.

UL-Approved plug with Fuse

Your Sunleaves DuraBreeze Orbital Wall Fan comes equipped with a UL-Approved plug with a 5A fuse. In the event the
fuse becomes overloaded and damaged, switch the fan to the "Off" position. Unplug the DuraBreeze Orbital Wall Fan
from the electrical outlet. Replace the fuse by sliding open the fuse compartment found on the plug. Remove the damaged
fuse and insert a new 5A 125V fuse, slide the compartment cover closed. With the fan switch in the "Off" position, plug
in the DuraBreeze Orbital Wall Fan to an electrical outlet, switch the fan on to confirm functionality.
Visit Sunleaves.com for our full line of Dura products
Sunleaves DuraBreeze
Orbital Wall Fan
Thank you for choosing to grow with Sunleaves
Garden Products! Your satisfaction and success
are important to us. For best results, carefully
read the following instructions before using your
Sunleaves DuraBreeze Orbital Wall Fan.
2 3
4
0
1
2
3
5
0
1
2
3
6/2012
