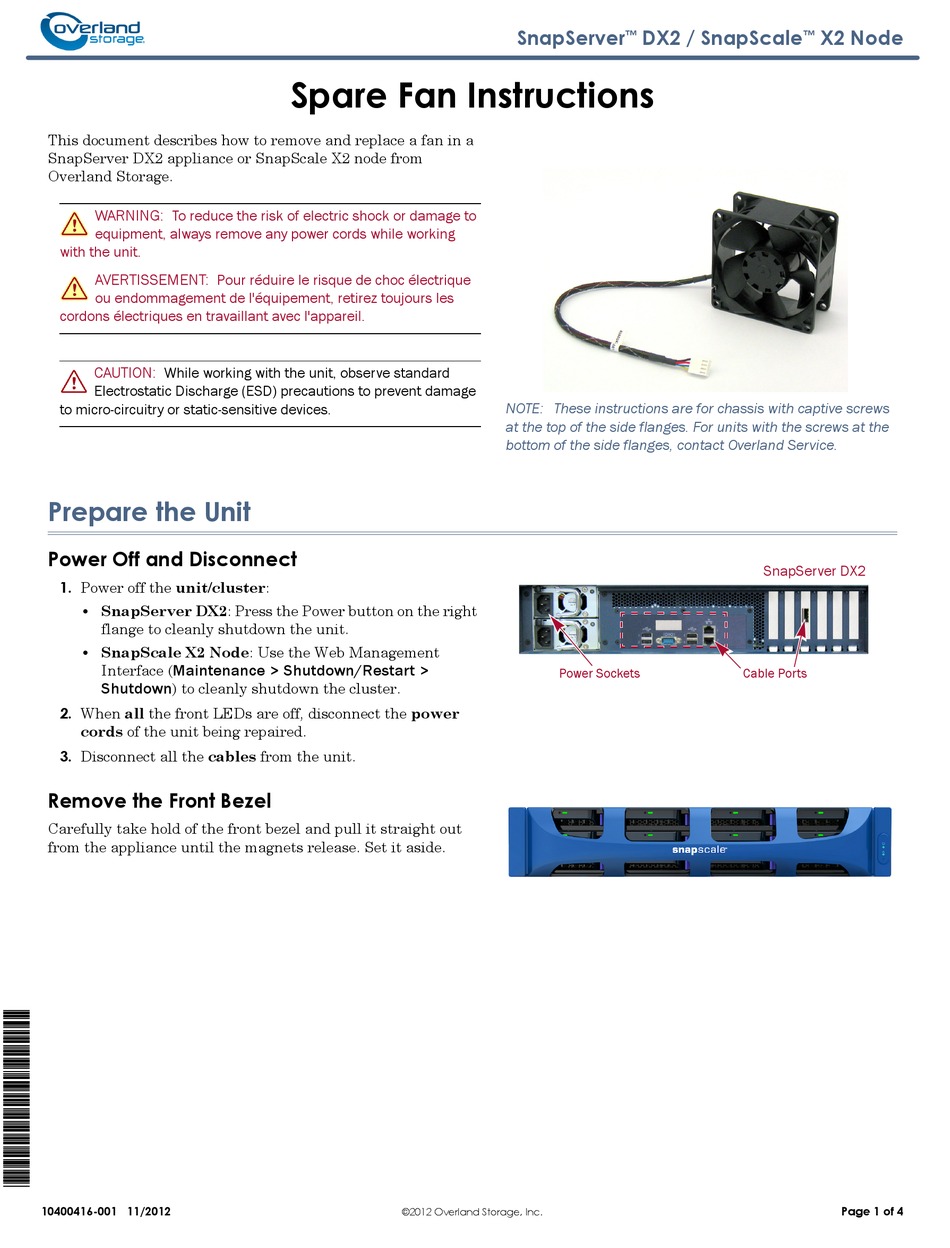

Overland Storage Spare Fan Instructions

This document describes how to remove and replace a fan in a
SnapServer DX2 appliance or SnapScale X2 node from
Overland Storage.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working
with the unit.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.
Prepare the Unit
Power Off and Disconnect
1. Power off the unit/cluster:
• SnapServer DX2: Press the Power button on the right
flange to cleanly shutdown the unit.
• SnapScale X2 Node: Use the Web Management
Interface (
Maintenance > Shutdown/Restart >
Shutdown ) to cleanly shutdown the cluster.
2. When all the front LEDs are off, disconnect the power
cords of the unit being repaired.
3. Disconnect all the cables from the unit.
Remove the Front Bezel
Carefully take hold of the front bezel and pull it straight out
from the appliance until the magnets release. Set it aside.
10400416-001 11/2012
Spare Fan Instructions
©2012 Overland Storage, Inc.
SnapServer DX2 / SnapScale
™
NOTE: These instructions are for chassis with captive screws
at the top of the side flanges. For units with the screws at the
bottom of the side flanges, contact Overland Service.
Power Sockets
X2 Node
™
SnapServer DX2
Cable Ports
 Page 1 of 4
