Summary of Contents for MPS Lighting Beam&Spot 280

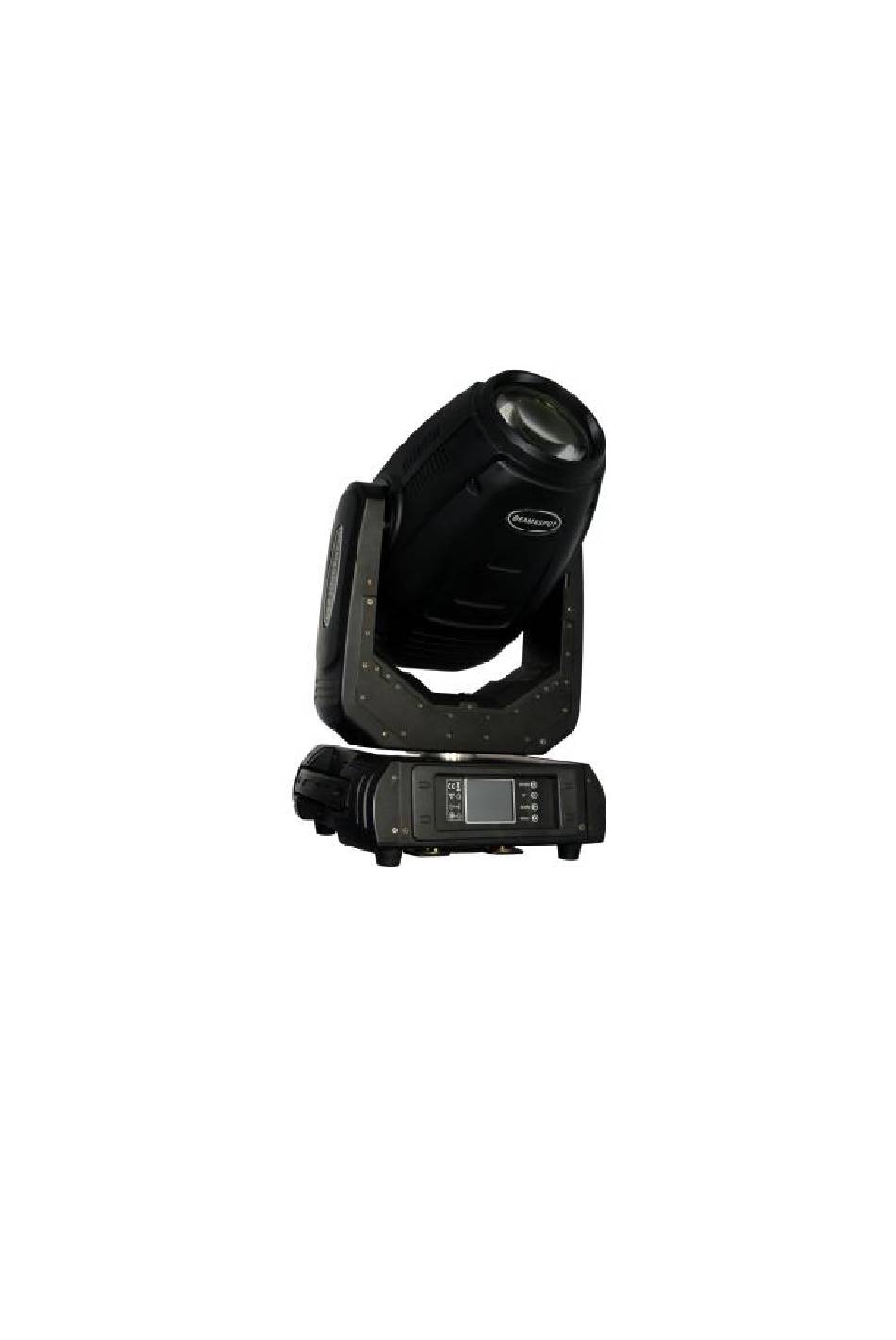

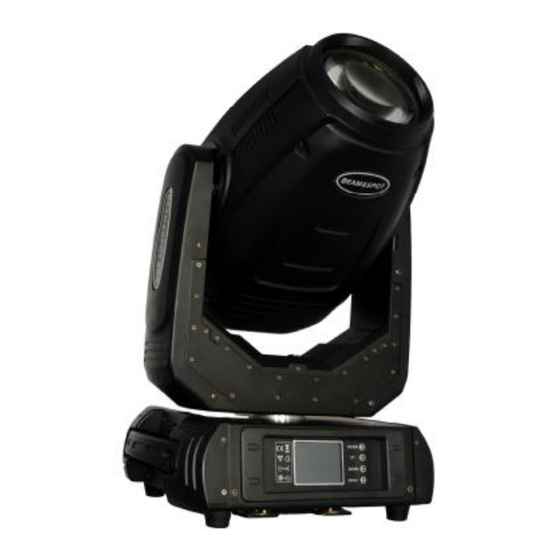

- Page 1 10R 280 Moving Head 3 in 1 User Manual...
-
Page 2: Table Of Contents
Catalog Catalog........02 1.Description .......03 2.Fixture size......03 3.Fixture annotation ......05 4.Warnning......05 5.Packing and transportation........ 07 6.AC Power supply....... 07 7.Lamp and replacement......07 8.Display......08 9.Operation of display......08 10.Channel......13... - Page 3 Products Thanks for choosing 280 Beam Moving Head Spot light. This is our latest developed smart beam&spot light with up-to-date technology,advanced electronic control technology and humanized design . It is more high-efficient, more beautiful surface compared with its peers.. It is in compliance with CE standards and DMX512 Our 280 Beam&spot light adopts OSRAM lamp with short foci focusing system, High quality lens and wide input volt which generate bright and even light distribution and Excellent pictures.
-
Page 4: Fixture Size
Bent design for colour wheel which decrease the lamp temperature and prolong lifetime With Voltage stabilizer inside, can work with unstable input volt. Fixture size：：380MM（L）×330（W）×590（H）MM Net. W: 15.5KG G. W (Paper CTN): 17.5kgs G. W(Flight case/1PC): 35kgs G. W(Flight case/2PCS): 60kgs Paper CTN Size: 465*450*685MM Flight case/1PC: 460*380*71MM Flight case/2PCS: 850*510*740MM... -
Page 5: Fixture Annotation
3. Fixture Annotation 01 — Lens 02 — Body 03 — Y axis lock 04 — Arm 05 — X axis 06 — Holder 07 — Base 01 Display Screen 02 Set key 01 — 5 Pin interface 02 — 3 Pin interface 03 —... - Page 6 4. Warning This item is only used in professional application, not for others. Please check the product to see if there is damage during transportation. Please contact local agents or manufacturer for repair or replacement. IP 20, only for indoor use or outdoor use with good weather. Fixture should be kept at dry place and forbidden use in wet, dusty and high temperature environment.
-
Page 7: Packing And Transportation
4.6 Prevention of flame No installation on Flammable products No wire with temperature control switch or fuse. Use the right fuse. Keep Lighting equipment away from flammable No protection on products within 3 meters. And the temperature must be below 60 Celsius No obstacles obstruct fans or ventilation within 0.5M Keep equipment cooling for at 20 minutes before moving... -
Page 8: Ac Power Supply
A C Power supply HOT BEAM Input volt、Power, Fuse Input volt Power consumption Frequency 110~240V 470W 50/60HZ Fuse Volt Current Model 250V 5×20 Notice!! Only qualified staff are allowed to connect lighting equipment with power Confirm the power supply is in compliance with our fixture and with overload Production and earth leakage protection Earth Yellow-green... - Page 9 2. As taking off the plate, you can see the lamp, don’t take off lamp untill The fixture keep cooling for at least 20 minutes, then take off lamp.(PIC2) (PIC2) 3.Hold the clip with one hand and take lamp with the other hand. (PIC3),plug out Wire and take lamp out after clip loose.(PIC4) (PIC3) (PIC4)
- Page 10 8.Colour wheel and gobo wheel Colour Wheel：13 colours + blank Gobo：14 gobos + blank, working with prism produce fantastic effects 9 Bidirectional rotating Gobos + blank, gobos can be customized.
-
Page 11: Display
Double Prisms (circular prism + linear prism) The prisms has focus, rotation, zooming and shaking function, rotating speed is Adjustable Display Screen... - Page 12 9.Operation of display Menu Operation Run Mode AUTO WIRELESS STAN Chan mode DEFE SMAL X Reverse On/Off Y Reverse On/Off X angle 540°/360° XY OC check On/Off Signal Clear On/Off Full Color On/Off Shortcut Password 1 Features Zero Set Password 2 Password 1 Channel set Password 2...
- Page 13 Simulate DMX Value System Info Other Info Error Info Brightness Level1-Level7 Light delay On/10S/20S/30S Display Setting Menu back Off/10S/20S/30S Flicker On/Off Default On/Off Lamp Setting Manual On/Off Electronic On/Off Display Obverse display/Reverse display Language Chinese/English...
- Page 14 10.DMX Channels Simple Standard Function Value Mode 0－255 X-axis0-540° 0－255 X-axis fine tuning 0－255 Y-axis 0-270° 0－255 Y-axis fine tuning 0－255 X Y-axis speed governing 0－19 blank 20－24 Energy saving mode（230W） 25－129 blank 130－139 140－149 X/Y axis reset 150－159 blank 160－169 Effect reset 170－199...
- Page 15 135－138 deep blue 139－143 yellow 144－147 green 148－152 magenta 153－157 sky blue 158－161 162－166 deep green 167－171 amber 172－176 blue 177－180 orange 181－185 cool colour 186－189 Fluorescent blue 190－220 from fast to slow (water flo) 221－250 from slow to fast 251－255 Auto random colour selection Colour wheel fine position...
- Page 16 144－151 gobo8 152－159 gobo9 160－167 gobo10 168－175 Penlight1 176－183 Penlight2 184－199 Penlight3 200－255 gobo from slow to fast Rotating gobo 0－4 blank 5 - 7 gobo1 8 - 10 gobo2 11 - 13 gobo3 14-16 gobo4 17-19 gobo5 20-22 gobo6 23-25 gobo7 26-28...
- Page 17 130-137 gobo1 138-145 gobo2 146-153 gobo3 154-161 gobo4 162-169 gobo5 170-177 gobo6 178-185 gobo7 186-193 gobo8 194-199 gobo9 from fast to slow(water flow) 200-221 222-223 Stop from slow to fast(water flow) 224-243 244-255 water flow randomly gobo auto-rotate 0－127 index 128－177 anti-clockwise from slow to fast 178－203...
- Page 18 0－255 focus fine 0－255 Autofocus strobe 0－31 strobe close 32－63 strobe 64－95 strobe from slow to fast 96－127 strobe 128－143 from fast to slow Slow off/fast on 144－159 from slow to fast Fast off/slow on 160－191 strobe 192－223 random strobe/from slow to fast 224－255 strobe dimming...
