Celestron SkyPORTAL Quick Start Manual

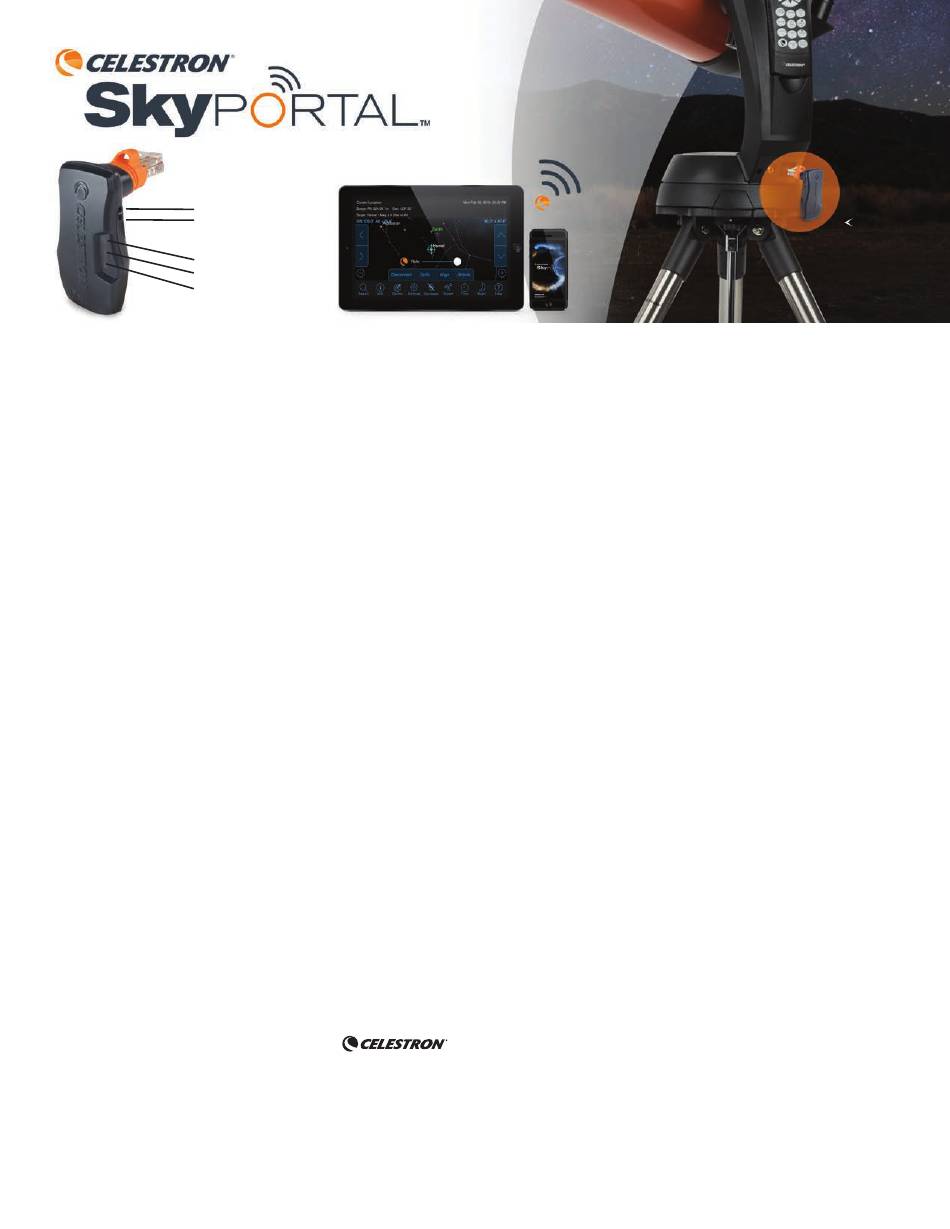

Mode Select Switch
Direct Connect
WLAN (Access Point)

Indicator Lamps

Mode
Connection Status
Activity
Model # 93973
ENGLISH
THE SKYPORTAL APP
Celestron provides a free planetarium application, SkyPortal.
You can control your telescope mount via the SkyPortal app
and this SkyPortal WiFi Module. The app is available as a free
download in the Apple App Store and Google Play.

CHOOSING A CONNECTION METHOD

The SkyPortal WiFi Module allows you to connect to your
telescope in two ways. Direct Connect Mode is useful when
you are in the field and you just want to connect your phone to
the WiFi signal coming from the WiFi Module. This is the fastest
and simplest way to connect. However, this method will eliminate
your ability to connect your phone to the internet for other
uses. If you want to maintain internet access on your device
while connected to your telescope, you will need to connect
using WLAN Access Point Mode.
CONNECTING TO THE SKYPORTAL WIFI MODULE
USING DIRECT CONNECT MODE
1. Slide the Mode Select switch into the Direct Connect position
as shown in the figure below.
2. Plug the Celestron SkyPortal WiFi Module into an available
"AUX" port on your telescope mount. Alternatively, you may
unplug the hand control and replace it with your WiFi Module.
3. Turn on the mount. After a short delay, the Connection Status
lamp will begin flashing.
4. Open the Settings menu on your mobile device and choose
WiFi options.
5. Choose the network named "Celestron-###". The Connection
Status lamp will flash more slowly when your mobile device's
network is connected.
CONFIGURING YOUR WIRELESS LOCAL AREA
NETWORK (WLAN) FOR WLAN ACCESS POINT MODE
1. Connect your phone to your WiFi Module in Direct Connect
mode as described above.
2. Open the Celestron SkyPortal app.
3. Tap the telescope icon on your screen, then tap Connect.
4. Tap the Settings button (gear icon).
5. Select Communication.
6. Select Configure Access Point.
7. Enter the SSID and Password for your wireless network.
8. Tap Send Configuration.
9. Return to the previous menu and tap Use Access Point.
WiFi Module
CONNECTING TO THE SKYPORTAL WIFI MODULE
USING WLAN ACCESS POINT MODE
1. Slide the Mode Select switch to the WLAN (Access Point)
position as shown in the figure.
2. The WiFi Module will attempt to authenticate with the wireless
network automatically. When authentication is successful, the
Connection Status lamp will flash slowly.
3. Open the settings menu on your mobile device and choose
WiFi options.
4. Select the network SSID used in step 7 of Configuring
your WLAN for WLAN Access Point Mode (previously stated).
USING THE SKYPORTAL APP TO FIND OBJECTS
IN THE SKY AND TRACK THEM WITH YOUR
TELESCOPE
1. Connect to your WiFi Module using Direct Connect mode or
WLAN (Access Point) mode.
2. Open the Celestron SkyPortal app.
3. Tap the telescope icon on your screen, then tap Connect and
Align. When SkyPortal identifies your mount, the application will
emit a chime and the Connection Status lamp will stop flashing.
4. Confirm the location and time on your screen.
5. Follow the in-app instructions to complete an alignment.
6. With a completed alignment, you can select objects in the
SkyPortal app and tap GOTO to have the mount center that
object in your eyepiece. The mount will track objects to keep
them centered in the eyepiece.
INDICATOR LAMPS
• Mode: On for Direct Connect mode; Off for WLAN mode.
• Connection Status: Fast flashing when no network is found;
Slow flashing when a network connection is established with
the phone or WLAN; On when the app is connected.
• Activity: Flashing indicates network activity.
© 2019 Celestron All rights reserved
•
celestron.com/pages/technical-support
Telephone: 1(800) 421-9649
2835 Columbia Street Torrance, CA 90503 USA
•
Designed and intended for those 14 years of age
and older. 03-19
