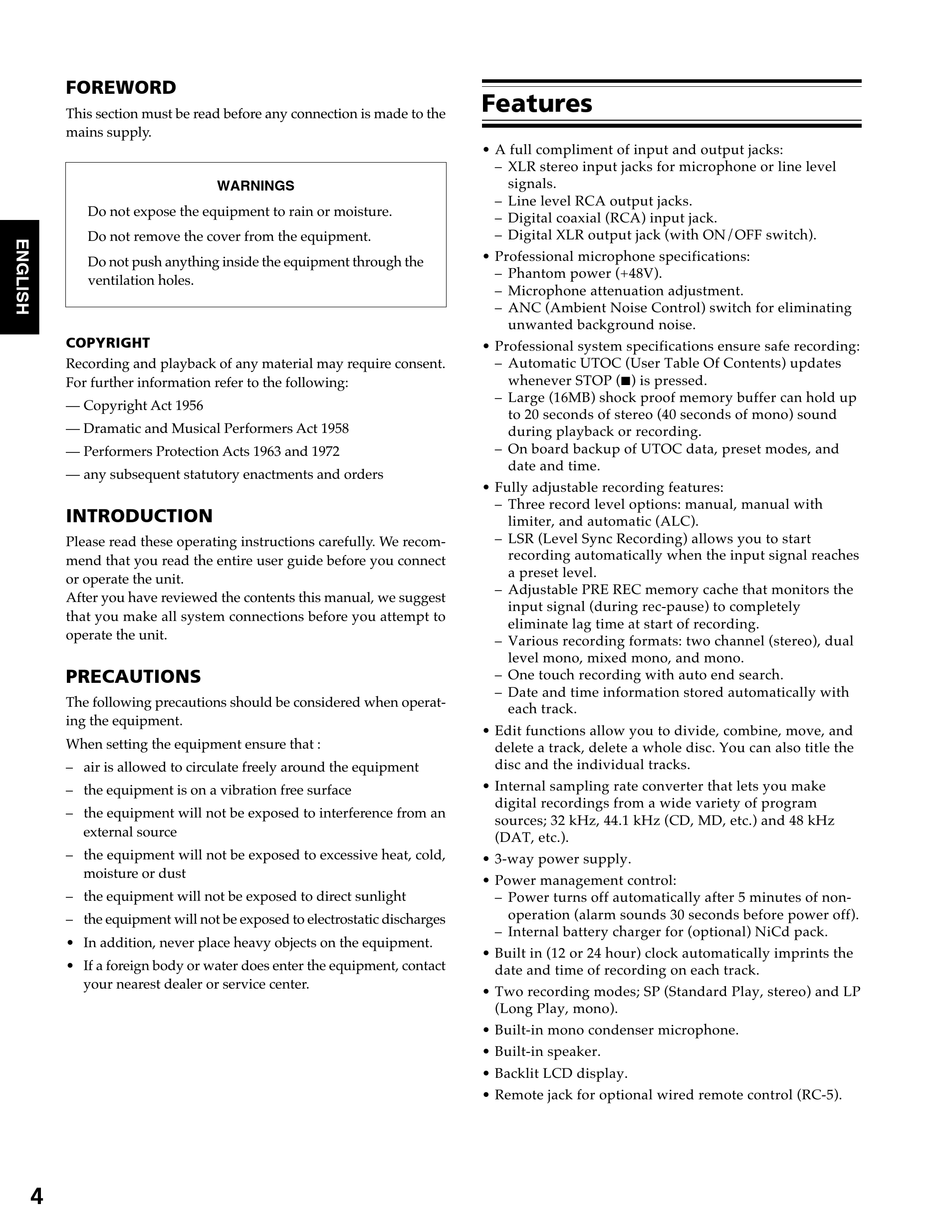

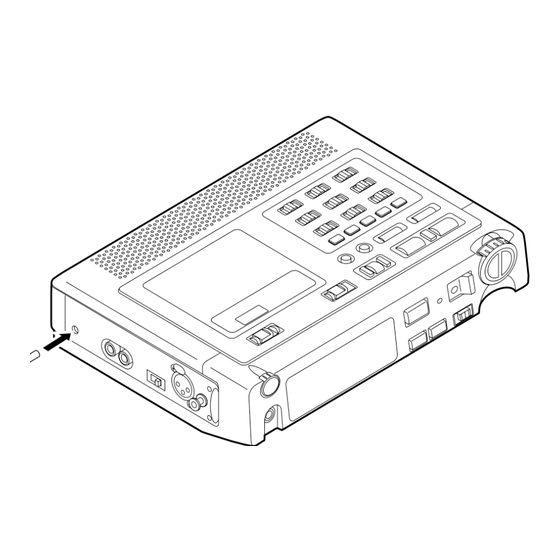

SETTING UP
FOREWORD
This section must be read before any connection is made to the
mains supply.
Do not expose the equipment to rain or moisture.
Do not remove the cover from the equipment.
Do not push anything inside the equipment through the
ventilation holes.
COPYRIGHT
Recording and playback of any material may require consent.
For further information refer to the following:
— Copyright Act 1956
— Dramatic and Musical Performers Act 1958
— Performers Protection Acts 1963 and 1972
— any subsequent statutory enactments and orders
INTRODUCTION
Please read these operating instructions carefully. We recom-
mend that you read the entire user guide before you connect
or operate the unit.
After you have reviewed the contents this manual, we suggest
that you make all system connections before you attempt to
operate the unit.
PRECAUTIONS
The following precautions should be considered when operat-
ing the equipment.
When setting the equipment ensure that :
– air is allowed to circulate freely around the equipment
– the equipment is on a vibration free surface
– the equipment will not be exposed to interference from an
external source
– the equipment will not be exposed to excessive heat, cold,
moisture or dust
– the equipment will not be exposed to direct sunlight
– the equipment will not be exposed to electrostatic discharges
• In addition, never place heavy objects on the equipment.
• If a foreign body or water does enter the equipment, contact
your nearest dealer or service center.
4
WARNINGS
Features
• A full compliment of input and output jacks:
– XLR stereo input jacks for microphone or line level
signals.
– Line level RCA output jacks.
– Digital coaxial (RCA) input jack.
– Digital XLR output jack (with ON/OFF switch).
• Professional microphone specifications:
– Phantom power (+48V).
– Microphone attenuation adjustment.
– ANC (Ambient Noise Control) switch for eliminating
unwanted background noise.
• Professional system specifications ensure safe recording:
– Automatic UTOC (User Table Of Contents) updates
whenever STOP (7) is pressed.
– Large (16MB) shock proof memory buffer can hold up
to 20 seconds of stereo (40 seconds of mono) sound
during playback or recording.
– On board backup of UTOC data, preset modes, and
date and time.
• Fully adjustable recording features:
– Three record level options: manual, manual with
limiter, and automatic (ALC).
– LSR (Level Sync Recording) allows you to start
recording automatically when the input signal reaches
a preset level.
– Adjustable PRE REC memory cache that monitors the
input signal (during rec-pause) to completely
eliminate lag time at start of recording.
– Various recording formats: two channel (stereo), dual
level mono, mixed mono, and mono.
– One touch recording with auto end search.
– Date and time information stored automatically with
each track.
• Edit functions allow you to divide, combine, move, and
delete a track, delete a whole disc. You can also title the
disc and the individual tracks.
• Internal sampling rate converter that lets you make
digital recordings from a wide variety of program
sources; 32 kHz, 44.1 kHz (CD, MD, etc.) and 48 kHz
(DAT, etc.).
• 3-way power supply.
• Power management control:
– Power turns off automatically after 5 minutes of non-
operation (alarm sounds 30 seconds before power off).
– Internal battery charger for (optional) NiCd pack.
• Built in (12 or 24 hour) clock automatically imprints the
date and time of recording on each track.
• Two recording modes; SP (Standard Play, stereo) and LP
(Long Play, mono).
• Built-in mono condenser microphone.
• Built-in speaker.
• Backlit LCD display.
• Remote jack for optional wired remote control (RC-5).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMD-650 and is the answer not in the manual?

Questions and answers

Summary of Contents for Marantz PMD-650

  • Page 1 SETTING UP FOREWORD Features This section must be read before any connection is made to the mains supply. • A full compliment of input and output jacks: – XLR stereo input jacks for microphone or line level signals. WARNINGS – Line level RCA output jacks. Do not expose the equipment to rain or moisture.
  • Page 2: Table Of Contents

    SETTING UP How to Use this Manual Contents This manual is divided into the five sections described SETTING UP below. To find out how to use a specific control, refer to the “Index of Parts and Controls” on page 100. Power Supplies ................
  • Page 3: Power Supplies

    SETTING UP Rechargeable NiCd Battery Pack Power supplies (optional) The PMD650 can also use an optional NiCd rechargeable AC Adaptor battery pack (RB1100). Be sure the battery pack is fully charged before use. Refer to the following illustration to When recording for extended periods, or using this unit in install the battery pack.
  • Page 4: Adjusting The System Presets

    SETTING UP Power Management Adjusting the System The PMD650 is equipped with a sliding POWER switch Presets that toggles the unit between on and off (standby). It also incorporates a power management function that turns the power off automatically after 5 minutes of non- The system presets described below can be adjusted operation when using battery power.
  • Page 5: Setting The Date And Time

    SETTING UP • Sampling rate converter (SRC) Setting the Date and Time This preset lets you use this unit as a Sampling Rate Converter (SRC). When set to On, digital signals input to the DIGITAL IN Before operating the PMD650, perform the following jack are routed through the SRC, converted, and then operations to set the current date and time.
  • Page 6 SETTING UP Viewing the date and time During playback Each time you press DISPLAY, the display switches 1 Time elapsed on current track as shown below according to the state of operation. The display remains in the selected mode until the TRACK disc is ejected.
  • Page 7: Connecting Microphones

    SETTING UP Connecting Microphones Connecting Analog Components Connect the microphones as shown below. The following illustrations show you how to connect You can connect two microphones for stereo to the MIC/ analog audio components for recording or playback. LINE IN L and R (XLR) jacks. Alternatively, you can connect just one microphone (for To record from analog audio components mono recording or dual level mono recording) to the...
  • Page 8: Connecting Digital Components

    SETTING UP Connecting Digital Other Connections Components Remote control The following illustrations show you how to connect An optional wired (RC-5) remote control can also be digital audio components for recording or playback. connected. RC-5 remote To record from digital audio components Connect the source component’s digital output jack to this unit’s coaxial DIGITAL IN (RCA) jack.
  • Page 9: Recording

    RECORDING Recording with the Built-in Recording with External Microphone Microphones Before recording with the built-in mono microphone, Before recording with microphone(s) connected to the make sure the following switches are set correctly. MIC/LINE IN jack(s), make sure the following switches are set correctly.
  • Page 10: Recording Line Sources

    RECORDING Recording Line Sources Recording Digital Sources Before recording analog signals via the MIC/LINE IN Before recording digital signals via the DIGITAL IN jack, jack(s), make sure the following switches are set correctly. make sure the following switches are set correctly. MONO (L ch) STEREO MONO (L ch)
  • Page 11: Recording Operation

    RECORDING REC LEVEL Recording Operation Before recording an analog source, perform the following steps to obtain the appropriate recording level. To have the PMD650 set the recording level automatically, simply This unit can both record LINE or MIC level analog sound set the REC LEVEL switch to ALC.
  • Page 12 RECORDING Operation To pause during recording Press REC PAUSE (8). Slide REC/MARK (¶) to the right to resume recording BACK SPACE (the track number changes). STOP To mark a track during recording Slide REC/MARK (¶) to the right. The current location is marked and the track number increases by one for the subsequent material.
  • Page 13: Playback

    PLAYBACK Operation Basic Operation BACKSPACE PLAY/PAUSE (6) Playback can be monitored through the internal speaker 1¥4 ¢¥¡ or a pair of headphones. Use the HP/SPK VOLUME knob to adjust the level of the internal speaker or headphones. HP/SPK MODE The audio signal is also output from the LINE OUT jacks and DIGITAL OUT jack (if DIGITAL OUT is ON).
  • Page 14: Repeat Play

    PLAYBACK Searching Repeat Play To search forward during play or pause Press and hold FF/NEXT (¢˜¡). You can have the unit play a single track, the full disc, or When the unit reaches the end of the last track while just part of a track repeatedly.
  • Page 15 PLAYBACK Repeating part of a track (A-B) To cancel • Press REPEAT during the A-B repeat playback. REPEAT “REPEAT A-B” disappears. A-B/DEL • Press STOP (7). 1 Start playback. 2 Press A-B/DEL at the beginning of the part you want to repeat. “REPEAT”...
  • Page 16: Dividing A Track

    EDITING Dividing a Track Combining Tracks This function will divide a track into two different tracks. This function will combine two adjacent tracks into one After dividing the track, the total number of tracks track. After combining the tracks, the total number of increases by one and the tracks following the divided tracks decreases by one and the tracks following the track are renumbered automatically.
  • Page 17: Moving A Track

    EDITING Moving a Track Erasing a Disc or Track This function will change the position of any track. First Use the following operations to erase an entire disc or an you select the track you want to move, then you specify individual track.
  • Page 18: Titling A Disc Or Track

    EDITING 5 Press ENTER to enter the selected character. Titling a Disc or Track The blinking moves into the position for the next character. 6 Repeat steps 3 through 5 to complete your title. This function will allow you to input titles for the disc or To correct a character (e.g., ABCD = ABTD) an individual track.
  • Page 19: Additional Information

    ADDITIONAL INFORMATION System Limitations The recording system in this MD recorder is radically different from those used in cassette and DAT decks and is characterized by the limitations described below. Note, however, that these limitations are inherent to the MD recording system and are not a result of mechanical trouble.
  • Page 20: Scms Copy Protection

    ADDITIONAL INFORMATION Rule 1 SCMS Copy Protection You can record from digital program sources (CDs, DATs or pre-mastered MDs) onto a DAT tape or recordable MD via the digital input jack on a DAT or MD recorder. You As a digital audio component, this MD recorder conforms cannot, however, record from this recorded DAT tape or with the Serial Copy Management System (SCMS) MD to another DAT tape or recordable MD via a digital...
  • Page 21 ADDITIONAL INFORMATION Rule 2 Rule 3 You can record a digital signal input from a digital You can record a DAT tape or MD recorded via the DAT satellite broadcast onto a DAT tape or recordable MD via or MD recorder’s analog input jack onto another DAT the digital input jack on the DAT or MD recorder.
  • Page 22: Troubleshooting

    • Sound from the internal (or external) microphone is MARANTZ dealer or service center for help. conveyed via analog circuitry before being converted to a digital signal and recorded. Therefore some analog The unit does not respond to operations.
  • Page 23: Display Messages

    ADDITIONAL INFORMATION Display Messages Specifications DIGITAL AUDIO SYSTEM Blank Disc The inserted disc is blank (nothing has been recorded on System it). MiniDisc digital audio system No Disc Disc There is no disc in the MD slot. MiniDisc Disc Error Recording method The disc loaded in the disc slot is not an audio MD.
  • Page 24 ADDITIONAL INFORMATION AUDIO SPECIFICATIONS GENERAL Frequency Response Power Supply 20 Hz ~ 20 kHz DC 13 V Signal-to-Noise Ratio (IEC-A weighted) Power Consumption 85 dB Recording: 5.5 W Total Harmonic Distortion (at 0 VU) Standby: 3.5 W Dimensions (W x H x D) 0.02% Dynamic Range 264 x 54.8 x 185 mm...
