These luminaries comply with BS EN60598 Class 1(IP20) and are suitable for use in normal indoor conditions. Where use in more

onerous situtations is required, e.g. in part-completed buildings before "drying-out" is completed, or areas where ambient

temperatures are outside the normal temperature range, then consult Crompton Lighting.

Approved normal temperature range: 5°C to 25°C

Preparation for Installation

Remove louvre from housing and peel off remaining protective film from louvre surfaces. Re-fit louvre.

Dimensional Data

Installation

1) Fix ceiling boss to mounting

surface using suitable wood

screw or appropriate M6 fastener.

2) Feed 1.5m long wire into

fastener body as shown.

Screw body into ceiling boss.

Connect supply and earth leads to appropriate connector.

Blue

Brown

Green/Yellow

Note: On emergency luminaires connect the unswitched wire to L2.

The luminaire must be earthed

Note: Emergency and High Frequency luminaires must NOT be megger or high voltage tested.

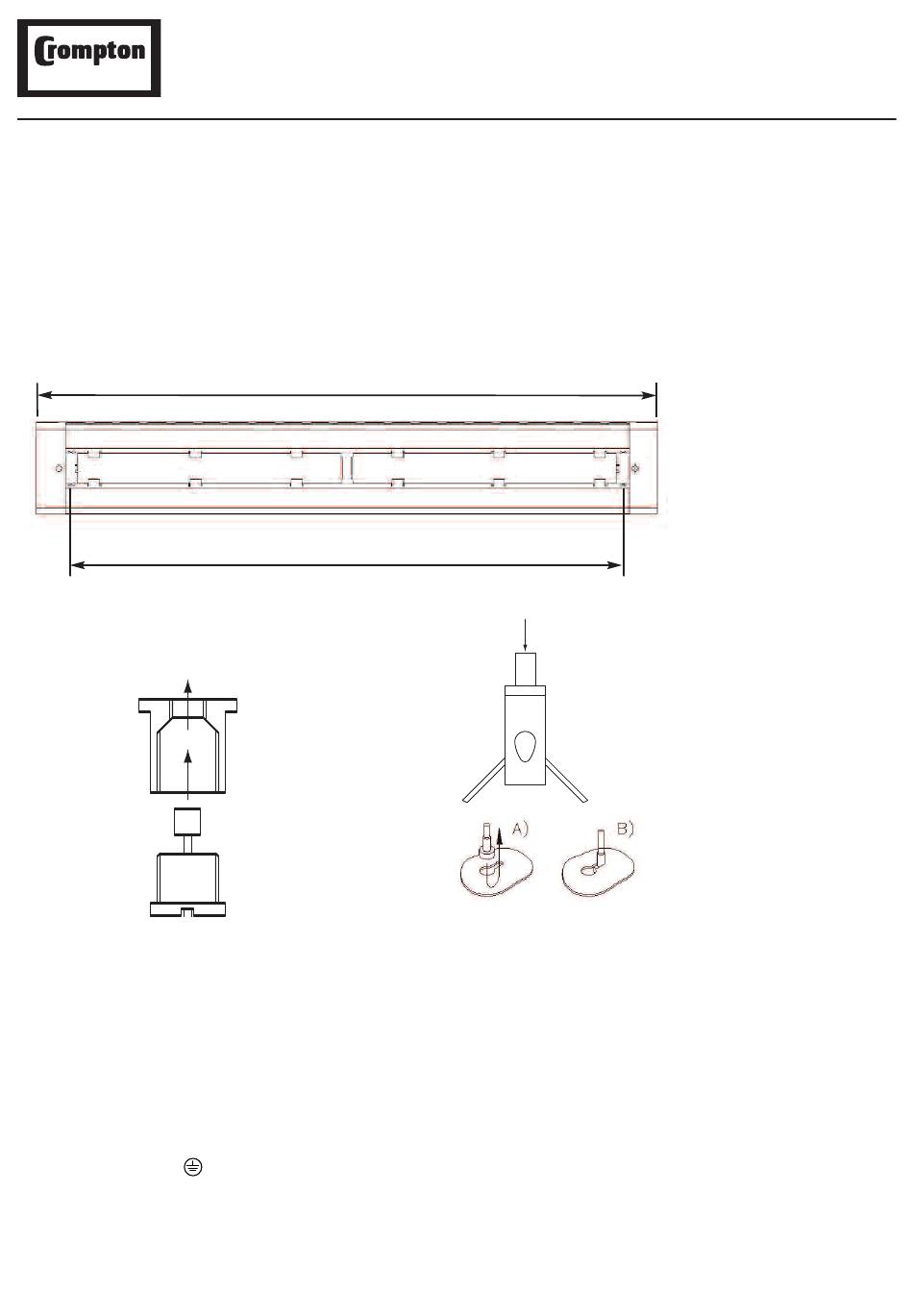

Installation Instructions for:

LASERLINE

28W - 1288 O/A LENGTH

35W - 1588 O/A LENGTH

28W - 1153 MM SUSPENSION CENTRES

35W - 1453 MM SUSPENSION CENTRES

3) Thread 1.5m long wire into clutch

body higher than required to

enable easy downward

adjustment.

4) Offer housing up to 'Y' section wire and

feed nipple ends into keyhole slots.

Adjust height of housing downwards by

pressing top of clutch.

Need help?

Do you have a question about the LASERLINE and is the answer not in the manual?

Page 1 These luminaries comply with BS EN60598 Class 1(IP20) and are suitable for use in normal indoor conditions. Where use in more onerous situtations is required, e.g. in part-completed buildings before “drying-out” is completed, or areas where ambient temperatures are outside the normal temperature range, then consult Crompton Lighting. Approved normal temperature range: 5°C to 25°C Preparation for Installation Remove louvre from housing and peel off remaining protective film from louvre surfaces.
Page 2 Shootbolt Louvre - Installation Attach louvre suspension cord through the hole in louvre end bracket and connect earthing spade onto same bracket. Locate the shootbolts at the cord suspension end of the louvre, into the endplate and swing the other end up into position, pulling back the shootbolt handles to lock into place.
