Summary of Contents for Wrightline PFPDARM1

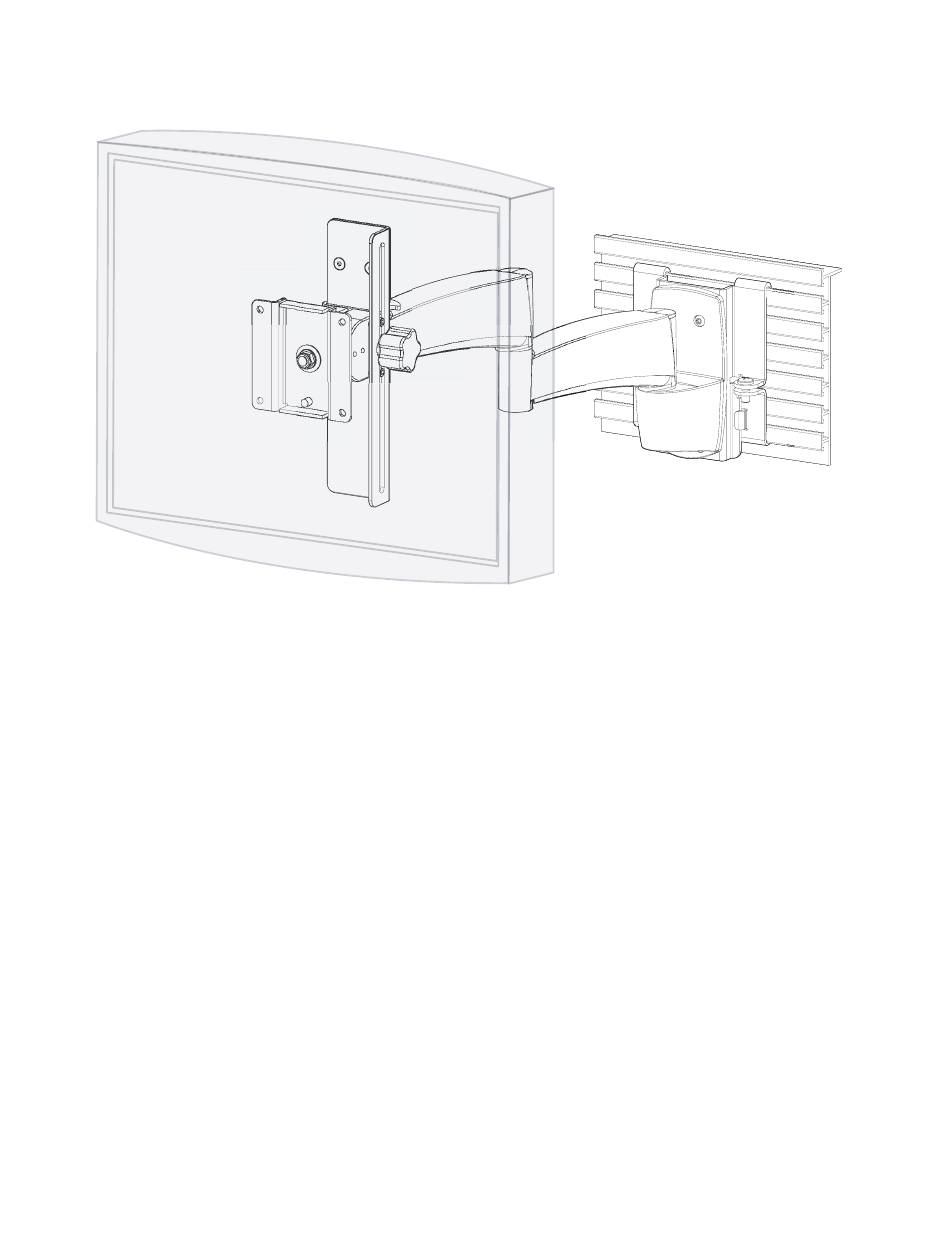

  • Page 1 PFPDARM1 Product Illustration page 1 of 17...
  • Page 2: Tools Required

    PFPDARM1Components & Fasteners 1 each 3/32" 3/16" 1/8" (2.38mm) (4.76mm) (3.17mm) TOOLS REQUIRED Phillips Screwdriver 1/2" Wrench 1/2" Socket Wrench ½" Ø ½" Ø page 2 of 17...
  • Page 3 STEP 1 Install to Slatwall. Use the Phillips Screwdriver to loosen (but not remove) slatwall bracket screws. The upper and lower slatwall brackets will move apart. page 3 of 17...
  • Page 4 With screws still installed, hook the slat wall bracket onto the slatwall. Use the Phillips Screwdriver to tighten screws, drawing upper and lower slatwall brackets toward one another. page 4 of 17...
  • Page 5 STEP 2 Installation Instructions for Monitors with the following hole mounting patterns: 75mm VESA® FPMPMI™ Standard Hole Mount* 100mm VESA® FPMPMI™ Standard Hole Mount* Custom - does not comply with VESA® FPMPMI™ hole pattern standards* * VESA® (Video Electronics Standard Association) FPMPMI™...
  • Page 6 STEP 2 continued Remove monitor pivot from slide bracket. page 6 of 17...
  • Page 7 STEP 2a For monitors with a 75mm VESA® FPMPMI™ hole pattern: Attach monitor directly to pivot. M4 x 10mm page 7 of 17...
  • Page 8 STEP 2b For monitors with a 100mm VESA® FPMPMI™ hole pattern: Attach 75 to 100mm adapter plate to pivot. #8-32 x 3/16" 3/32" (2.38mm) Attach monitor to adapter plate/pivot assembly. M4 x 10mm page 8 of 17...
  • Page 9 STEP 2c For monitors that are not compliant with VESA® FPMPMI™ hole pattern standards: contact your APW Wright-line customer service representative. page 9 of 17...
  • Page 10 STEP 3 Re-attach pivot (with monitor installed) to slide bracket. NOTE: Make sure that the curve on the back of the pivot wraps around the slide bracket. Do not overtighten the pivot knob. page 10 of 17...
  • Page 11 Optional Slide Bracket Mounting Locations The height of the monitor in relation to the slat wall can be changed according to need. This illustration shows the lowest and highest slide bracket positions and points out mounting holes. Note that the highest levels are achieved by mounting the slide bracket up-side-down (relative to orientation of product as it is shipped).
  • Page 12 NOTE: Use clips and ties to manage STEP 4 cables as needed according to your equipment configuration. Remove cable covers. Route cables as shown. Replace cable covers over "captured" cables. NOTE: Leave enough slack in cables to allow free movement. page 12 of 17...
  • Page 13 PFPDARM1 Adjustment Overview APW-wright line products are factory- set to provide positive pivot control Adjustment 1 and a smooth moving force throughout Monitor the entire range of motion. Side-to-Side To customize your installation, you will evaluate the operation of four...
  • Page 14 Adjustment 1 Monitor Side-to-Side 3/16" 1/2" Remove pivot cover. Use 1/2" socket wrench to hold Replace pivot cover. nut at bottom and 3/16" hex wrench at top to tighten or loosen, as needed. page 14 of 17...
  • Page 15 Adjustment 2 Side-to-Side Remove pivot covers. 3/16" 3/16" 1/2" 1/2" Use 1/2" socket wrench to hold nut at bottom and 3/16" hex wrench at top to tighten or loosen, as needed. (Replace pivot covers.) page 15 of 17...
  • Page 16 Adjustment 3 Monitor Up and Down 1/2" 1/2" Remove pivot povers. Use two 1/2" wrenches to tighten or loosen, as needed. (Replace pivot covers.) page 16 of 17...
  • Page 17 Adjustment 4 Monitor Portrait/Landscape NOTE: Since the portrait/landscape feature is factory-set, adjustment is usually unnecessary - proceed with these instructions only if the monitor rotates too easily or with great difficulty. Remove monitor from pivot (or from the 75 to 100mm adaptor plate, if used).
