Quickstart CloudGate
CloudGate – Quickstart: Installation / Configuration
Thank you for choosing our product. With this quickstart sheet, we would like to explain you how to
install and configure the CloudGate

1. Installing the SIM

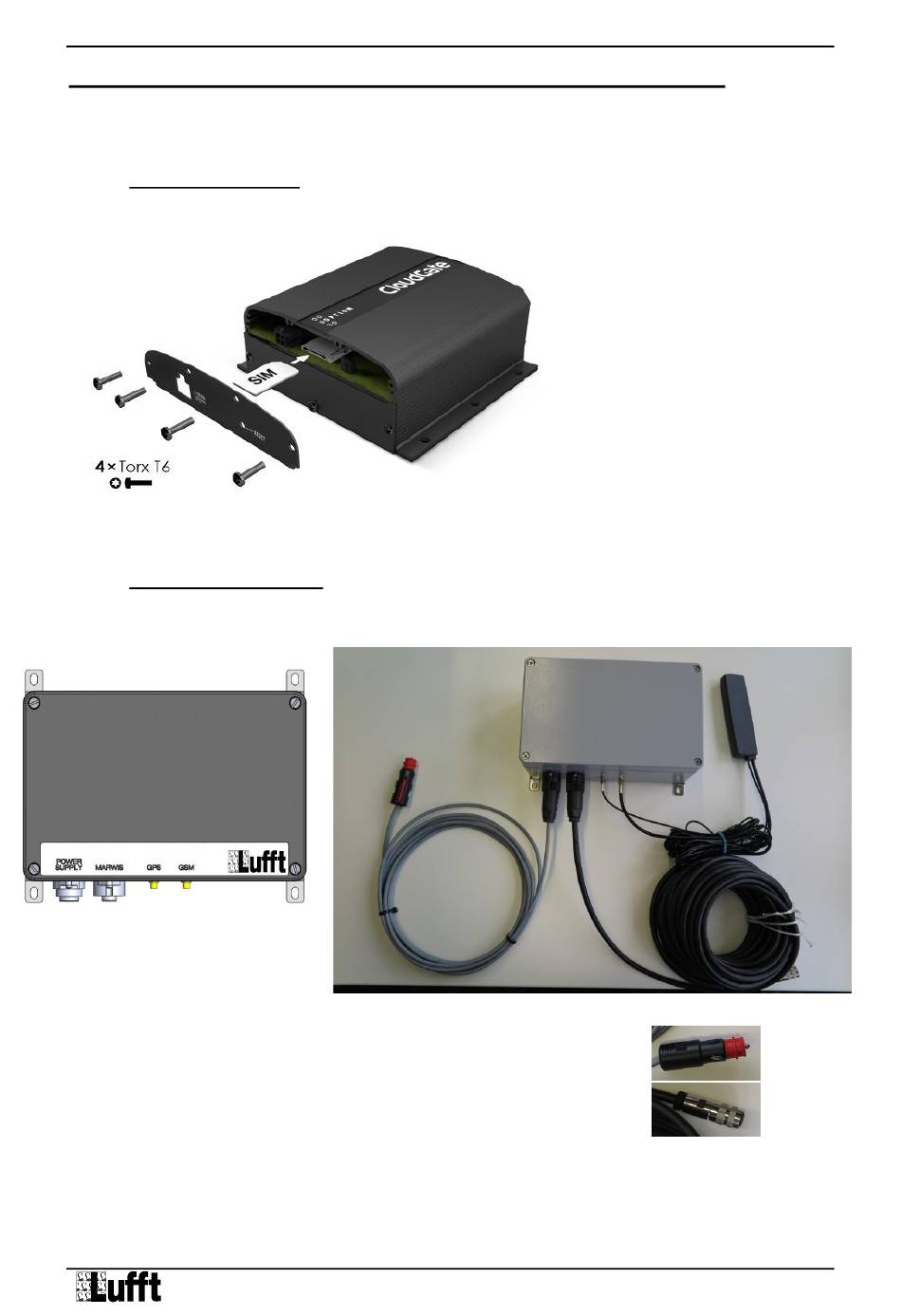

Open the CloudGate central unit box and insert the Sim card like shown below:
A Torx screwdriver T6 is needed to open the side cover! After the procedure please close the Cloud
Gate central unit box.

2. Installing the cables

Please connect all cables like shown on the picture with the central unit of the CloudGate:
Connect this connector with your cigarette lighter port in your vehicle:
Connect this connector with the MARWIS:
In addition the antenna of the Cloudgate must be fixed in the vehicle.
G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany
Status 10/2017
